Jason-class Tank Landing Ships

The Jason class medium landing ships were designed and constructed in Hellas to replace aging ex-USN ships from World War II. Operational requirements and the surrounding area with scattered islands requires new and speedy "armatagwga" for satisfaction of needs of the armed forces. This led to the decision for the construction of five ships constructed at the Greek Elefsina shipyards, on the one hand, for economic reasons, and to acquire experience in the design and construction of warships in Greece. The armatagwga replaced the old ships of American manufacturing, which the Navy had.

Specifications

Displacement (typical) 4,400 tons
Displacement (full load) 4,930 t
Dimensions 116 x 15.3 x 3.4 m
Propulsion 2 x Wartsila Nohab 16V25
x 3,680 kW Diesel
2 shafts
Maximum Speed 16 kts
Range
Sonar Suite n/a
Fire Control System TRS3220 Pollux, Vega CTH, Panda
ESM Suite
ECM Mk36 SRBOC
Air Radar 2D TRS3030 Triton
Surface Radar Type 1007 Furuno
Aviation 1 x AB212 ASW/EW
Weapon Systems 1 x OTO-Melara Compatto 76 mm/62 cal.
2 x Type 564 40 mm/70 cal.
2 x Mk20 Rh202 20 mm/90 cal.
Troops 310-1,200
Cargo 4 LCVP
310 Soldiers (1,200 for short distances)
20 Tanks
30 Vehicles
Crew 116-120
Number Name Commissioned
L173 Chios 05/30/1996

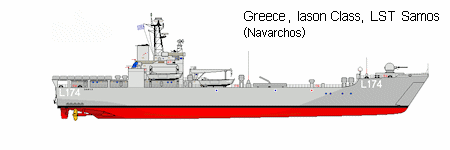

L174 Samos 05/20/1994
L175 Ikaria 10/06/1999
L176 Lesvos 02/25/1999
L177 Rodos 05/30/2000




Jason-class Tank Landing Ships
