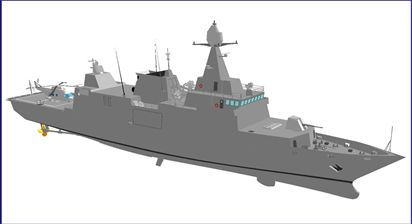

Fincantieri Multipurpose Corvette
| Length overall | 104.00 | m |
| Breadth | 13.90 | m |
| Draft | 3.80 | m |
| Displacement | abt. 2,400 | tonnes |
| Speed Max/Cruise/Economics | 30/18/14 | knots |
| Range at 14 kts | 5000 | NM |
| Endurance | >12 | days |
| Crew | 90 + 15 | |
| Helicopter | 10 tons | with hangar |
| Propulsion | CODAD-4 | MTU 20 V 1163 |
| Diesel Generators | 4 x 600 | kW |
| COMBAT SYSTEM CUSTOMIZED, ACCORDING TO SHIPS MISSION : | ||
| SURVEILLANCE S/S | ||
| C, X Band Radars | ||
| Optronic | ||
| EWS | ||
| Sonar | ||
| C&C | ||
| Open Architecture | ||
| Modular, based on reconfigurable MFCs | ||
| WEAPON S/S | ||
| Radar/Optronic FCS | ||
| Medium /small Caliber guns | ||
| SAM, SSM, | ||
| ECM | ||
| Decoy Launchers | ||
| INTEGRATED COMMUNICATION SYSTEM | ||
| Internal | ||
| External ( SAT, Link ) | ||
| INTEGRATED NAVITATION SYSTEM | ||
|
