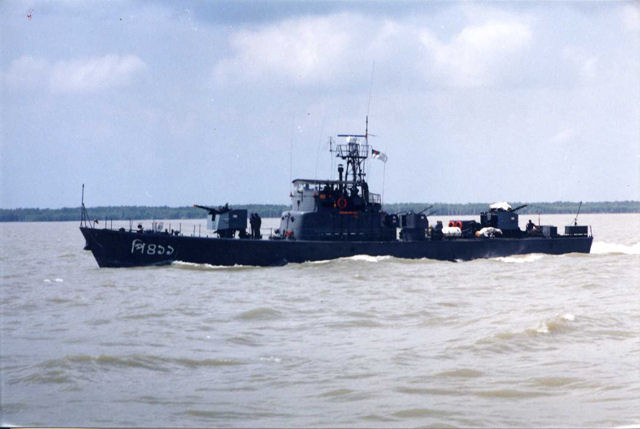

BNS Tawfiq - Fast Attack Craft (Shanghai II Type 062 II Class)
There is considerable disagrement among sources as to the number of vessels of this class active at various times. Haze Gray claimed as of 2001 that only three were in service, with "many sisters recently stricken". Another source claims four in service as of 2010. Both IISS and Combat Fleets maintain all seven remain in service.
Displacement, tons : 113 standard; 134 full loadDimensions, feet (meters) :
127.3 x 17.7. x 5.6 ( 38.8 x 5.4 x 1.7)
Main Machinery : 4 type M 50 diesels; 4,400 hp (m) (3.2 MW) sustained; 4 shaft
Speed, knots : 30 Range, miles 800 at16.5 kt
Complement : 36 ( 4 officers)
Guns : 4 37 mm /63 ( 2 (twin); 180 rds /min
to 8.5 km (4.6 n miles ; weight of shell 1.4 kg.
4-25 mm/ 80 ( 2 twin ); 270 rds / min to 3 km ( 1.6
n miles ) anti aircraft .
Depth charge : 2 throwers ; 8 charges
Mines : 10 can be carried.
Radar: Surface search ; Skin / plot Head; I
band.
Sonars : Hull- mounted ; active short range
frequency some reported to have VDS.
Name | Pennant Number | Class | Type | Origin | Notes |
---|---|---|---|---|---|
BNS Shaheed Daulat | P 411 | Patrol Squadron 41 | |||
BNS Shaheed Farid | P 412 | Patrol Squadron 41 | |||
BNS Shahhed Mohibullah | P 413 | Patrol Squadron 41 | |||
BNS Shaheed Akhtaruddin | P 414 | Patrol Squadron 41 | |||
BNS Tawfiq | P 612 | Patrol Squadron 41 | |||
BNS Tamjeed | P 613 | Patrol Squadron 41 | |||
BNS Tanveer | P 614 | Patrol Squadron 41 |
