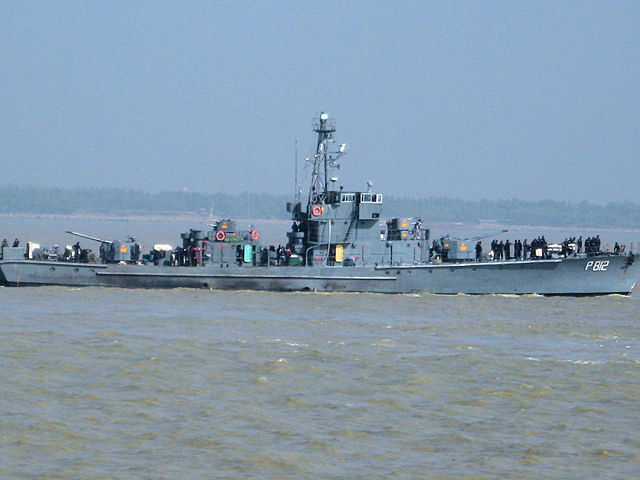

Nirbhoy ('Hainan' class) large patrol boat

Large Patrol Craft (Type 037)


Displacement, tons : 375 standard; 392 full load
Dimensions, feet (meters): 192.8 x 23.6 x 7.2 (58.8 x7.2 x 2.2)
Main Machinery : 4 PCR / Kolomna Type 9-D-8  diesels; 4,000 hp (m) (2.94 MW) sustained; 4 shafts
Speed, knots : 30.5 Range, miles; 1,300 at 15 kt
Complement : 70
Guns: 4 China 57 mm / 70 (2 twin); 120 rds / min to 12 km ( 6.5 n miles); weight of shell 6.31 kg.
A/S mortars: 4 RBU 1200 fixed 5-barrelled launchers; range 1,200 m; warhead 34 kg.
Depth charges: 2 racks 2 throwers. 18 DCs.
Mines; fitted with rails for 12 mines.
Radars: Surface search: pot Head; I-band
IFF: High pole
Sonars: Tamir II;hull-mounted; short-range attack; high frequency.
Comment
: Transferred from China commissioned 1 December 1985. From part of Escort squadron 81at chittagong. Some previous confusion over of this class. A second of class damaged beyond repair in 1995.
Concept/Program: Chinese-built; one sister wrecked.


Number	Name			Year	FLT	Homeport	Notes
P812	Nirbhoy			1985	IO

Nirbhoy ('Hainan' class) large patrol boat
