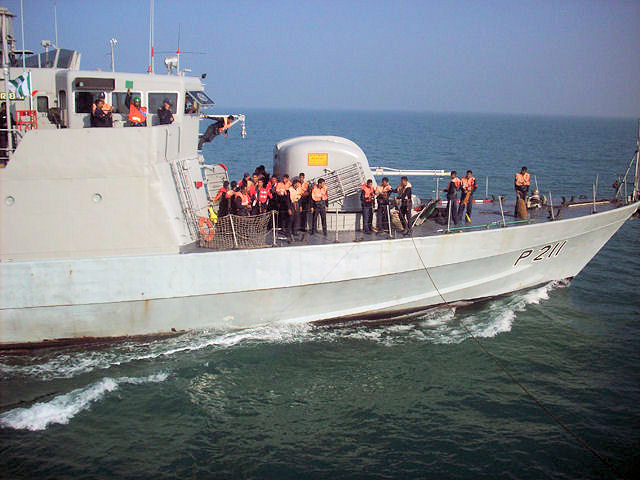

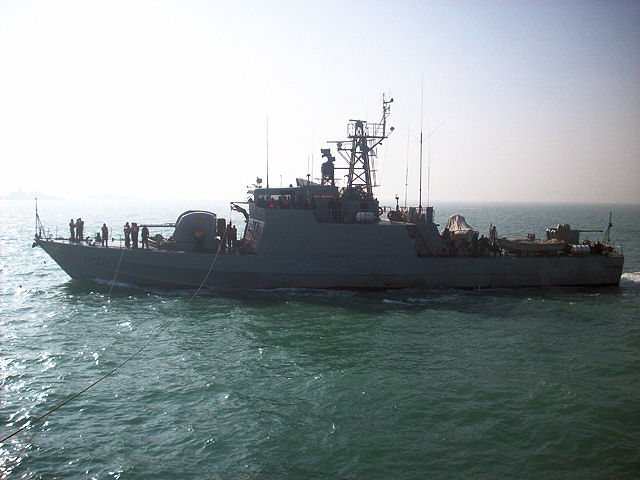

BNS Meghna - Large Coastal Patrol Craft
Displacement, tons : 410 full load
Dimensions, feet (meters):
152.5x 24.6 x 6.6 ( 46.5x 7.5x 2)
Main Machinery : 2 Paxman
valenta 12CM diesels; 5,000 hp(3.73 MW)sustained; 2
shafts
Speed, knots : 20 Range, miles 2,000 at16 kt
Complement : 47 ( 3 officers)
Guns : 1 Bofors 57 mm/ 70Mk 1:200 rds/min to
17 km (9.3 n miles); weight of shell 2.4 kg.
1 Bofors 40 mm / 70; 300rds/min to 12km (6.5 n
miles) weight of shell 0.96 kg.
2-7.62 mm MGs: launchers for illuminants on
the 57 mm gun.
Weapons control : Selenia NA 18 B optronic
system.
Radar: Surface search: Decca 1229; I-band.
| Name | Pennant Number | Class | Type | Origin |
|---|---|---|---|---|
| BNS Meghna | P 211 | Meghna | Patrol boat | |
| BNS Jamuna | P 212 | Meghna | Patrol boat |
|
