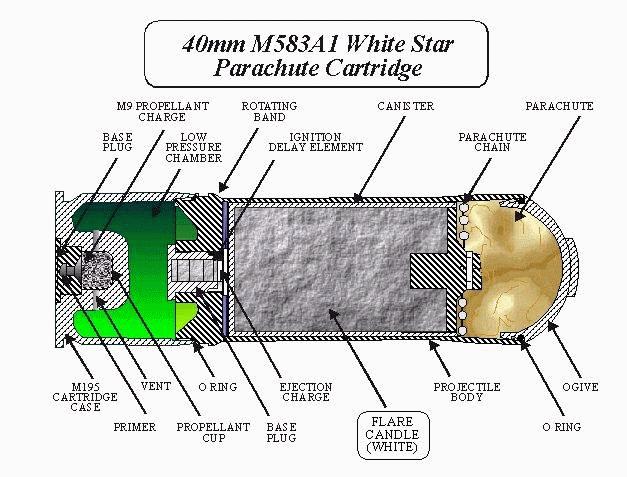

M583A1, 40mm Star parachute round

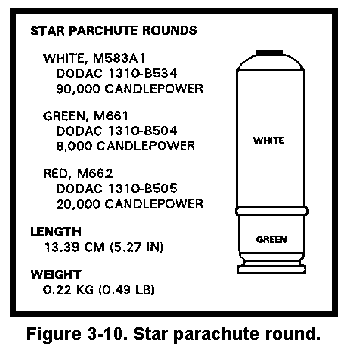

This round is white impact or bar alloy aluminum with black markings. It is used for illumination and signals and is lighter and more accurate than comparable hand-held signal rounds (Figure 3-10). The parachute attached to the round deploys upon ejection to lower the candle at 7 feet per second. The candle burns for about 40 seconds.
|
