GPS/MCS PLATE

MILES II Radio Control Device
 Table of Contents
Combat Vehicle Kill Indicator

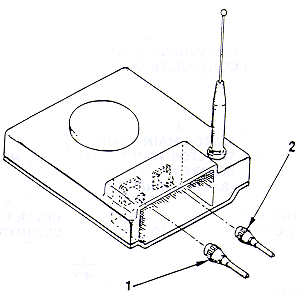

img47.gif - 11.56 K
1. Connect GPS ANT. cable to J1 on antenna plate.
2. Connect MCS ANT. cable to J2 on antenna plate.

NOTE: Insure antennas have a clear view of sky, GPS only works internally.

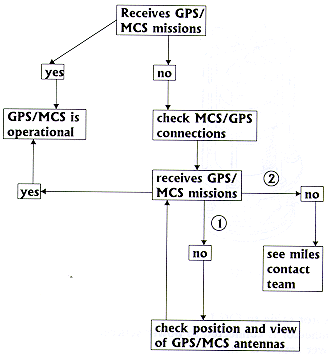

TROUBLESHOOT GPS/MCS PLATE

img48.gif - 16.31 K
