APPENDIX O

PAVEMENT CLASSIFICATION NUMBER (PCN) GRAPHS

Figures O-1 through O-43 are used in determining the PCN values for rigid and flexible pavements, and can be used in deter mining the ACN for selected aircraft as listed below:

Aircraft

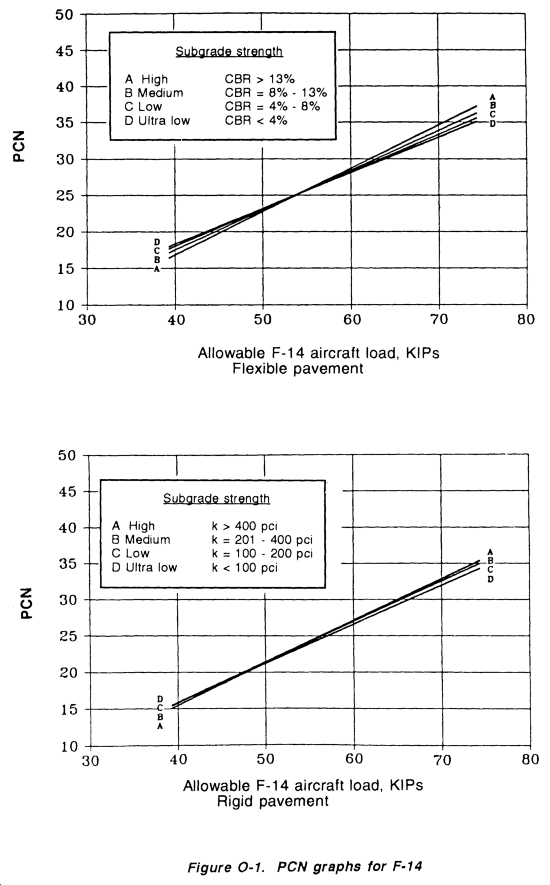

F-14

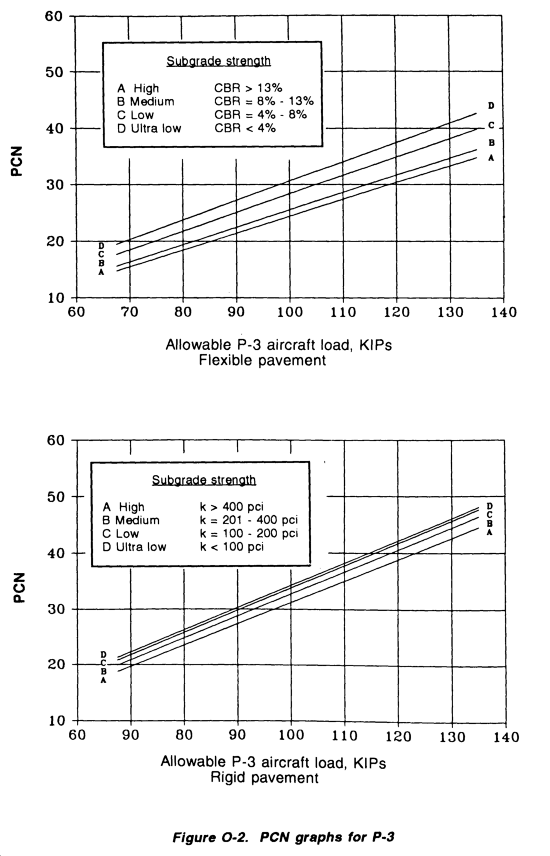

P-3

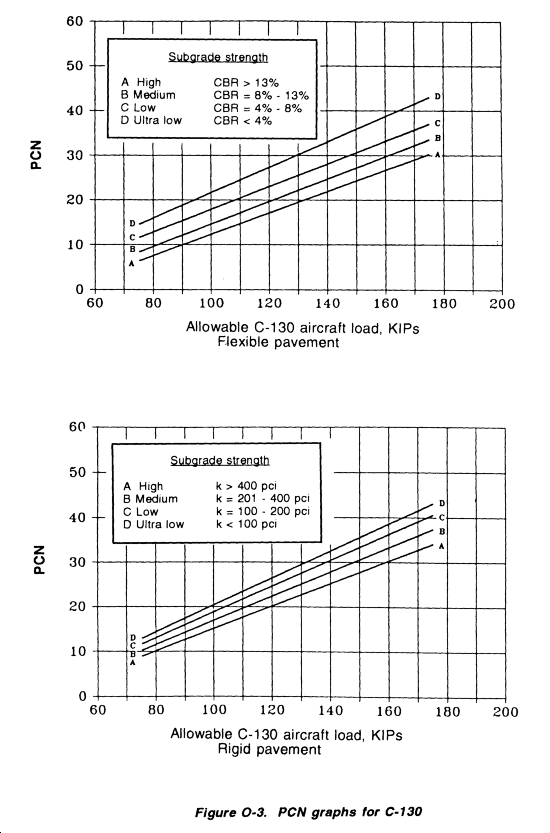

C-130

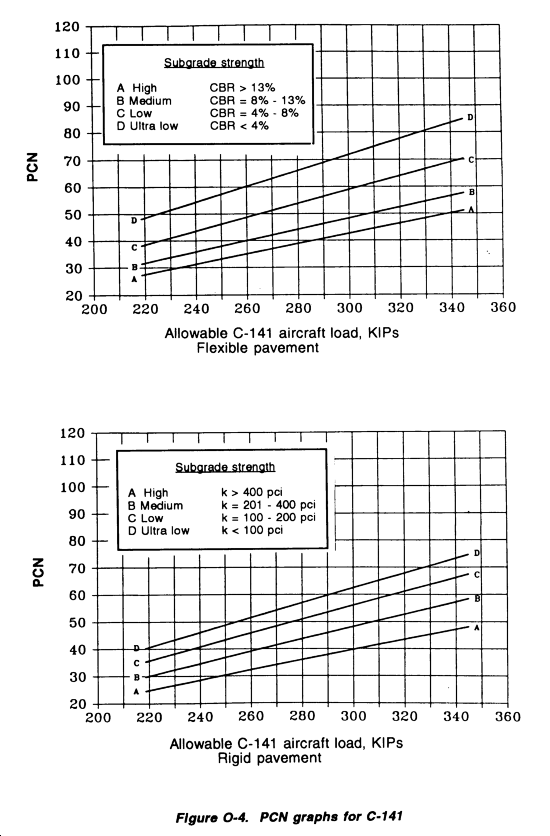

C-141

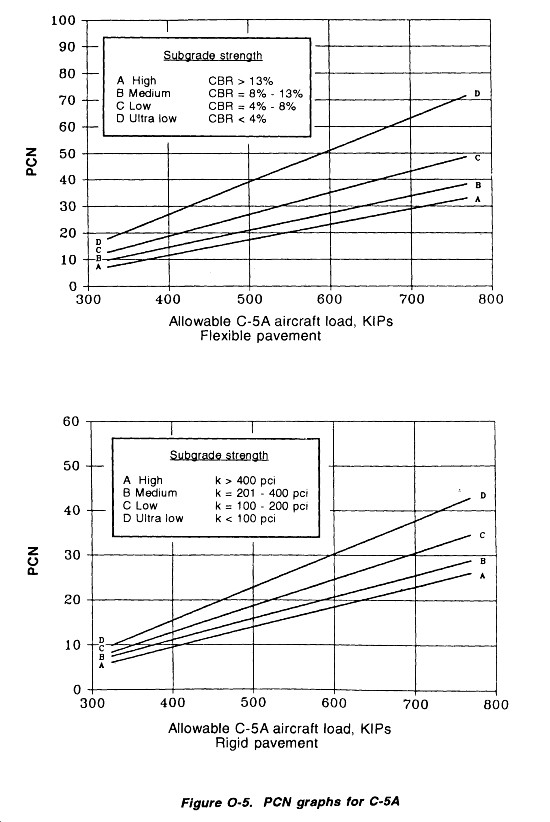

C-5A

C-123

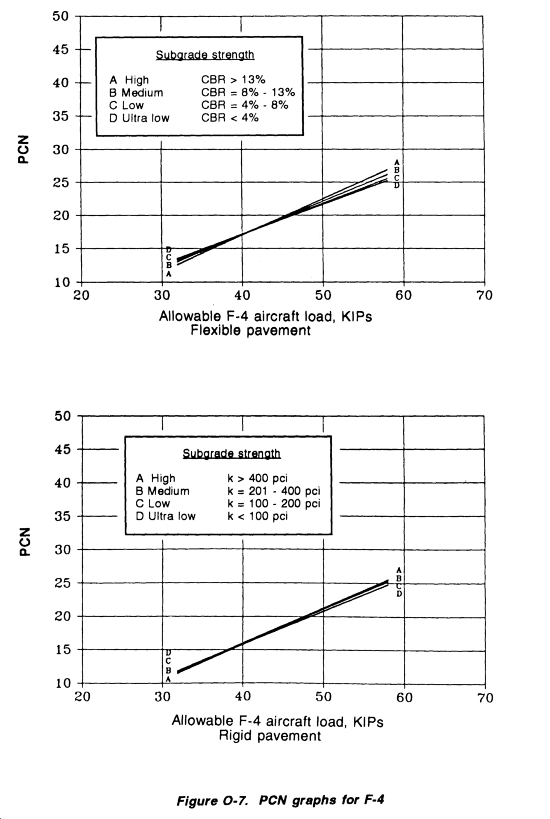

F-4

F-111

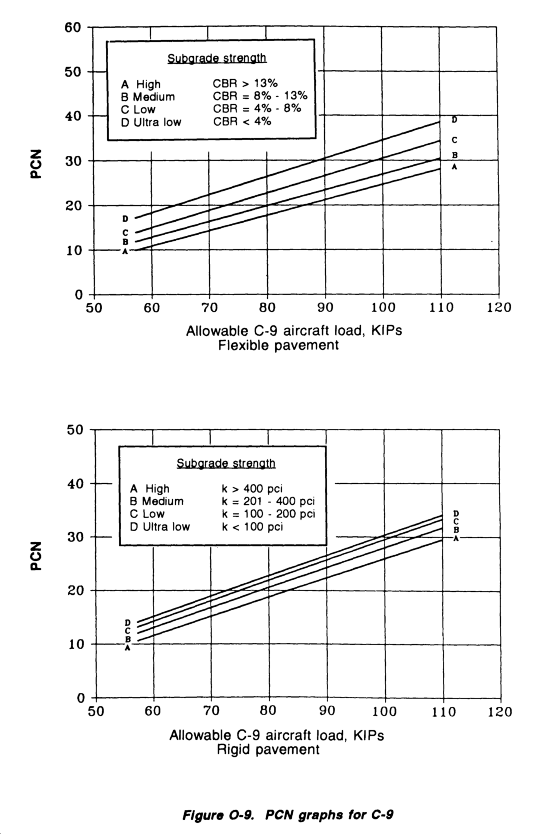

C-9

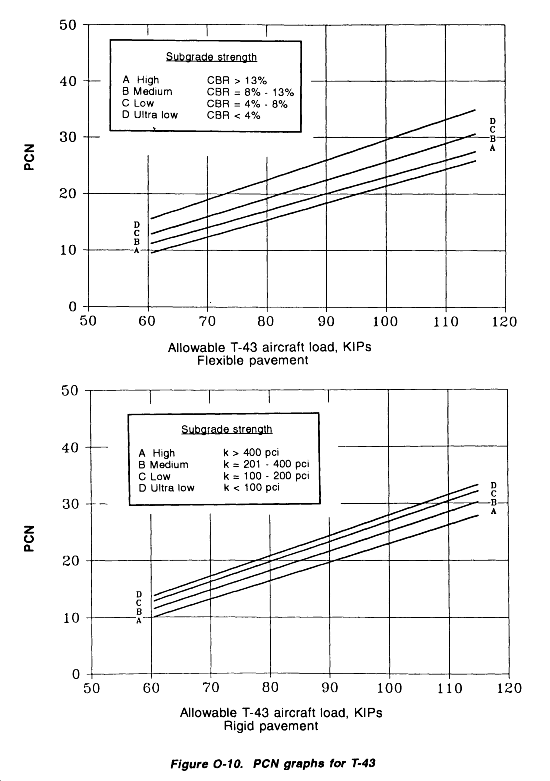

T-43

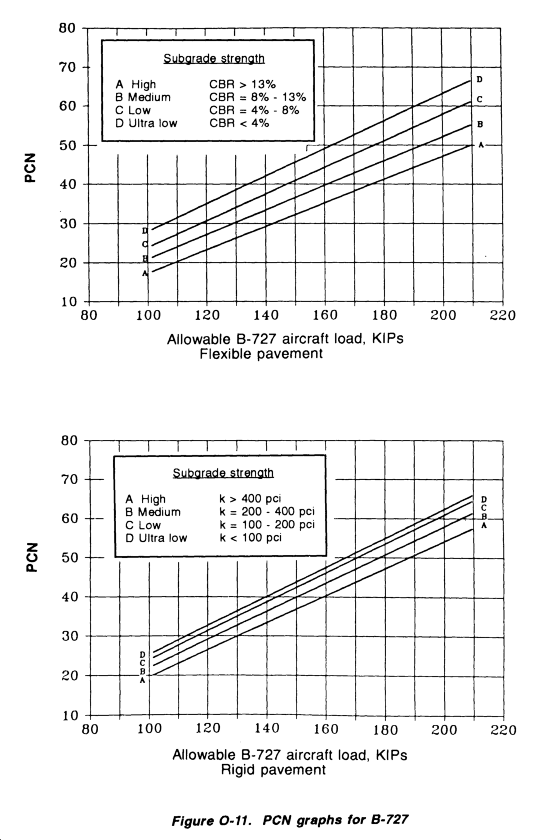

B-727

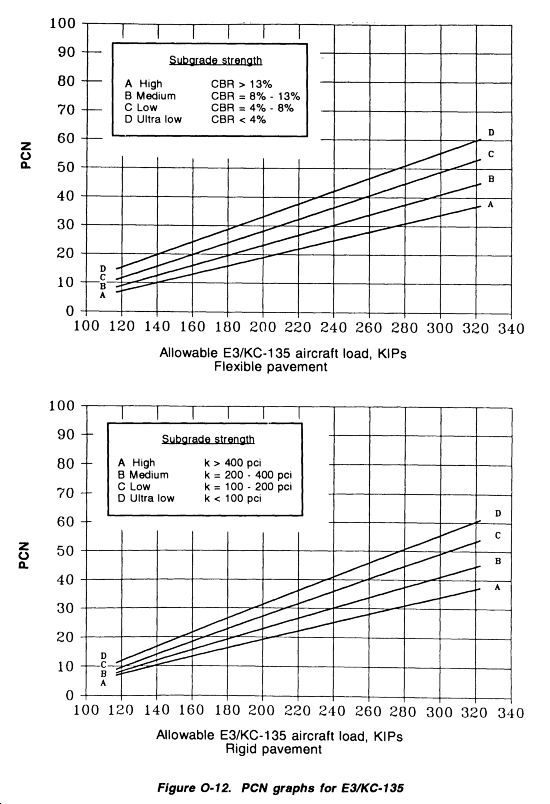

E3/KC-135

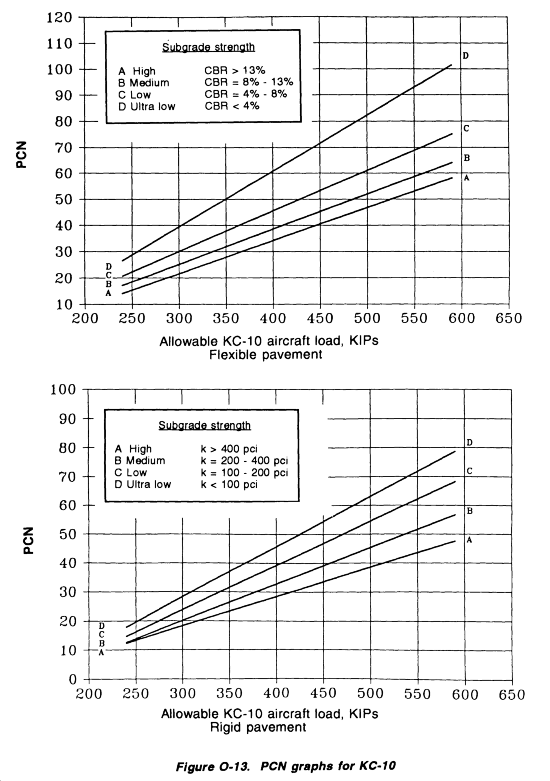

KC-10

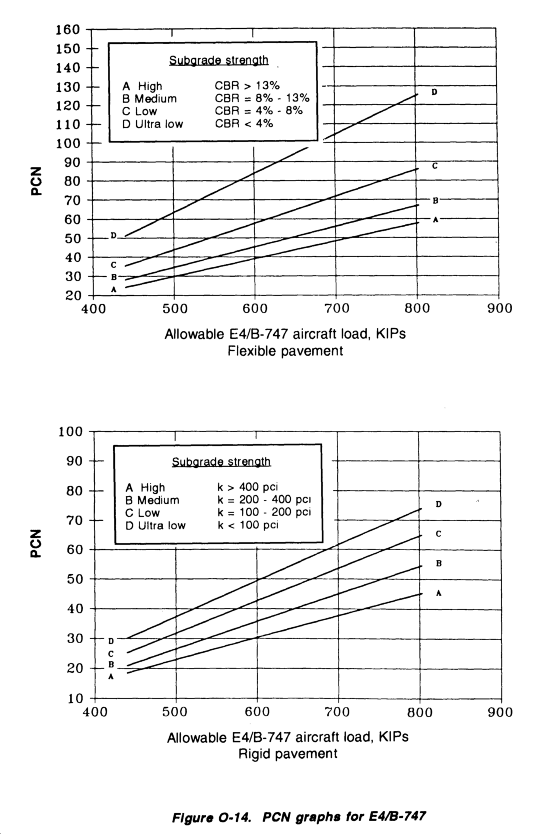

B-E4/747

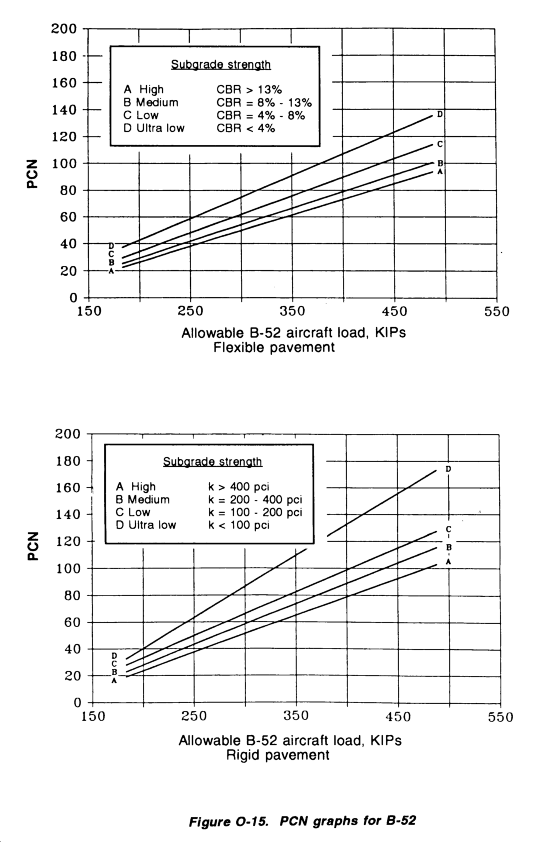

B-52

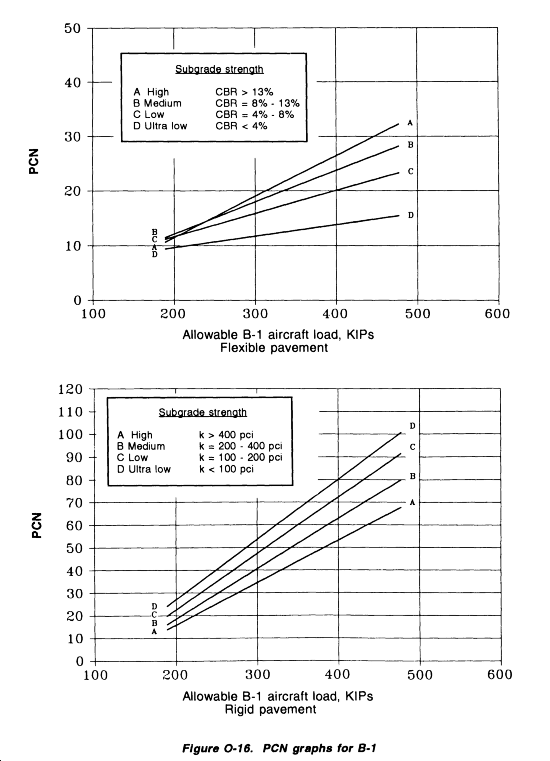

B-1

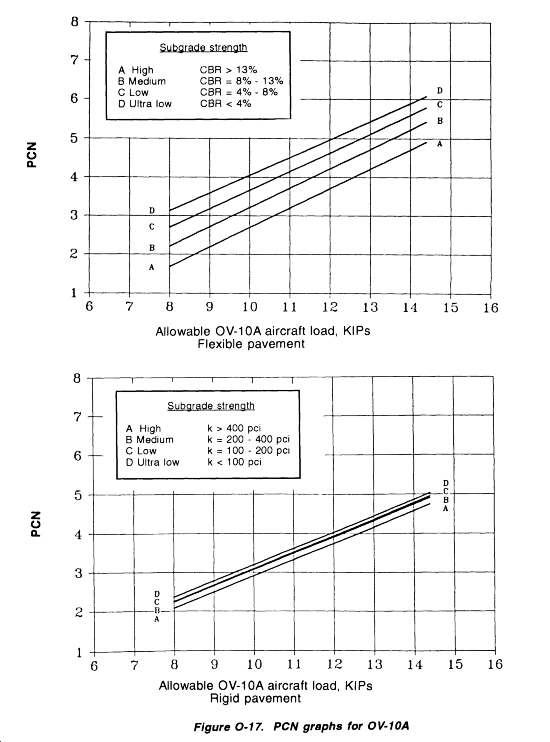

OV-10A

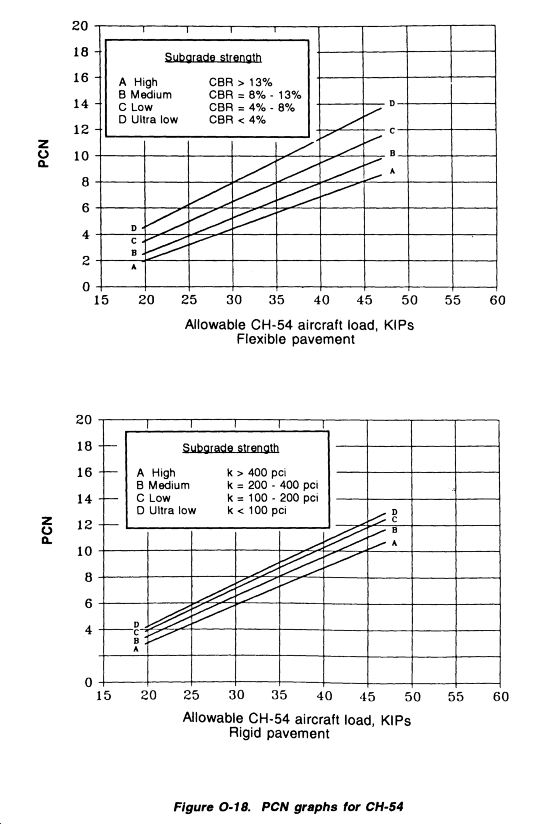

CH-54

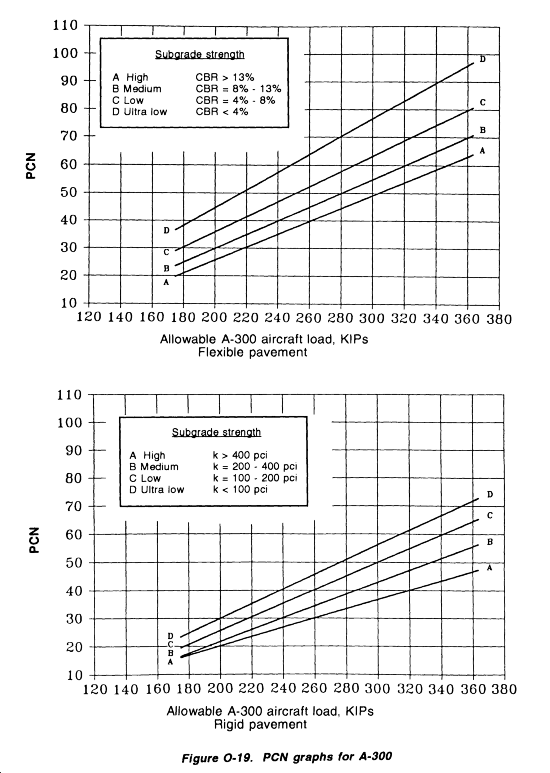

A-300

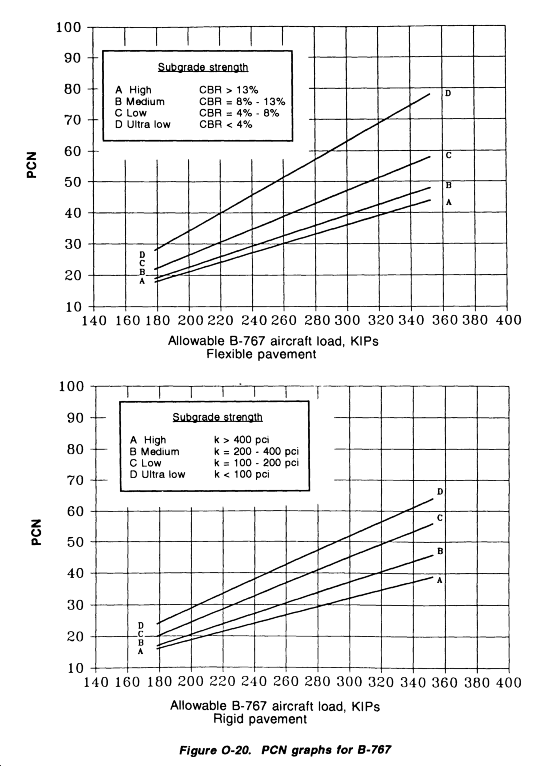

B-767

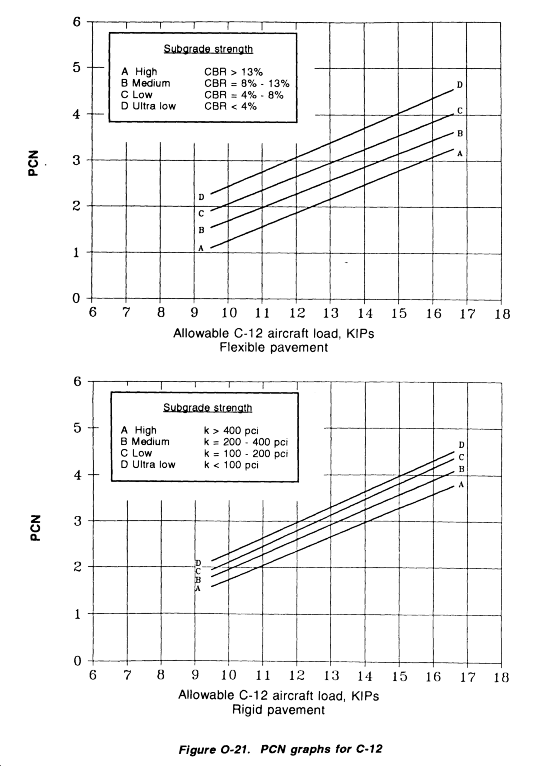

C-12

C-17A

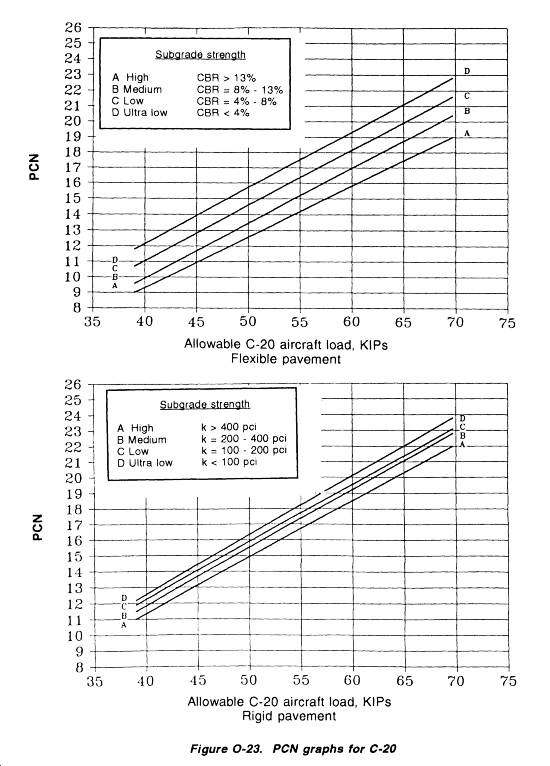

C-20

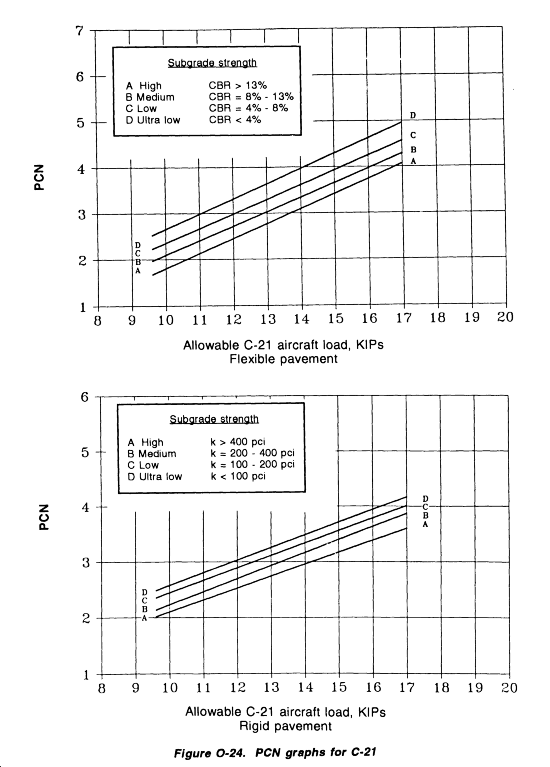

C-21

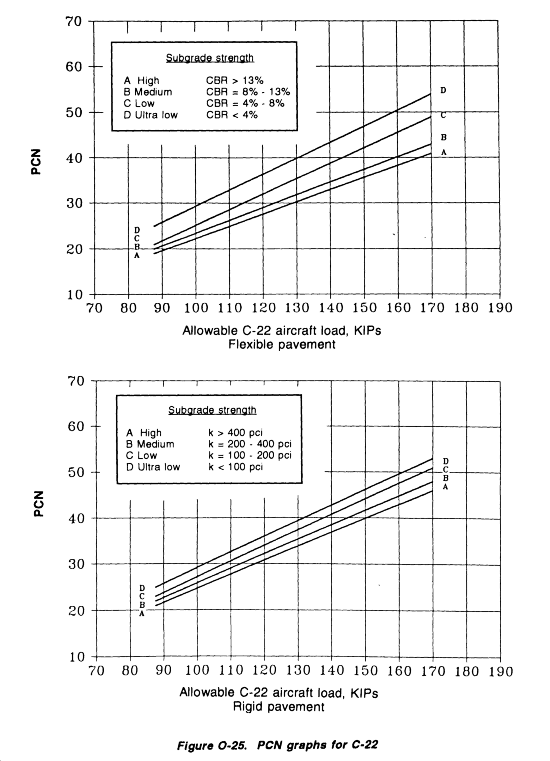

C-22

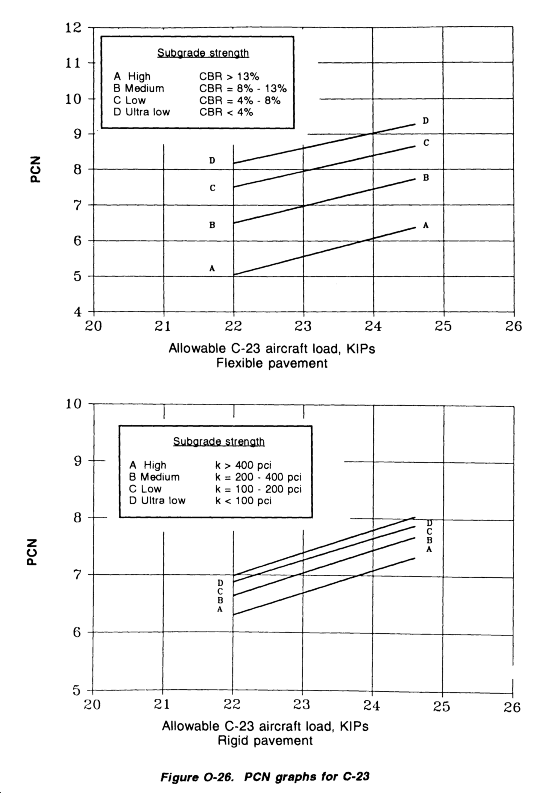

C-23

C-137

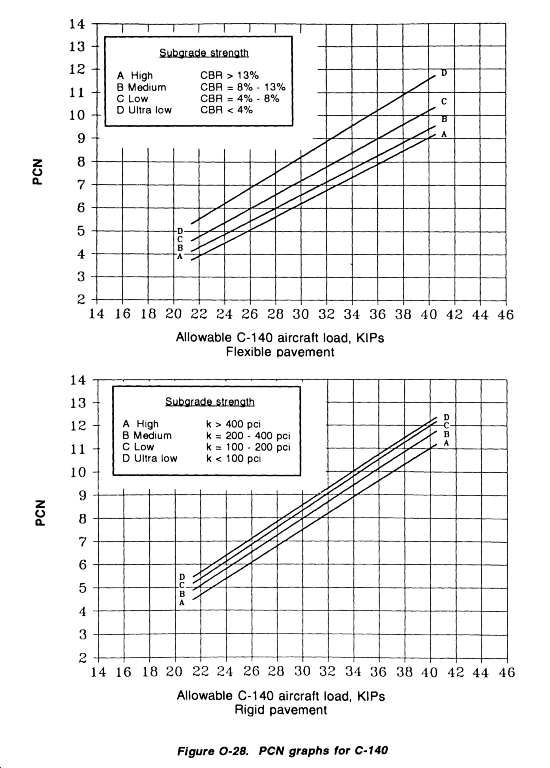

C-140

SR-71A

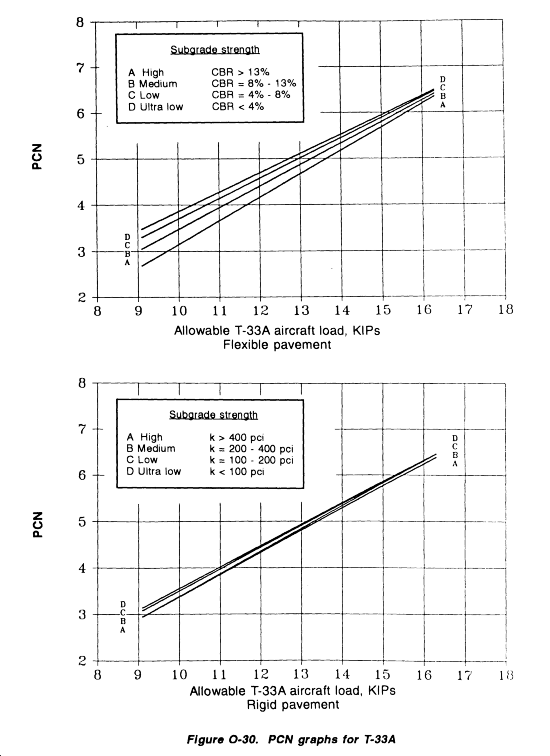

T-33A

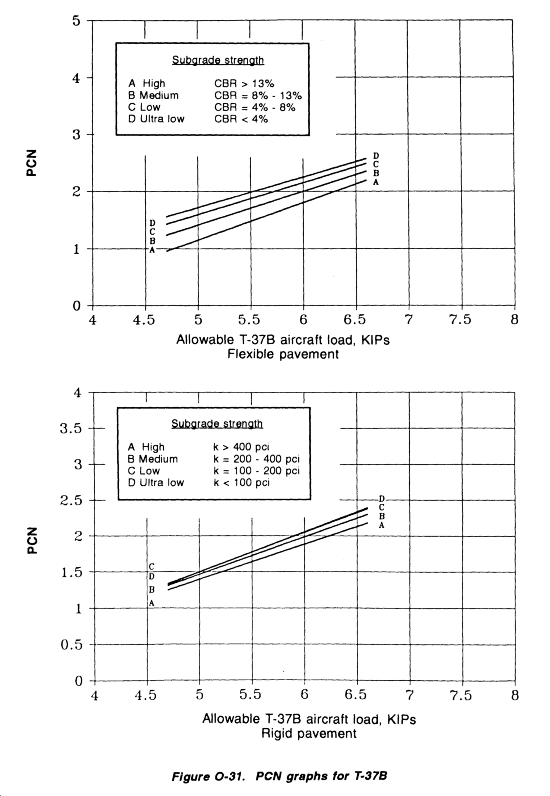

T-37B

T-38A

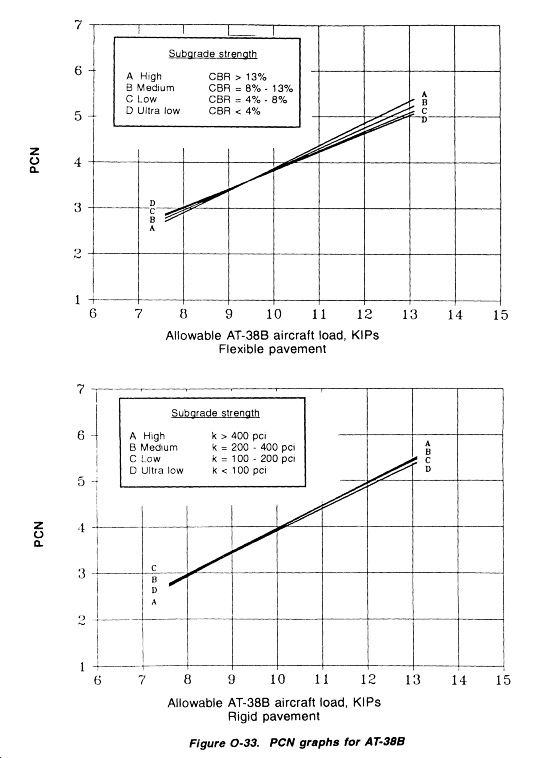

T-38B

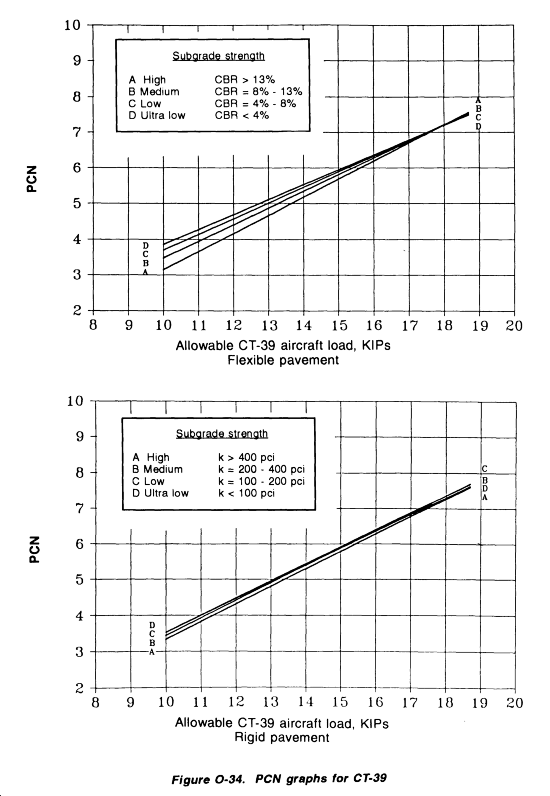

CT-39

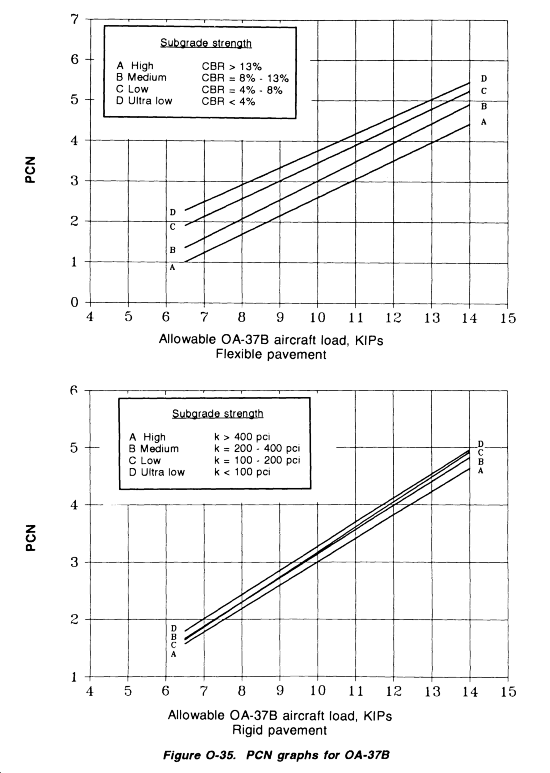

OA-37B

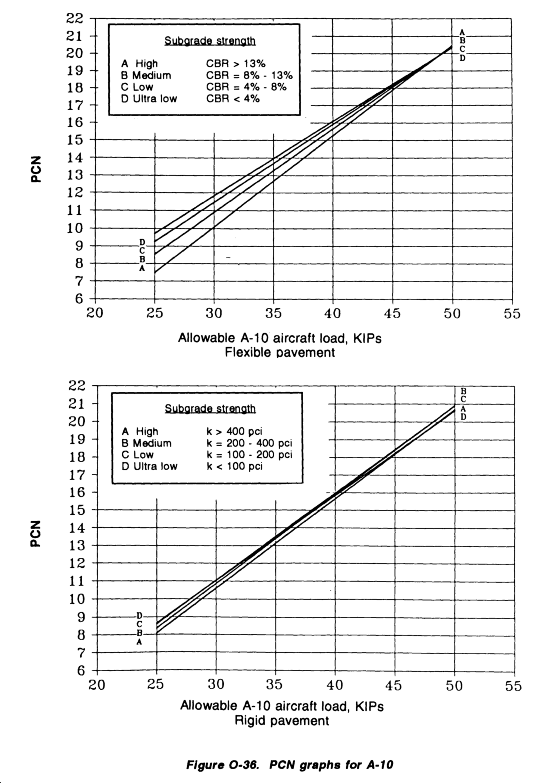

A-10

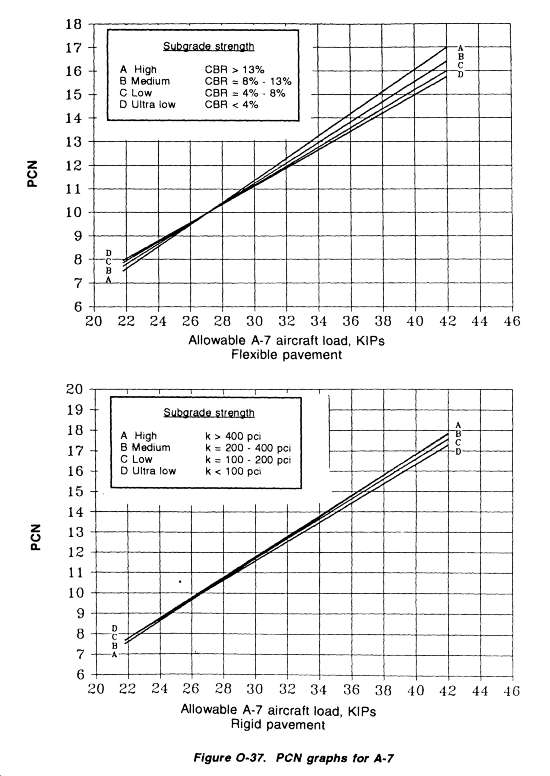

A-7

F-5

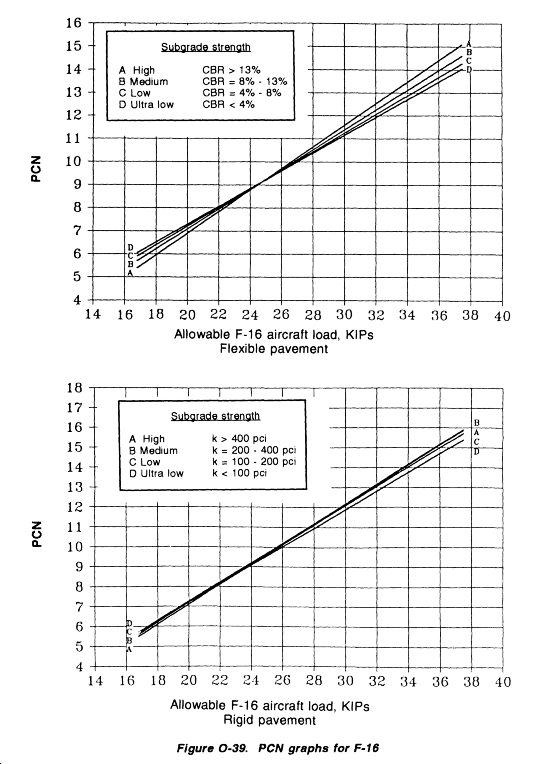

F-16

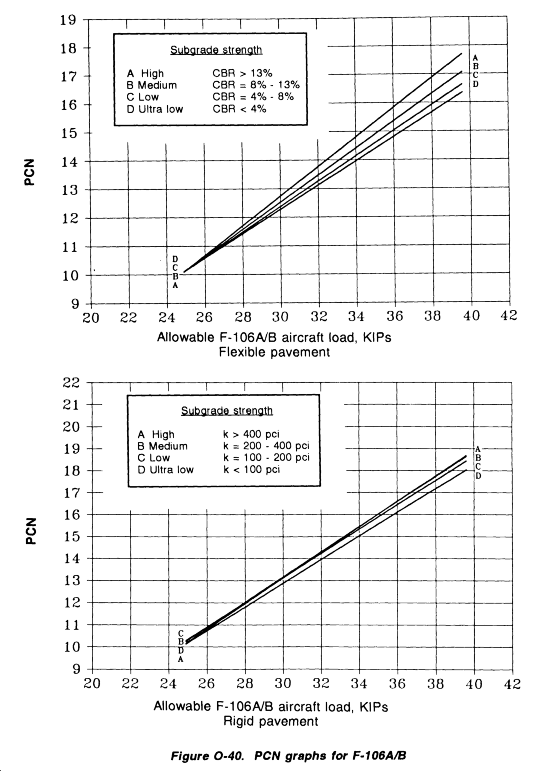

F-106A/B

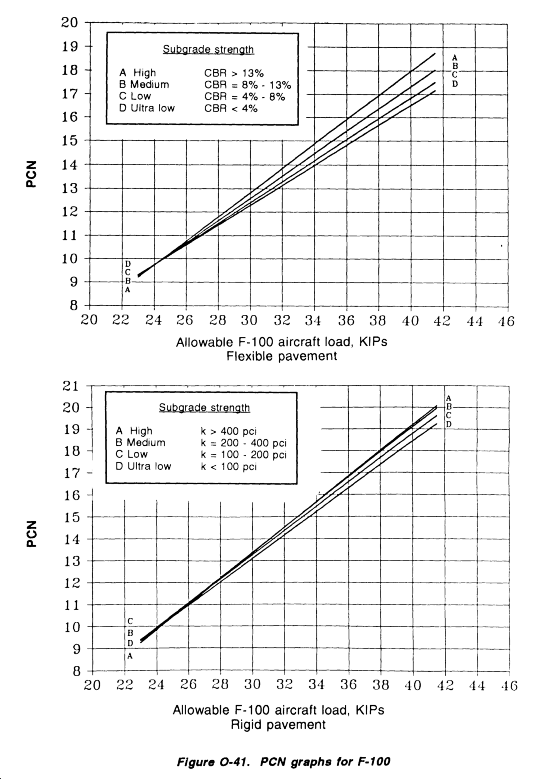

F-100

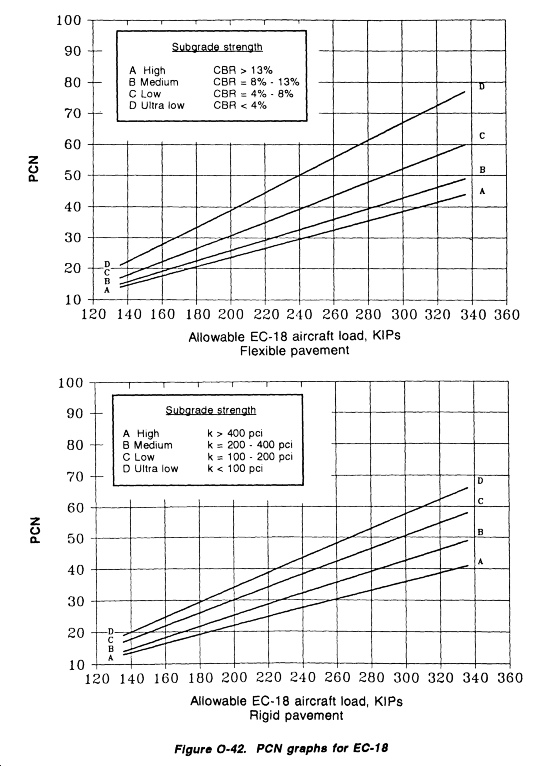

EC-18

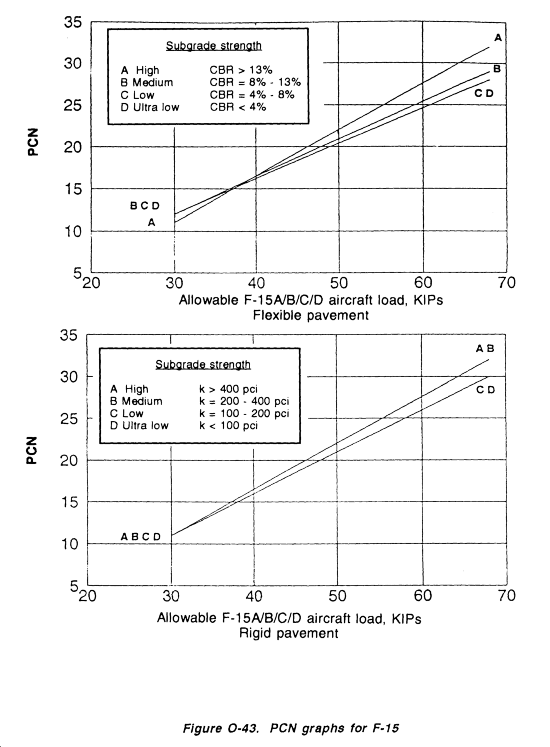

F-15
