MGB BUILDING, BOOM, AND DELAUNCH TABLES

This appendix provides the MGB user with a complete set of building, boom, and delaunch tables required to construct/disassemble any length of MGB on the various types of sites that may be encountered. It is limited to the bridge lengths that can be constructed with US Army MGB sets. It does not provide instructions for MGBs constructed on piers or on floating supports.

It is strongly advised that only experienced users attempt to use this appendix. Personnel new to the MGB must use TM 5-5420-212-12 for MGB and TM 5-5420-212-12-1 for MGB with Link Reinforcement Set.

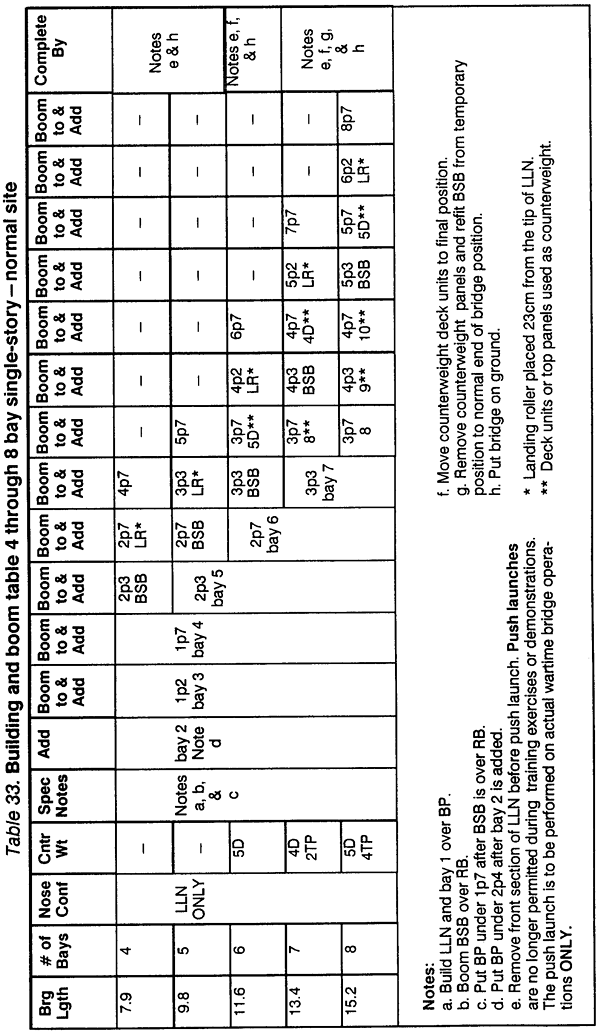

Table 33. Building and boom table 4 through 8 bay single-story -- normal site

Table 34. Delaunch table 4 through 8 bay single-story -- normal site

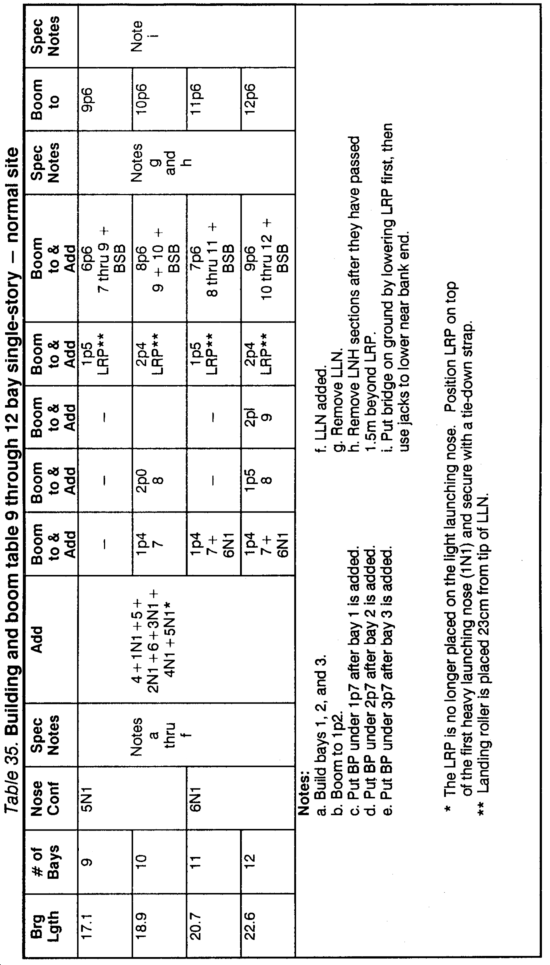

Table 35. Building and boom table 9 through 12 bay single-story -- normal site

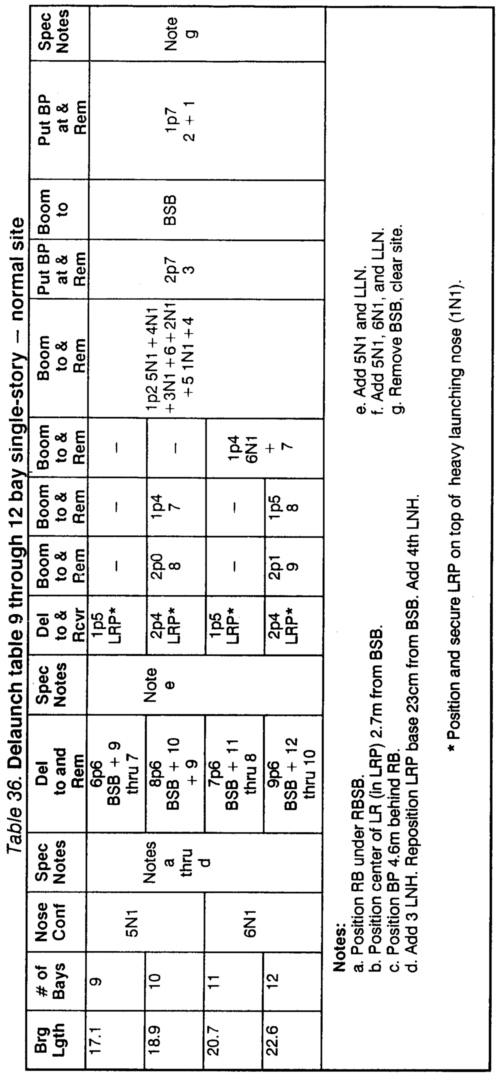

Table 36. Delaunch table 9 through 12 bay single-story -- normal site

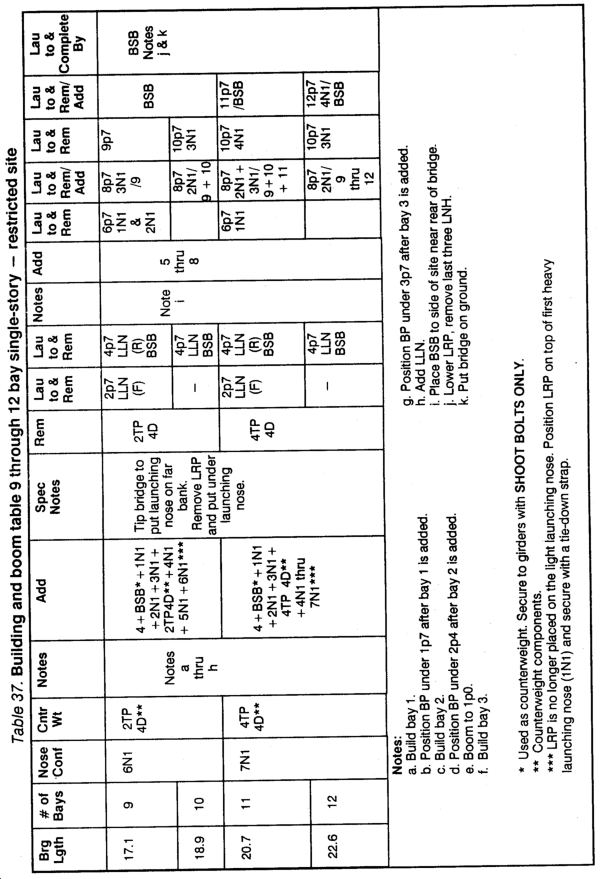

Table 37. Building and boom table 9 through 12 bay single-story -- restricted site

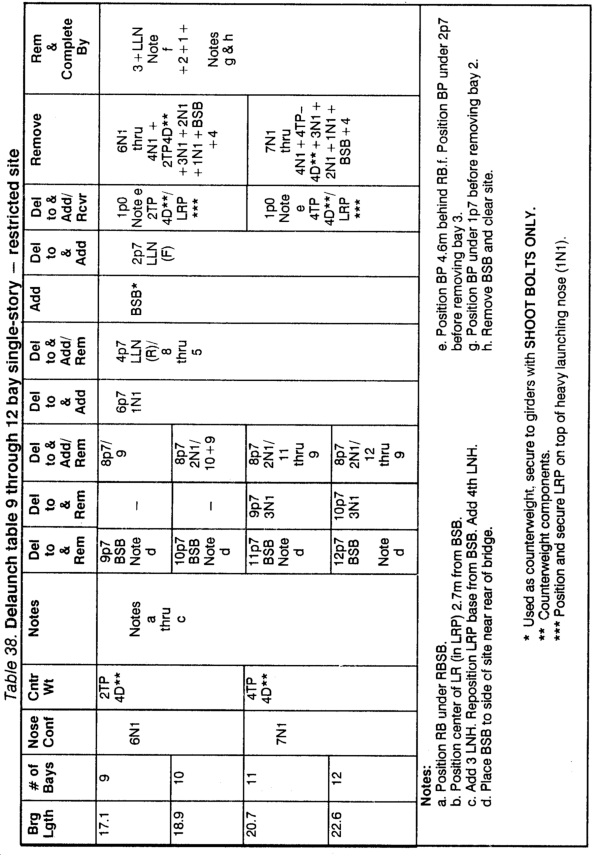

Table 38. Delaunch table 9 through 12 bay single-story -- restricted site

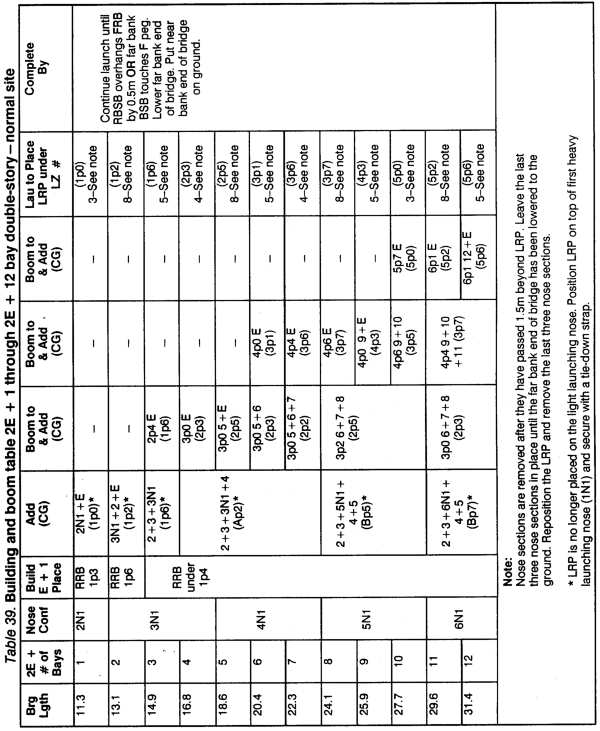

Table 39. Building and boom table 2E + 1 through 2E + 12 bay double-story -- normal site

Table 40. Delaunch table 2E + 1 through 2E + 12 bay double-story -- normal site -- near bank

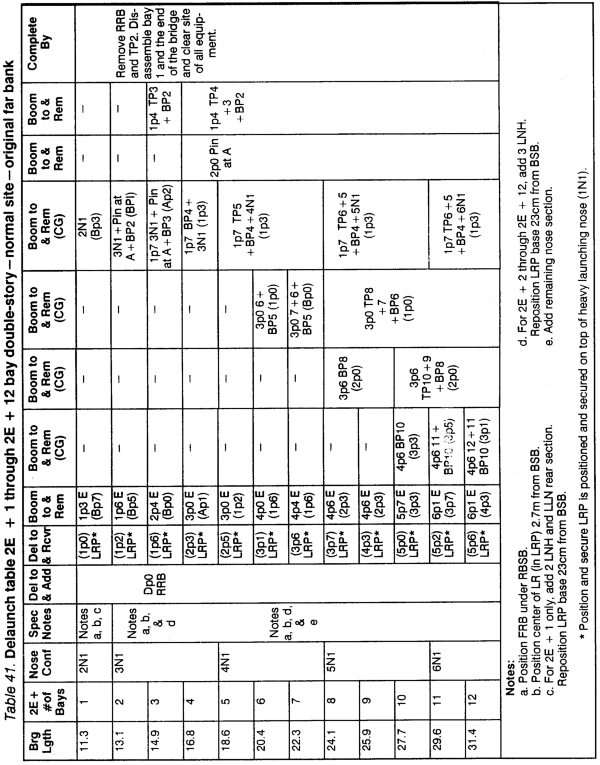

Table 41. Delaunch table 2E + 1 through 2E + 12 bay double-story -- normal site -- original far bank

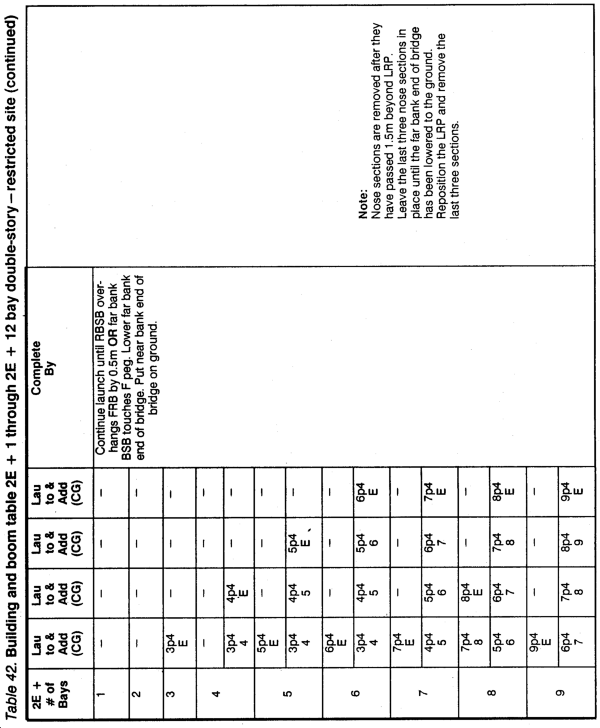

Table 42. Building and boom table 2E + 1 through 2E + 12 bay double-story -- restricted site

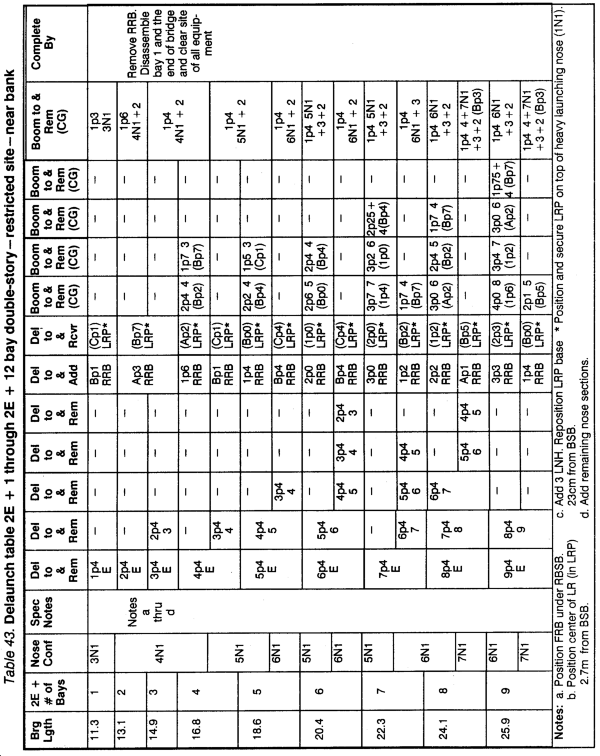

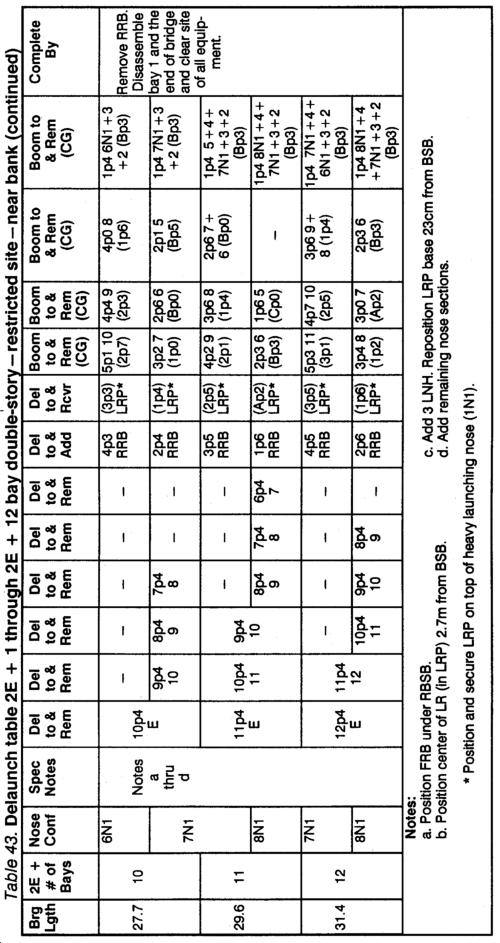

Table 43. Delaunch table 2E + 1 through 2E + 12 bay double-story -- restricted site -- near bank

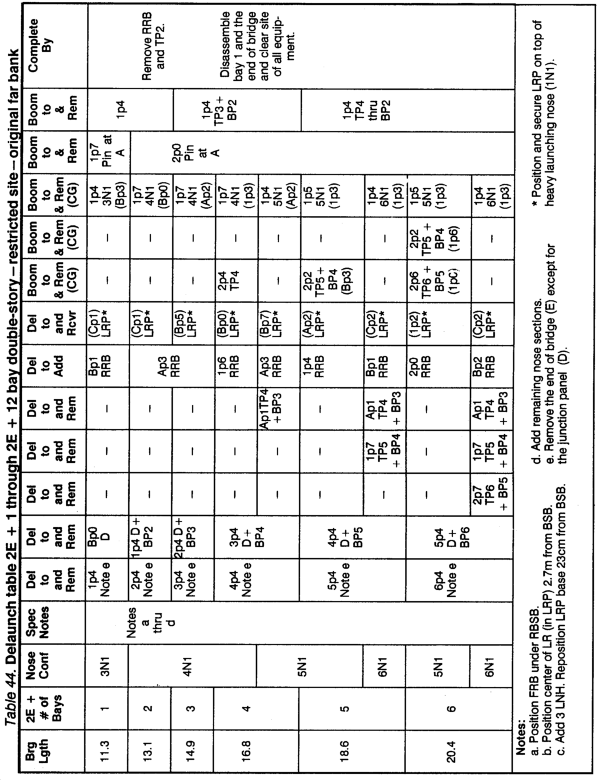

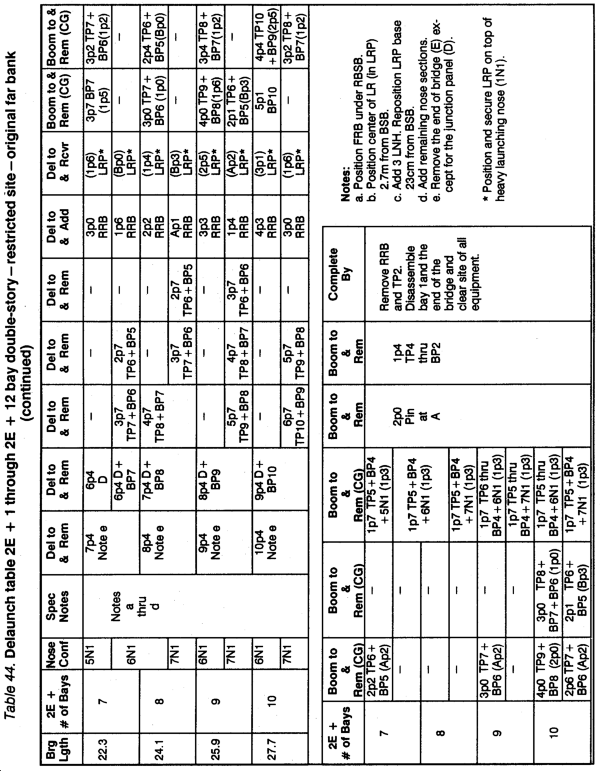

Table 44. Delaunch table 2E + 1 through 2E + 12 bay double-story -- restricted site -- original far bank

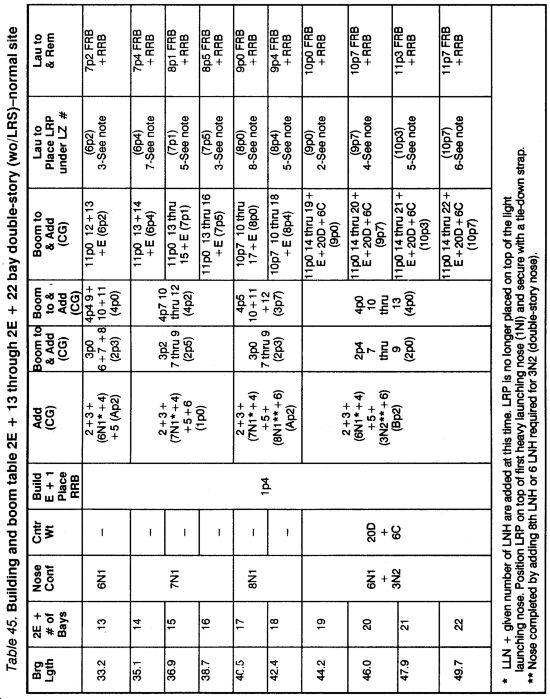

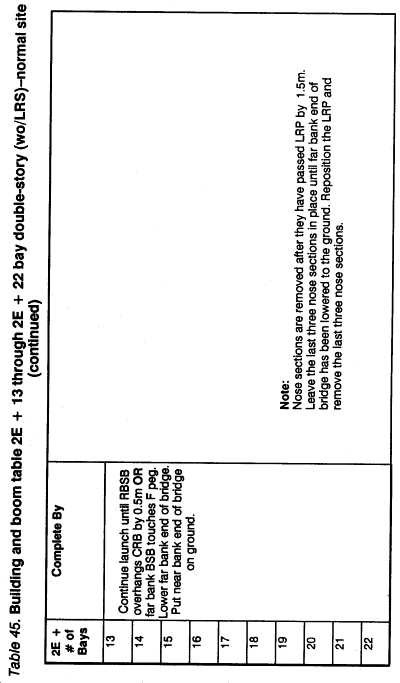

Table 45. Building and boom table 2E + 13 through 2E + 22 bay double-story (wo/LRS) -- normal site

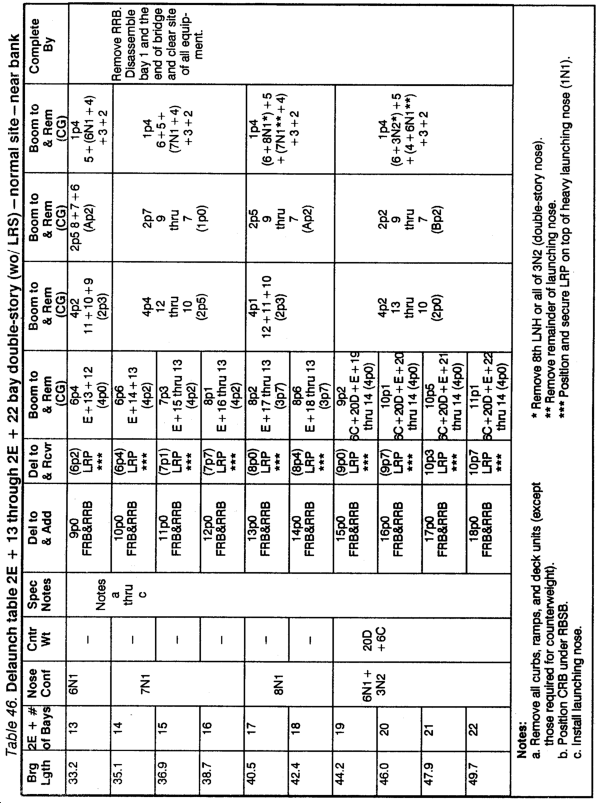

Table 46. Delaunch table 2E + 13 through 2E + 22 bay double-story (wo/LRS) -- normal site -- near bank

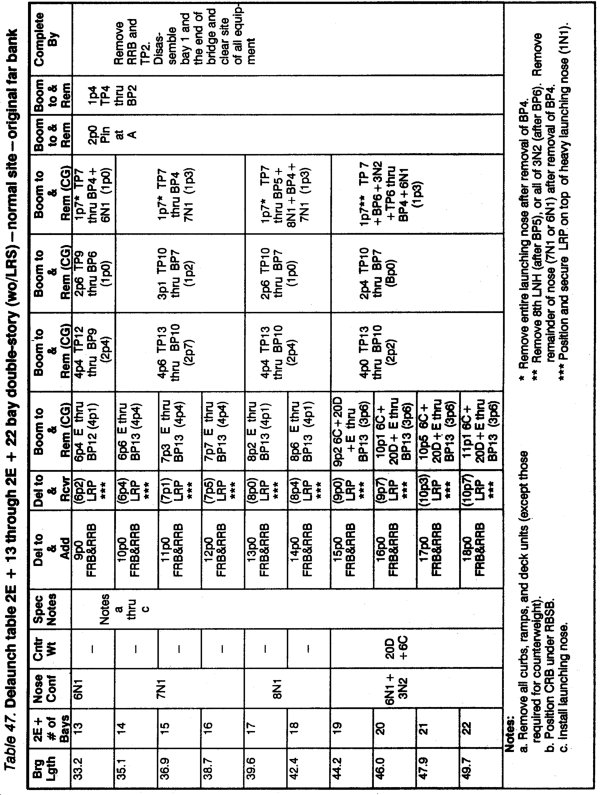

Table 47. Delaunch table 2E + 13 through 2E + 22 bay double-story (wo/LRS) -- normal site -- original far bank

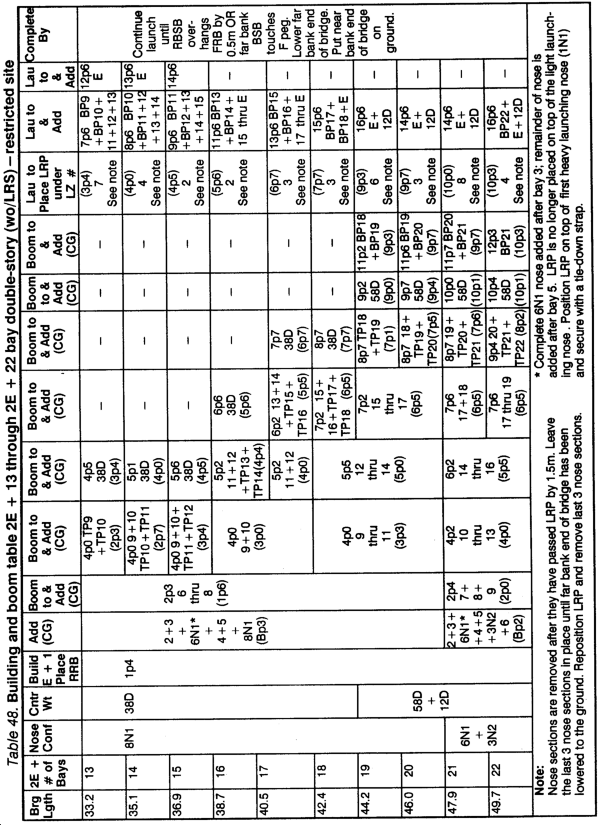

Table 48. Building and boom table 2E + 13 through 2E + 22 bay double-story (wo/LRS) -- restricted site

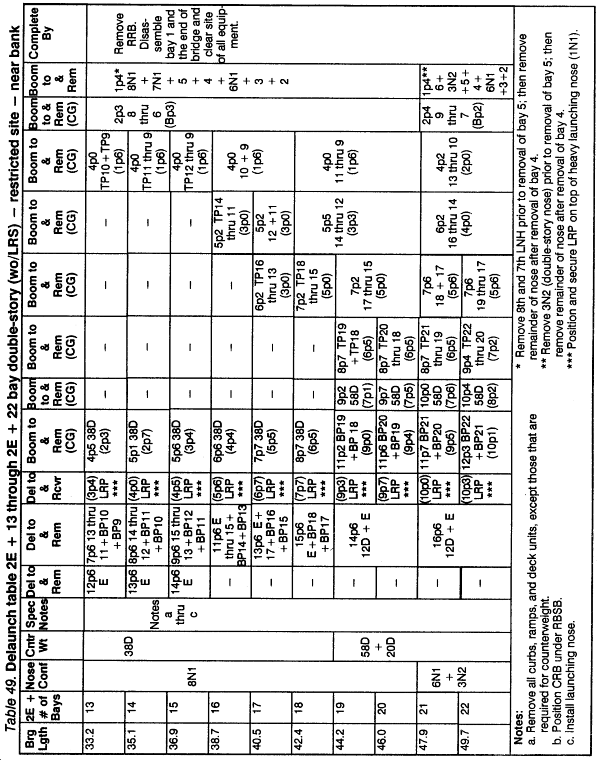

Table 49. Delaunch table 2E + 13 through 2E + 22 bay double-story (wo/LRS) -- restricted site -- near bank

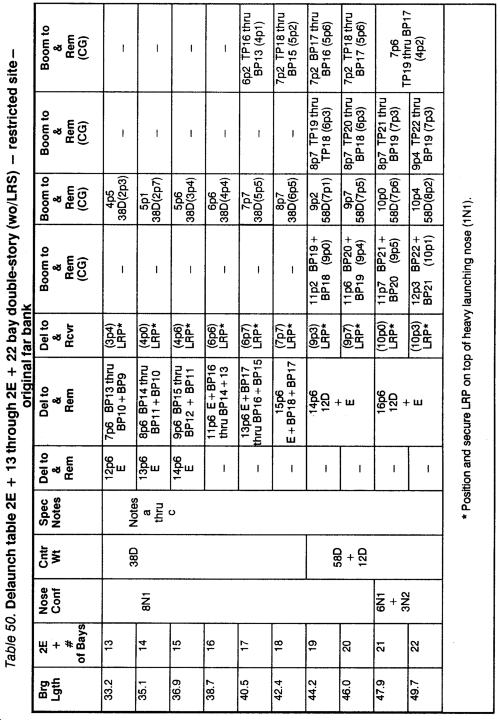

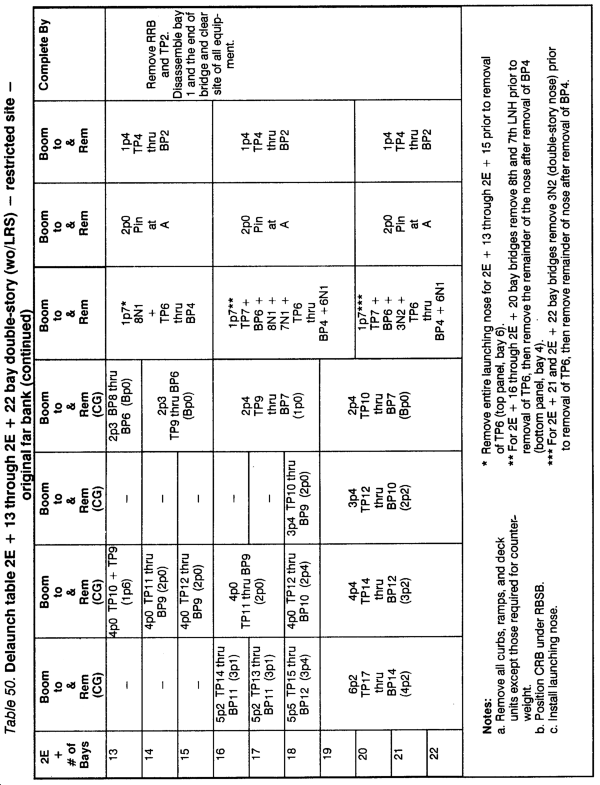

Table 50. Delaunch table 2E + 13 through 2E + 22 bay double-story (wo/LRS) -- restricted site -- original far bank

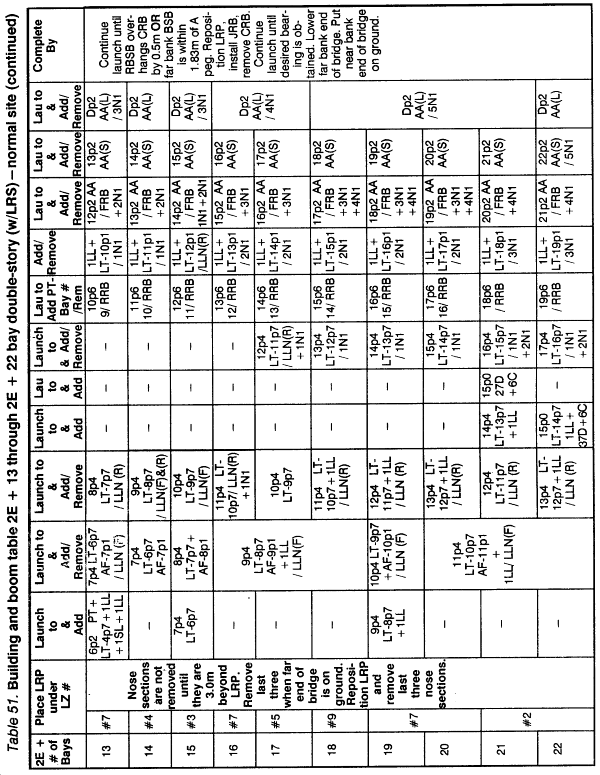

Table 51. Building and boom table 2E + 13 through 2E + 22 bay double-story (w/LRS) -- normal site

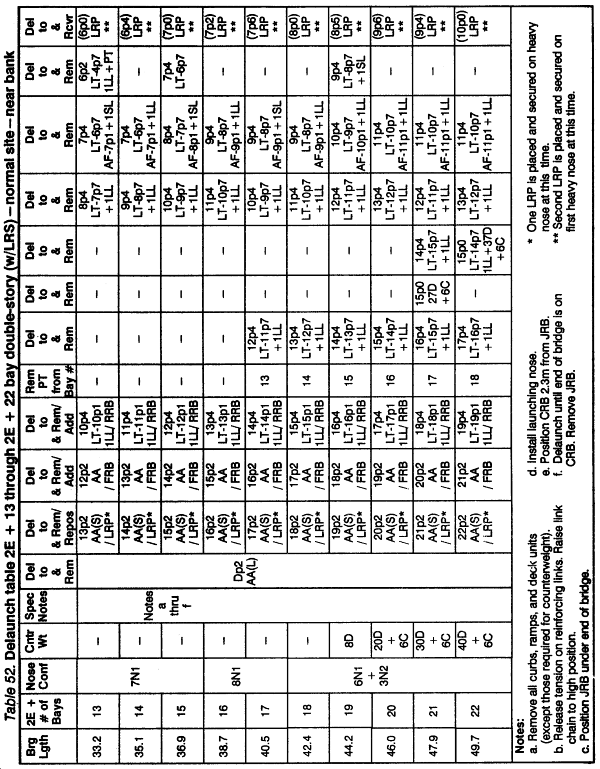

Table 52. Delaunch table 2E + 13 through 2E + 22 bay double-story (w/LRS) -- normal site--near bank
