Appendix J

Communications Nets

NET DIAGRAMS

J-1. This appendix contains external and internal communications nets (Figures J-1 through J-29) in which aviation logisticians and personnel who have an impact on aviation logistics participate.

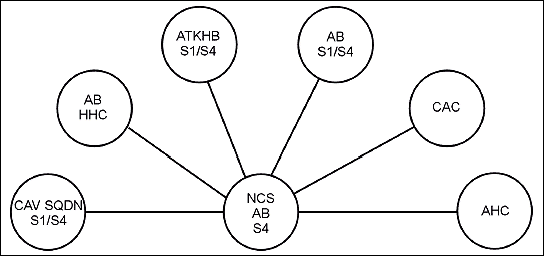

Figure J-1. Administrative/Logistics FM Net—Aviation Brigade, Heavy Division

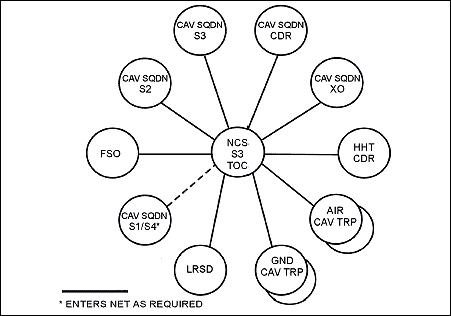

Figure J-2. Command/Operations FM Net—Cavalry Squadron, Heavy Division

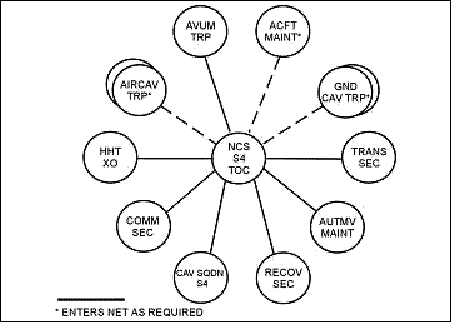

Figure J-3. Administrative/Logistics FM Net—Cavalry Squadron, Heavy Division

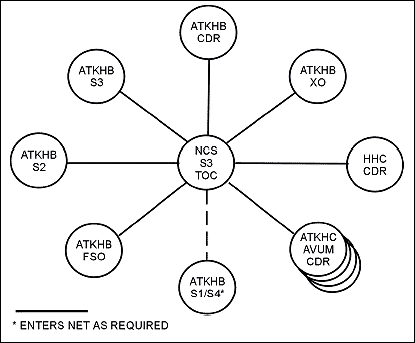

Figure J-4. Command/Operations FM Net—ATKHB, Heavy Division

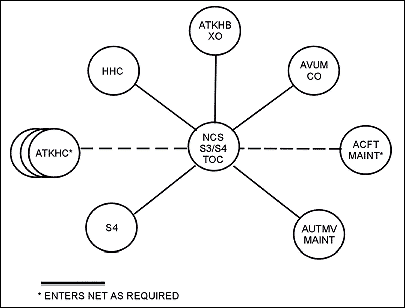

Figure J-5. Administrative/Logistics FM Net—ATKHB, Heavy Division

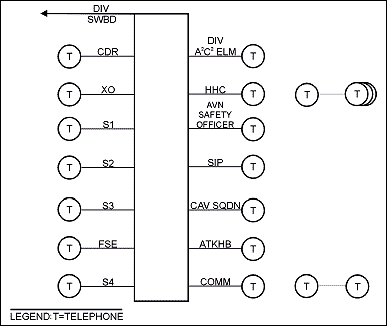

Figure J-6. Telephone System—Aviation Brigade, Heavy Division

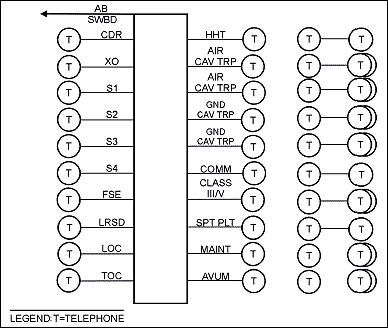

Figure J-7. Telephone System—Cavalry Squadron, Heavy Division

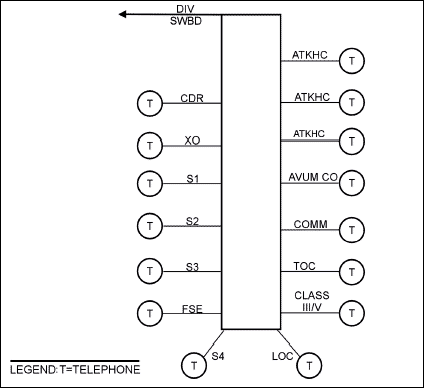

Figure J-8. Telephone System—Attack Helicopter BN, Heavy Division

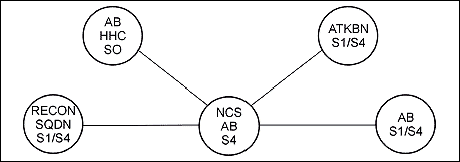

Figure J-9. Administrative/Logistics FM Net—Aviation Brigade, Light Division

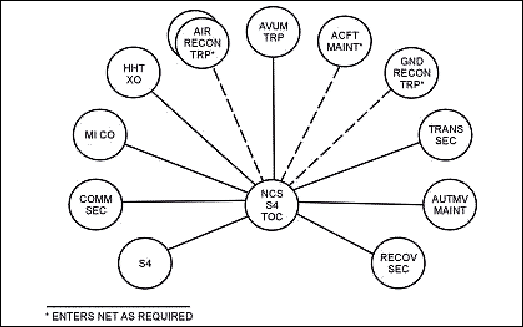

Figure J-10. Administrative/Logistics FM Net—Reconnaissance Squadron, Light Division

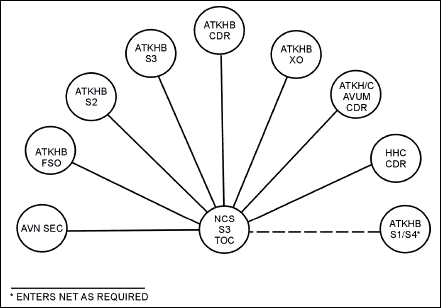

Figure J-11. Command/Operations FM Net—ATKHB, Light Division

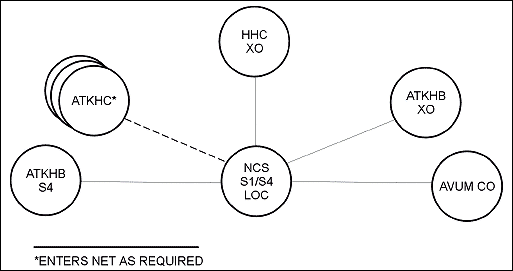

Figure J-12. Administrative/Logistics FM Net—ATKHB, Light Division

Figure J-13. Telephone System—Aviation Brigade, Light Division

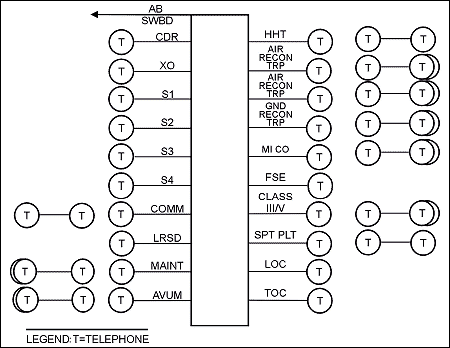

Figure J-14. Telephone System—Reconnaissance Squadron, Light Division

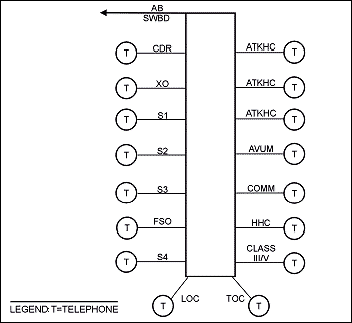

Figure J-15. Telephone System—ATKHB, Light Division

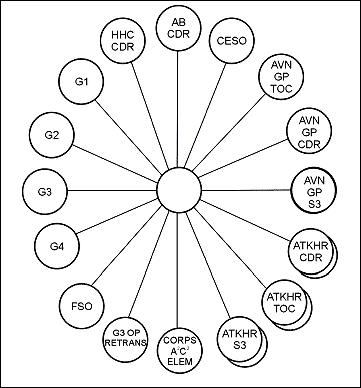

Figure J-16. Command/Operations FM Net—AB, Heavy Corps

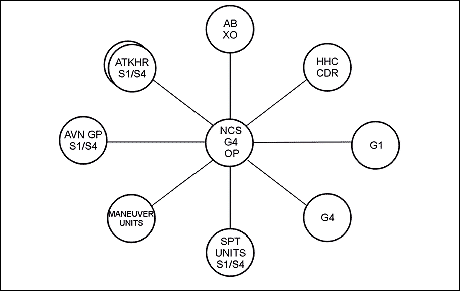

Figure J-17. Administrative/Logistics FM Net—Aviation Brigade, Heavy Division

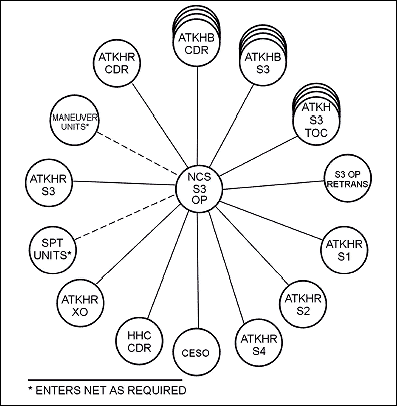

Figure J-18. Command/Operations FM Net—ATKHR, Heavy Corps

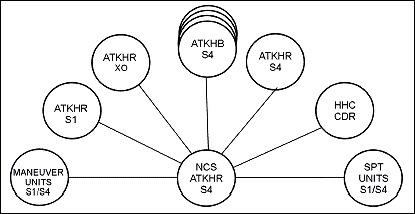

Figure J-19. Administrative/Logistics FM Net—ATKHR, Heavy Corps

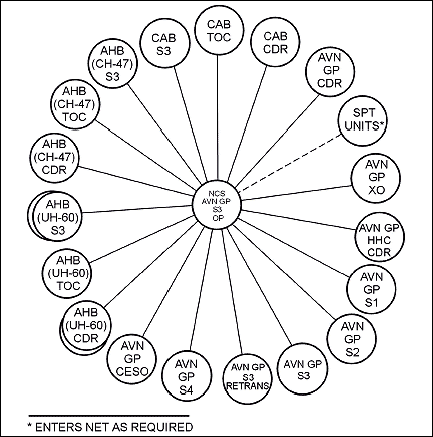

Figure J-20. Command/Operations FM Net—Aviation Group, Heavy Corps

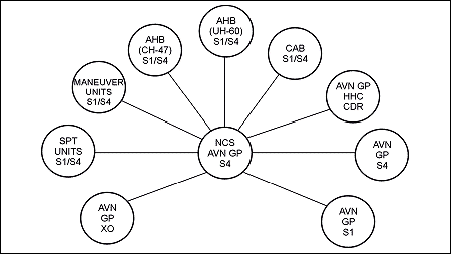

Figure J-21. Administrative/Logistics FM Net—Aviation Group, Heavy Corps

Figure J-22. Logistics Operations Net (AM-SSB)—DISCOM, Heavy Division

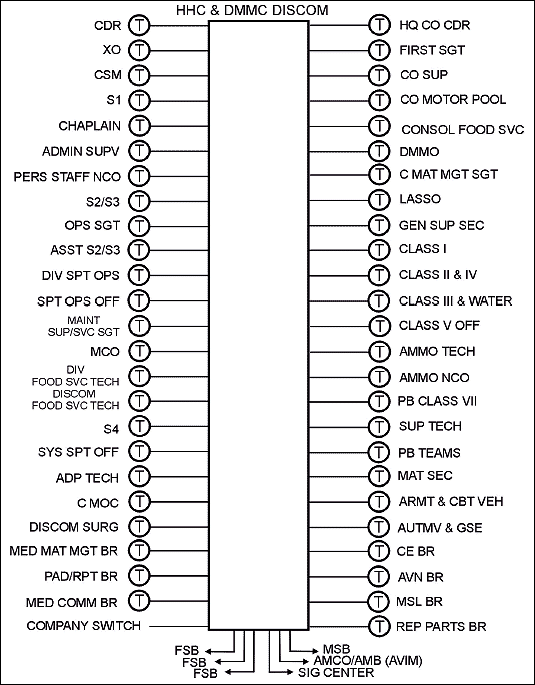

Figure J-23. Wire Net—DISCOM

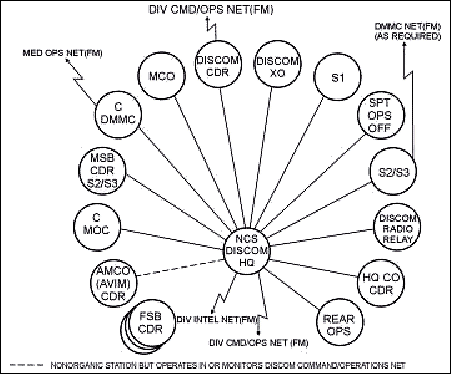

Figure J-24. Command/Operations FM Net—DISCOM, Heavy Division

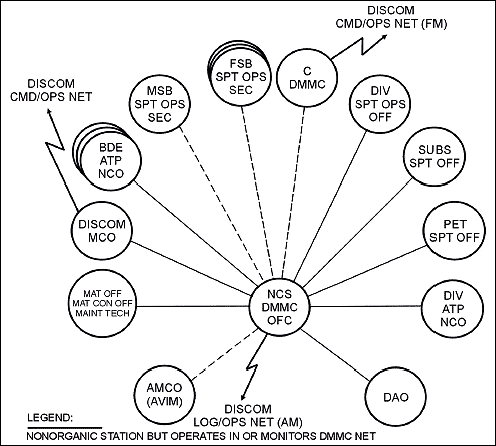

Figure J-25. FM Net—DMMC, Heavy Division

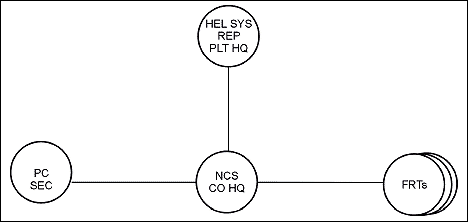

Figure J-26. Operations/Logistics FM Net—Typical AMCO (AVIM)

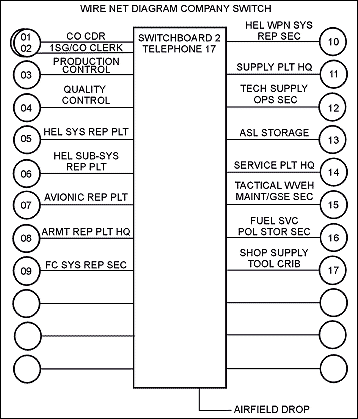

Figure J-27. Wire Net Diagram—AMCO (AVIM) (NON-DASB)

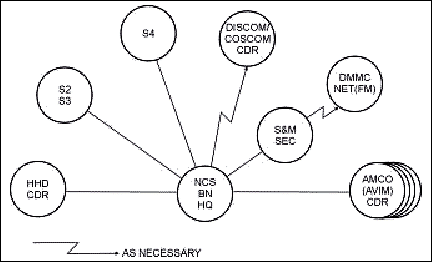

Figure J-28. FM/Voice Company Command Net—Typical HHD, AMB

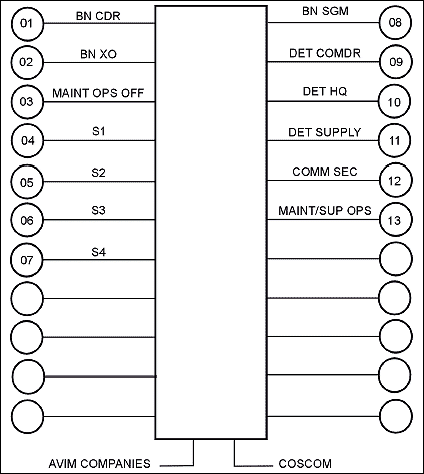

Figure J-29. Wire Net Diagram—HHD, AMB (AVIM), COSCOM
