CHAPTER 3
M966-MOUNTED TOW/TOW 2
The M966-mounted TOW is a one-vehicle (1 1/4-ton truck) combat system that is air-transportable, versatile, maintainable, and survivable (Figure 3-1). Its 16-inch ground clearance, four-wheel independent suspension, steep approach and departure angles of 60-percent gradability, side slope of 40-percent, and 30-inch (without kit, 60-inch with kit) water-fording capability provides the off-road mobility and speed needed in combat. The vehicle carries one complete launcher system, six encased missiles, and a three-man crew. This chapter discusses the duties of the crew and the detailed operations of the weapon system.
Section I. INDIVIDUAL DUTIES AND RESPONSIBILITIES
The three-man crew consists of the squad leader, the gunner, and the driver-loader. The duties and responsibilities of each crew member are discussed in the following paragraphs.
3-1. SQUAD LEADER
The squad leader is responsible for the combat readiness and tactical employment of his squad. This includes discipline, health and welfare, training, and maintenance of equipment and weapons. Other specific duties include the following:
- Directing the driver over the exact route.
- Detecting and identifying targets.
- Issuing fire commands.
- Controlling fire and movement.
- Supervising and assisting in dismounting and assembly of the M220-series TOW launcher.
- Employing the squad according to the orders of the section leader.
- Selecting primary, alternate, and supplementary firing positions.
- Requesting squad resupply.
- Informing the section leader of events that affect the tactical situation and of the status of his crew.
- Carrying the tripod, launch tube, coolant cartridges, battery case or BPCs, and binoculars when the TOW is used in the ground mode.
- Acting as the gunner when needed.
- Assisting the gunner in system check-out procedures.
- Supervising construction of the TOW firing position.
- Determining the direction of fire.
3-2. GUNNER
Specific duties of the gunner include the following:
- Conducting system check-out procedures.
- Acquiring, recognizing, and identifying armored vehicles.
- Determining if a target can be engaged.
- Engaging targets.
- Recognizing and eliminating firing-angle limitations.
- Adjusting the gunner's platform before stowing the MGS.
- Stowing the TVPC in the MGS and stowing the MGS, nightsight, and traversing unit.
- Preparing range cards for the TOW.
- Removing the nightsight, daysight tracker, launch tube, traversing unit, and MGS when the TOW is used in the ground mode.
- Carrying the MGS and daysight tracker to the firing position when the TOW is used in the ground mode.
3-3. DRIVER-LOADER
The driver-loader is a dual-purpose position in the M966 TOW squad. Specific duties of the driver-loader include the following:
- Driving the M966.
- Maintaining the vehicle.
- Camouflaging the vehicle.
- Carrying the traversing unit, encased missile, nightsight, and collimator to the firing position when the TOW is used in the ground mode.
- Securing the area.
- Stowing battery assembly, collimator, encased missiles, daysight tracker, spare battery case, coolant cartridges and batteries (or BPCs), and tripod on the M966 with the assistance of the squad leader.
- Maintaining radio equipment.
- Removing misfired missiles.
Section II. OPERATION PROCEDURES
Before using the M966-mounted TOW/TOW 2, the squad must install the M220-series TOW launcher and encased missiles and must prepare the M966 for TOW firing. (To install an M220A1 TOW launcher and encased missiles on an M966, see TM 9-1425-472-12. To install an M220A2 TOW launcher and encased missiles on an M966, see TM 9-1425-450-12.)
3-4. EQUIPMENT STORAGE

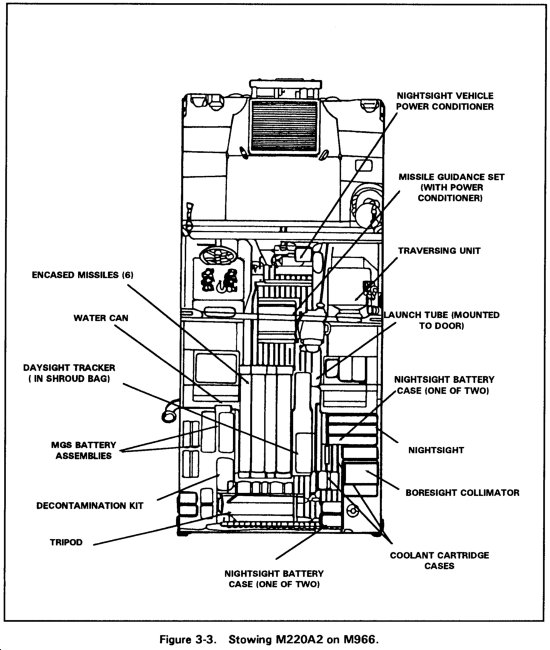

The TOW system components are stored in the interior of the vehicle (Figure 3-2 [M220A1] and Figure 3-3 [M220A2]).
a. Six encased missiles are stowed in the missile racks on the left rear of the cargo area.
b. The traversing unit is stowed on the traversing unit adapter behind the right front passenger seat.
c. The MGS is stowed on the gunner's platform between the left and right rear passenger seat.
d. The nightsight and collimator are stowed on the right cargo shelf.
e. The launch tube is stowed on the right side of the cargo shell door.
f. The BPC and spare battery pack, or the nightsight coolant cartridges and the 4.8-volt nickel cadmium battery, are stowed in the floor bracket next to the right wall of the cargo shelf.
g. The daysight tracker is stowed in the floor bracket next to the missile rack.
h. The battery assemblies are stowed in the battery rack above the missile rack.
i. The tripod is stowed retracted, lying across the rear of the cargo area.
j. The TVPC is stowed in the MGS.

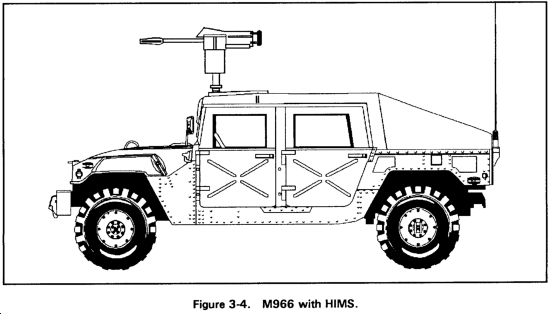

3-5. HMMWV INTERCHANGEABLE MOUNT SYSTEM
The HIMS is used to convert an M966 TOW HMMWV carrier into an automatic weapons platform (Figure 3-4). The HIMS provides units equipped with M966 TOW HMMWV carriers with low cost, quick, and effective options for tailoring forces for contingency missions. The HIMS contains two parts. (The HIMS technical data package contains the information needed to operate the HIMS and whereto find the materials needed. TM 9-2320-280-10 contains the combat loading plans for the vehicle.)
a. Part one is an armament mount panel assembly with pintle that mounts on the M1025 armament HMMWV carrier. This part is interchangeable with the missile guidance tray on the M966 TOW HMMWV carrier. The common turret ring of the two vehicles will accommodate the armament mount panel assembly using existing holes. No modifications are required.
b. Part two consists of a locally fabricated internal floor stowage plate that has automatic weapons stowage brackets, ammunition stowage trays, and footman tiedown straps already mounted for quicker emplacement. This plate is made of sheet aluminum and is mounted in the floor of the M966 TOW HMMWV carrier after removal of selected items of the TOW bracketry.
3-6. PREPARATION OF AN M966 FOR TOW FIRING
The three-man crew prepares the M966 for TOW firing by performing the following:

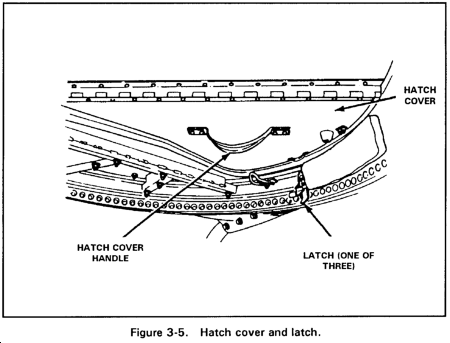

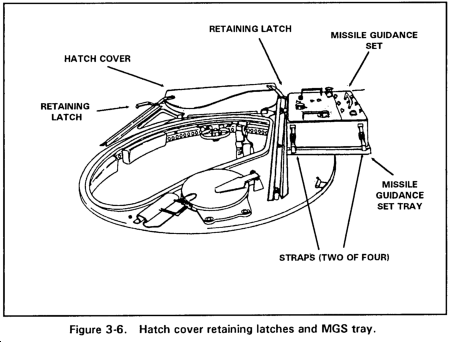

a. The gunner, driver-loader, and squad leader release the latches securing the hatch cover (Figure 3-5). The driver-loader enters the right rear passenger door.
b. The gunner removes the MGS from its stowed position.
(1) The gunner unlatches the retaining strap securing the MGS.
(2) The gunner releases the latches to remove the MGS cover and hands the cover to the squad leader.
(3) The squad leader stows the MGS cover in the front passenger's footwell of the vehicle.
(4) The gunner tilts the MGS to the vertical position on the gunner's platform and releases the lower coupling clamp on the traversing unit adapter.
c. The gunner positions the weapon station. The gunner opens the hatch and enters the weapon station, secures the hatch with the retaining latch, and rotates the weapon station by pulling upon the brake handle so that the backrest is toward the rear of the vehicle. To lock the weapon station, the gunner pushes down on the brake handle.
d. The gunner lifts the MGS through the weapon station, places it on the MGS tray, and secures it with the straps (Figure 3-6).
e. The gunner installs the traversing unit.

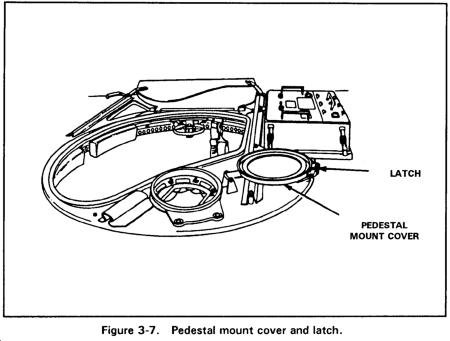

(1) The gunner opens the pedestal mount cover and secures it (Figure 3-7).
(2) The gunner lifts the traversing unit with adapter attached from the stowage base and secures the traversing unit to the pedestal mount with the coupling clamp ensuring that the traversing unit azimuth lock is toward the rear of the vehicle.
(3) The squad leader pulls the coil cable out of its retaining cup and hands it to the gunner (Figure 3-8).

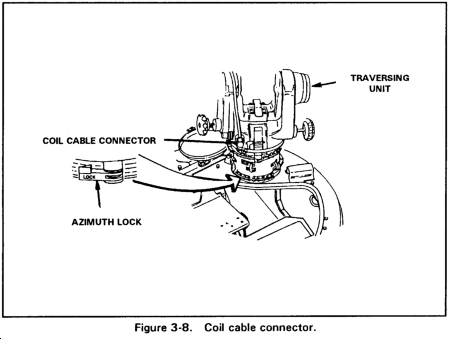

f. The gunner connects the coil cable connector by aligning the yellow indexing line on the coil cable connector with the yellow indexing line on the J1 connector on the MGS (Figure 3-9). He turns the nut on the coil cable connector in the direction of the arrow until the red mark (band) on the M1 connector on the MGS cannot be seen. (Do not apply downward pressure on the coil cable connector. This can cause misalignment and bent pins.)
CAUTION Ensure that no dirt is in the end of the coil cable connector. Dirt can cause a bad connection with the MGS, resulting in poor system operations. |
NOTE: On the MGS for the basic TOW, push down to seat the coil cable connector on the M1 connector and tighten the locking nut.
g. The gunner installs the launch tube.

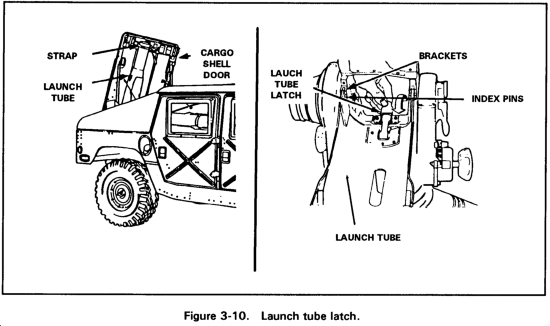

(1) The driver-loader uses the forward latch to open the cargo shell door and hands the launch tube to the gunner.
(2) The gunner installs the launch tube on the traversing unit and secures it with the launch tube latch (Figure 3-10).
h. The gunner installs the daysight tracker.
(1) The driver-loader hands the daysight tracker to the gunner.

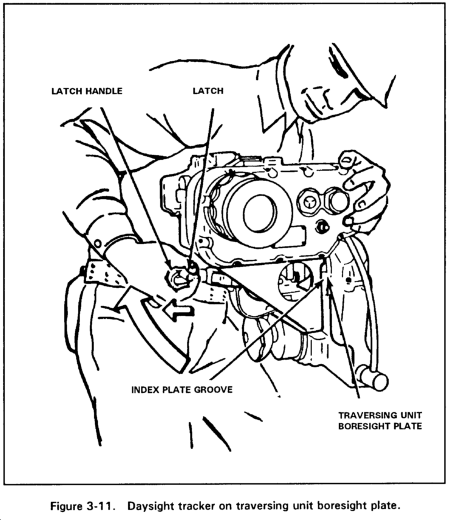

(2) The gunner mounts the daysight tracker on the traversing unit boresight plate. He secures the daysight tracker-by locking the latch handle (Figure 3-11).
(3) The driver-loader stows the nightsight case in its bracket.

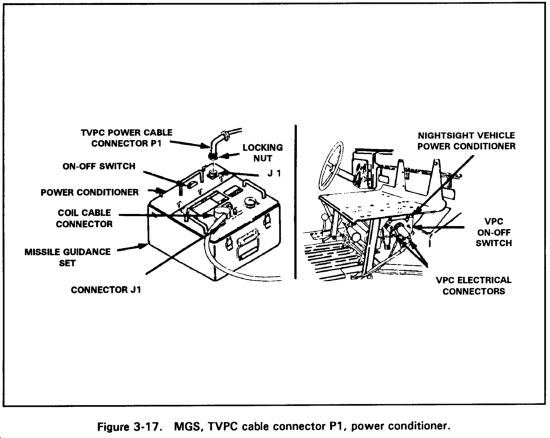

(4) The squad leader connects connector P2 of the TVPC power cable to the power conditioner cable.
(5) The squad leader unwinds the nightsight power conditioner cable and TVPC cable and hands both to the gunner.
(6) The gunner connects the nightsight power cable 2W2 to the nightsight input power conditioner J1 (Figure 3-12), then connects the TVPC power cable P1 to connector J1.
(7) The squad leader turns on the TVPC.
(8) The gunner turns on the power conditioner.
(9) The gunner checks steps 10 through 15 of system self-test on TOW 2 (positions 1 and 7 on basic TOW), then collimates the nightsight.

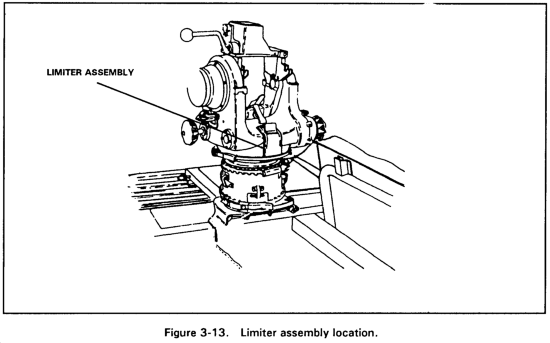

NOTE: The limiter assembly limits elevation to 20 degrees and depression to 10 degrees. If the limiter is used, the gunner makes sure both elevation and depression limiters are in the up position and pinned (Figure 3-13).
WARNING Injury to the gunner and damage to the equipment can occur if the TOW system is fired at angles greater than 20 degrees or less than -20 degrees for all firing positions except over the cargo shell door. If firing over the cargo shell door, firing angles should not be greater than 20 degrees or less than -13 degrees. Pressure waves and flying debris can cause injury to personnel and damage to equipment. |
3-7. LOADING, ARMING, AND UNLOADING
The procedures for loading, arming, and unloading the M966-mounted TOW/TOW 2 are as follows:
a. Load. Missiles must be unloaded from the missile racks in numerical order. The forward handling ring, preformed packing, and quick-release clamp are saved in case the missile is not fired. If missile diaphragms get damaged while loading, the missile can still be fired. The following procedures are performed to load the M966-mounted TOW/TOW 2
WARNING Never open one end of the cargo shell door until the opposite end is securely closed. Personnel injury, equipment damage, or mission abort will occur if both ends open at the same time. |
(1) On the traversing unit, the gunner ensures that the launch tube is locked in the 8-degree down position. He pushes the locking handle forward, then up, and opens the bridge clamp.
CAUTIONS 1. Do not drop an encased missile. Handling rings or launch container may be bent or damaged. 2. Do not break the diaphragm on the end of an encased missile. If water gets into the launcher container, the missile can be damaged. 3. Do not dispose of bad missiles. If an encased missile is damaged or handling rings are badly bent, return the encased missile to the ammunition unit for inspection. 4. Be careful not to punch a hole in an encased missile diaphragm when the forward handling ring is removed. |
(2) The driver-loader unlatches and raises the cargo shell door using the forward latch. He removes the quick-release clamp and forward handling ring from the encased missile.
WARNING Clear all personnel from the firing danger zone before proceeding with missile loading procedure. |
(a) The driver-loader turns the inside portion of the protective cover two complete turns counterclockwise, and he removes it from the electrical connector. (The protective cover is kept for future use.)
(b) He turns the encased missile so that the electrical connector is facing up and hands it to the gunner.
(3) The gunner takes the encased missile from the driver-loader. He raises the back end of the missile and slides it forward and down into the launch tube until the missile indexing lugs are firmly in place. The gunner lowers the back end of the encased missile ensuring that the electrical connector joins with the bridge clamp. He lowers the bridge clamp and pushes down on the top of it. He pulls the bridge clamp locking handle downward and backward to lock the encased missile in the launch tube.
DANGER Cargo shell door must be closed and securely latched at both ends before firing a missile. Firing a missile with the door not secure will cause injury to personnel, damage to equipment, or mission abort. |

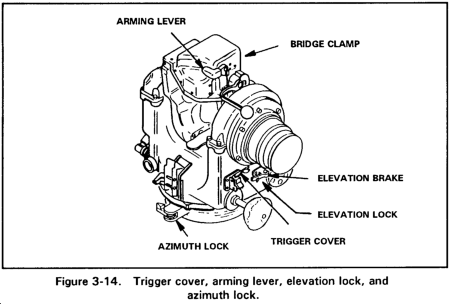

b. Arm. The following procedures are performed to arm the M966-mounted TOW/TOW 2.
(1) The driver-loader closes the cargo shell door.
(2) The gunner makes sure the cargo shell door is securely latched at the forward end.
WARNING Do not raise arming lever until ready to fire at selected target. |
(3) The gunner checks the backblast area before raising the arming lever.
CAUTION Do not press the trigger with an empty missile case in the launch tube. Possible shorts can result, damaging the prefire, fire, and wirecutter circuits. |
c. Unload. The gunner lowers the trigger cover over the trigger after the missile has impacted and locks the traversing unit in the 8-degree down position. If a missile is prepared for firing and then not fired, it must be immediately tagged to show the time, date, and using unit. If the missile is not used within 90 days of initial preparation, it must be turned in to the ammunition supply point.
CAUTION If the missile is not fired, lower the arming lever before opening the bridge clamp. The command-link wires will be cut if the arming lever is not lowered. |
3-8. TARGET ENGAGEMENT
The crew members perform the following target engagement procedures.
a. When the squad leader issues the fire command, the gunner releases the azimuth and elevation locks on the traversing unit and turns on the nightsight if necessary. If crew members other than the gunner are in or leaning on the M966, they must be very still while the gunner is tracking. Even small movements can cause the vehicle to move and adversely affect the gunner's aim.
b. The gunner acquires and begins to track the target.
(1) If the target cannot be acquired in the sight, he announces, "Lost."
(2) When the target has been acquired, he identifies it as friendly or enemy.
(3) If the target cannot be identified, he announces, "Cannot identify."
(4) If the target is identified as enemy, he places the cross hairs on the center mass of the exposed portion of the target, presses the trigger, and smoothly tracks the target until missile impact.
(5) If the target is sighted out of the sector of fire, the gunner must rotate the weapon station to engage the target after the squad leader verifies the target's engageability.
3-9. IMMEDIATE ACTION
The crew members perform the following immediate action procedures in the event of a hangfire or misfire. If the gunner presses the trigger and nothing happens after 1.5 seconds, a misfire has occurred. If he presses the trigger and the pop of the explosive squib on the gyroscope is heard but the missile does not launch after 1.5 seconds, a hangfire has occurred.
DANGER The crew must use extreme care to avoid injury from a delayed missile launch. A delayed launch usually occurs within 1 minute. However, it could occur as long as 30 minutes after pressing the trigger. Keep all personnel out of firing danger zones. |
DANGER Do not open the cargo shell door during failure to launch procedures. Should the missile fire with the cargo shell door open, severe injury to personnel or damage to equipment will result. |
a. For a hangfire, the gunner alerts the crew by announcing, "Hangfire" and continues to track the target for one minute.
(1) If the missile fails to launch after one minute, he closes the trigger cover, lowers the arming lever and locks the elevation lock and the azimuth lock, ensuring that the launch tube is locked in the 8-degree down position (Figure 3-14).
NOTE: In a training situation, the crew dismounts the vehicle, closes the doors, calls EOD, and waits 30 minutes. The gunner may then remount the vehicle.
DANGER If the vehicle is not positioned with its front or rear in line with the target, it must be repositioned so that either the front or rear of the vehicle is in line with the target. The weapon station must be rotated during vehicle repositioning so the forward end of the missile is pointing toward the target at all times. |

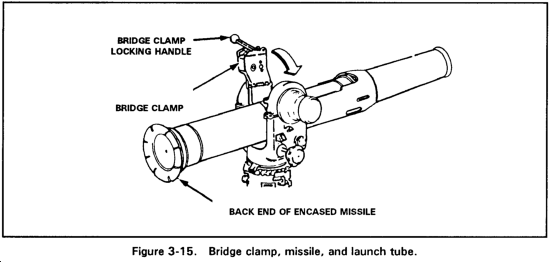

(2) He opens the bridge clamp (Figure 3-15), removes the missile from the launch tube (keeping the missile pointed downrange at all times), and hands the missile over either side of the vehicle to the driver-loader (Figure 3-16).
WARNING Do not hand off a malfunctioned missile to the front or rear of the vehicle. A malfunctioned missile must be handed off from the vehicle to either the left or right side. |
(3) The driver-loader, keeping the missile pointed downrange, places the missile on the ground a safe distance from the vehicle. (In training, he places the missile on the ground at least 200 meters from the vehicle and marks the location.)
b. For a misfire, the gunner continues to track the target for one minute and presses the trigger again. He alerts the crew by announcing, "Misfire" and continues to track the target.
(1) If the missile still fails to launch, he disarms the missile by closing the trigger cover, lowers the arming lever, and locks the azimuth and elevation locks ensuring that the launch tube is locked in the 8-degree down position.
(a) The gunner presses the TEST-OPERATE switch to check the battery power. If he receives an OUT-OF-BAND/BATTERY FAIL, he checks to ensure that the TVPC switch is in the ON position and that the P1 cable is securely mated to the container. If all cables are connected securely, he replaces the power conditioner with a battery and checks the battery (Figure 3-17).
(b) He checks the coil cable connection to J1 connector. If it is not connected properly, he corrects it.
(c) He ensures the bridge clamp locking handle is properly seated, unlocks the azimuth and elevation locks, and raises the arming lever.
(d) He ensures the electrical connector is properly mated, raises the trigger cover, and presses the trigger.
(2) If the missile still fails to launch, the gunner may continue tracking the target for one minute (at the gunner's discretion in combat).
(a) He closes the trigger cover, lowers the arming lever, and locks the azimuth and elevation locks, ensuring the launch tube is locked in the 8-degree down position.
NOTE: In a training situation, the crew dismounts the vehicle, closes the doors, calls EOD, and waits 30 minutes. The gunner may then remount the vehicle.
DANGER If the vehicle is not positioned with its front or rear in line with the target, reposition it so that either the front or rear of the vehicle is in line with the target. Rotate the weapons station during vehicle repositioning so the forward end of the missile is pointing toward the target at all times. |
(b) The gunner opens the bridge clamp, removes the missile from the launch tube (keeping the missile pointed downrange at all times), and hands the missile over either side of the vehicle to the driver-loader.
WARNING Do not hand off malfunctioned missile to the front or rear of the vehicle. A malfunctioned missile must be handed off from the vehicle to either the left or right side. |

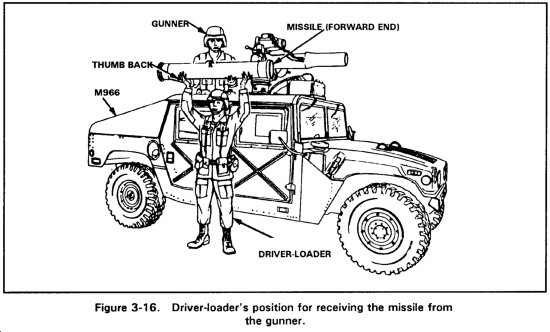

(3) The driver-loader, keeping the missile pointed downrange, places the missile on the ground a safe distance from launcher. (In training, he places the missile on the ground at least 200 meters from the launcher and marks the missile location.)
3-10. M220A1 DISMOUNT
Specific actions must be followed when dismounting the M220A1 and moving it to the firing site. All actions happen simultaneously.
a. Dismount Actions. Each crew member begins executing his assigned responsibilities as soon as the squad leader commands, DISMOUNT THE TOW.
(1) Squad leader's actions The squad leader--
(a) Turns the VPC to the OFF position, places the MGS cover on the driver-loader's seat, and places the coil cable in its retaining cup on the traversing unit.
(b) Dismounts and goes to the rear of the vehicle; opens the cargo shell door using the rear latch; lowers the tailgate; removes the tripod, battery case, and coolant cartridge case and places them on the ground beside the launch tube (on left front side of vehicle in front of the MGS and the daysight tracker); closes the tailgate and cargo shell door.
(c) Enters the right rear passenger door, gets the collimator case and the nightsight case, dismounts the vehicle, and places the collimator case and the nightsight case on the ground beside the vehicle.
(d) Carries the tripod, the coolant cartridge case, the battery case, and the launch tube to the firing site.
(2) Gunner's actions (assisted by driver-loader when needed). The gunner--
(a) Disconnects the coil cable from the MGS; disconnects the VPC and TVPC cables.
(b) Removes the nightsight and hands it to the driver-loader who places it on the ground. Removes the daysight tracker and hands it to the driver-loader who places it on the ground in front of the left side of the vehicle. (The nightsight should be put into its case and placed behind daysight tracker.)
(c) Removes the launch tube and hands it to the driver-loader who places it on the ground in front of the daysight tracker.
(d) Unlocks the top coupling clamp on the traversing unit adapter; removes the traversing unit (minus adapter); hands the traversing unit to the driver who places it on the ground behind the daysight tracker.
(e) Removes the TVPC from the MGS and places it to his rear on top of the vehicle within reach of the cargo hatch (see next step); unstraps the MGS and hands it to the driver-loader who places it on the ground beside the daysight tracker.
(f) Opens the cargo shell door by using the forward latch; switches the TVPC for the TOW battery assembly, and hands the battery assembly to the driver-loader to install in the MGS.
(g) Unstraps a missile and hands it to the driver-loader who places the missile on the ground behind the traversing unit. The gunner then closes the cargo shell door and dismounts the vehicle.
(h) Carries the daysight tracker and the MGS to the firing site.
(3) Driver-loader's actions. The driver-loader--
(a) Dismounts the vehicle and waits to receive equipment from the gunner.
(b) Aligns equipment as described in paragraphs 2a through 2g; installs the battery assembly in the MGS and then replaces the MGS cover on the MGS.
(c) Carries the traversing unit on the first trip, the missile on the second trip, and the nightsight and boresight collimator on the third trip to the firing site.
b. Firing Position Actions. Upon reaching the firing position, the crew proceeds with the following actions.
(1) Squad leader's actions. The squad leader--
(a) Places the coolant cartridge case, battery case, and launch tube on the ground. Sets up the tripod with the coupling clamp handle facing the direction of fire and unlocked.
(b) Pulls the coil cable out of the traversing unit retaining cup, installs the launch tube, and observes downrange for enemy targets.
(c) Issues fire commands.
(2) Gunner's actions. The gunner--
(a) Places the MGS on the ground next to the tripod and installs the daysight tracker on the traversing unit.
(b) Removes the MGS cover and connects the coil cable to the MGS.
(c) Installs the nightsight and turns the actuator switch to the ON position.
(d) Conducts the system self-test, boresight, and collimation.
(e) Engages the target upon receipt of the fire command.
(3) Driver-loader's actions. The driver-loader--
(a) Installs the traversing unit on the tripod.
(b) Returns to the vehicle for the missile; places the missile on the ground at the firing position to the right side of the weapon system.
(c) Returns to the vehicle to get the nightsight case and the boresight collimator case; returns to the firing position and hands the nightsight to the gunner.
(d) Places the collimator on the ground, removes it from its case, and installs it on the nightsight. Attaches the battery to the collimator.
(e) Removes the collimator from the nightsight; removes the battery from the collimator; places both the collimator and the battery back in their cases (if time permits).
(f) Loads the missile and arms it if commanded.
3-11. M220A1 REMOUNT
The following actions occur at the same time, when the squad leader commands, CEASE TRACKING, OUT OF ACTION.
a. Firing Position Actions. The following actions take place at the firing position before returning to the vehicle.
(1) Squad leader's actions. The squad leader--
(a) Removes the launch tube and places it on the ground.
(b) Folds the tripod legs and commands MOVE OUT. (The squad leader remains at the firing position until the driver-loader returns and all equipment is enroute to the vehicle.)
(c) Carries the coolant cartridge case, tripod, battery case, and launch tube back to the vehicle. Places the launch tube on the ground on the driver's side of the vehicle and the rest of the equipment on the ground behind the vehicle.
(2) Gunner's actions. The gunner--
(a) Disconnects the coil cable.
(b) Replaces the nightsight lens cover, removes the nightsight, and places it on the ground near the driver-loader.
(c) Removes the daysight tracker and picks up the MGS; carries them to the vehicle.
(d) Places the daysight tracker and the MGS on top of the vehicle and enters the gunner's station.
(3) Driver-loader's actions. The driver-loader--
(a) Removes the encased missile (or empty launch container if the missile was fired).
(b) Removes the traversing unit from the tripod, carries it to the vehicle, and hands it to the gunner when the gunner reenters the gunner's station.
(c) Returns to the firing position to get the nightsight and collimator; returns to the vehicle and hands the nightsight to the gunner; sets the collimator and the nightsight case on the ground near the rear of the vehicle.
(d) Returns to the firing position to get the encased missile (if a missile was not fired) and carries it to the vehicle. Hands the missile to the gunner.
b. Remount Actions. The following actions are performed to remount the vehicle.
(1) Squad leader's actions. The squad leader--
(a) Stows the coolant cartridge, battery case, tripod, nightsight case, and collimator on the vehicle.
(b) Hands the TVPC and VPC cables to the gunner. Enters the squad leader's seat in the vehicle and turns the VPC to the ON position.
(c) Places the MGS cover on the floorboard.
(d) Assists other crew members as needed.
(2) Gunner's actions. The gunner--
(a) Receives the traversing unit from the driver-loader, installs it on the traversing unit adapter, and secures it with the top coupling clamp.
(b) Installs the MGS in the MGS tray and secures it with the straps; hands the MGS cover to the squad leader; connects the coil cable.
(c) Installs the daysight tracker and nightsight, and connects the VPC.
(d) Moves into the cargo area and places the unfired missile in the missile rack (if necessary).
(e) If time permits, conducts the system self-test, boresight, and collimation; exchanges the battery assembly for the TVPC; connects the TVPC cable.
(3) Driver-loader's actions. The driver-loader assists the squad leader and gunner as needed. He closes the tailgate and cargo shell door at the end of the drill.
NOTE: If a missile was fired, the empty launch container is destroyed.
3-12. M220A2 DISMOUNT
Specific actions must be followed when dismounting the M220A2 and moving it to the firing site. All action happen simultaneously.
NOTE: Infantry units using the M966 conduct many types of missions. Therefore, during dismount operations, all equipment must be properly stored before leaving the vehicle.
a. Dismount Actions. The following actions occur at the same time when the squad leader commands, DISMOUNT THE TOW.
(1) Squad leader's actions. The squad leader--
(a) Turns the VPC to the OFF position, places the MGS cover on the driver-loader's seat, and places the coil cable in its retaining cup on the traversing unit.
(b) Dismounts and goes to the rear of the vehicle; opens the cargo shell door using the rear latch; lowers the tailgate; removes the tripod and the BPC and places them on the ground beside the launch tube (on the left front side of the vehicle in front of the MGS and the daysight tracker); closes the tailgate and cargo shell door.
(c) Enters the right rear passenger door, gets the collimator case and the nightsight case, dismounts the vehicle, and places the collimator case and the nightsight case on the ground beside the vehicle.
(d) Carries the tripod, BPC, and launch tube to the firing site.
(2) Gunner's actions (assisted by driver-loader when needed). The gunner--
(a) Disconnects the coil cable from the MGS and disconnects the VPC and TVPC cables.
(b) Removes the nightsight and hands it to the driver-loader who places it on the ground. Removes the daysight tracker and hands it to driver-loader who places it on the ground in front of the left side of the vehicle. (The nightsight should be put into its case and placed behind the daysight tracker.)
(c) Removes the launch tube and hands it to driver-loader who places it on the ground in front of the daysight tracker.
(d) Unlocks the top coupling clamp on the traversing unit adapter, removes the traversing unit (minus adapter), and hands it to the driver-loader who places it on the ground behind the daysight tracker.
(e) Removes the TVPC from the MGS and places it to his rear on top of the vehicle within reach of the cargo hatch (see next step); unstraps the MGS and hands it to the driver-loader who places it on the ground beside the daysight tracker.
(f) Opens the cargo shell door by using the forward latch; exchanges the TVPC for the TOW battery assembly; hands the battery assembly to the driver-loader to install in the MGS.
(g) Unstraps a missile and hands it to the driver-loader who then places the missile on the ground behind the traversing unit. The gunner then closes the cargo shell door and dismounts the vehicle.
(h) Carries the daysight tracker and the MGS to the firing site.
(3) Driver-loader's actions. The driver-loader--
(a) Dismounts the vehicle and waits to receive equipment from the gunner.
(b) Aligns equipment as described in paragraphs 2a through 2g; installs the battery assembly in the MGS and then installs the MGS cover on the MGS.
(c) Carries the traversing unit on the first trip, the missile on the second trip, and the nightsight and boresight collimator on the third trip to the firing site.
b. Firing Position Actions. Upon reaching the firing position, the crew proceeds with the following actions:
(1) Squad leader's actions. The squad leader--
(a) Places the BPC and launch tube on the ground; sets up the tripod with the coupling clamp handle facing the direction of fire and unlocked; connects the BPC cable and turns the BPC to the ON position; places the BPC cable within reach of the gunner.
(b) Pulls the coil cable out of the traversing unit retaining cup; installs the launch tube; observes downrange for enemy targets.
(c) Issues fire commands.
(2) Gunner's actions. The gunner--
(a) Places the MGS on the ground next to the tripod and installs the daysight tracker on the traversing unit.
(b) Removes the MGS cover and connects the coil cable to the MGS.
(c) Installs the nightsight and turns the actuator switch to the ON position.
(d) Conducts the system checkout, boresight, and collimation.
(e) Engages the target upon receipt of the fire command.
(3) Driver-loader's actions. The driver-loader--
(a) Installs the traversing unit on the tripod.
(b) Returns to the vehicle for the missile; places it on the ground at the firing position to the right side of the weapon system.
(c) Returns to the vehicle and gets the nightsight case and collimator case; returns to the firing position, takes the nightsight out of the case, and hands it to the gunner.
(d) Places the collimator case on the ground; removes the collimator from its case and installs it on the nightsight. Attaches the boresight cable to the collimator.
(e) Disconnects the boresight cable and removes the collimator from the nightsight; places the collimator in its case (time permitting).
(f) Loads the missile and arms it upon receipt of the fire command.
3-13. M220A2 REMOUNT
The following actions occur at the same time, when the squad leader commands, CEASE TRACKING, OUT OF ACTION.
a. Firing Position Actions. The following actions are performed at the firing position.
(1) Squad leader's actions. The squad leader--
(a) Removes the launch tube and places it on the ground.
(b) Places the coil cable in the retaining cup in the bottom of the traversing unit.
(c) Folds the tripod legs and commands MOVE OUT (The squad leader remains at the firing position until the driver-loader returns and all equipment is en route to the vehicle.
(d) Carries the BPC, tripod, and launch tube back to the vehicle. Places the launch tube on the ground on the driver's side of the vehicle and the rest of the equipment on the ground behind the vehicle.
(2) Gunner's actions. The gunner--
(a) Disconnects the coil cable.
(b) Replaces the nightsight lens cover; removes the nightsight and sets it on the ground near the driver-loader.
(c) Removes the daysight tracker, picks up the MGS, and carries them to the vehicle.
(d) Places the daysight tracker and MGS on top of the vehicle and enters the gunner's station.
(3) Driver-loader's actions. The driver-loades--
(a) Removes the encased missile (or empty launch container if the missile was fired).
(b) Removes the traversing unit from the tripod, carries it to the vehicle, and hands it to the gunner when the gunner reenters the gunner's station.
(c) Returns to the firing position to get the nightsight and collimator; returns to the vehicle and hands the nightsight to the gunner; sets the collimator and the nightsight case on the ground near the rear of the vehicle.
(d) Returns to the firing position, gets the encased missile (if the missile was not fired), and carries it to the vehicle. Hands the missile to the gunner.
b. Remount Actions. The following actions are performed to remount the vehicle.
(1) Squad leader's actions. The squad leader--
(a) Stows the BPC, tripod, collimator, and nightsight case on the vehicle.
(b) Hands the TVPC and VPC cables to the gunner. Enters the squad leader's seat in the vehicle and turns the VPC to the ON position.
(c) Places the MGS cover on the floorboard.
(d) Assists the other crew members as needed.
(2) Gunner's actions. The gunner--
(a) Receives the traversing unit from the driver-loader, installs it on the traversing unit adapter, and secures it with the top coupling clamp.
(b) Installs the MGS in the MGS tray and secures it with the straps; hands the MGS cover to the squad leader; connects the coil cable.
(c) Installs the daysight tracker and the nightsight, and connects the VPC.
(d) Moves into the cargo area and places the unfired missile in the missile rack (if necessary).
(e) Conducts the system checkout, boresight, and collimation (if time permits); exchanges the battery assembly for the TVPC and connects the TVPC cable.
(3) Driver-loader's actions. The driver-loader assists the squad leader and gunner as needed.
NOTE: If a missile was fired, the empty launch container is destroyed.
3-14. FIRING LIMITATIONS
Firing limitations for the M966-mounted TOW/TOW 2 are the same as for the tripod-mounted TOW/TOW 2 with an additional limitation: Restricted firing angles are those greater than +20 degrees or less than -20 for all firing positions except firing over the cargo shell door. The firing angle over the cargo shell door should not exceed +20 degrees or -13 degrees.
NEWSLETTER
|
Join the GlobalSecurity.org mailing list |
|
|
