APPENDIX B
GUNNERY TESTS
There are three gunnery tests: a diagnostic gunnery test, an intermediate gunnery test, and a gunnery skills test. The instructor is responsible for the conduct of all tests, and must ensure that sufficient scorecards or answer sheets are available.
B-1. DIAGNOSTIC GUNNERY TEST
This test is given before and during preparatory training. It is a written test that evaluates the trainees' knowledge of the MK 19 as well as the instruction given. Training units prescribe procedures for the test, and announce scores of those who satisfactorily complete the test. If this test is used, it should be given before range firing. It has a possible score of 100 points. To satisfactorily complete the test, 80 points are required.
| POINTS | ||
| 1. | Name the five major assemblies of the MK 19. | 5 |
| 2. | Explain how to clear and disassemble the MK 19. | 15 |
| 3. | Explain how to assemble the MK 19. | 15 |
| 4. | Explain how to perform a function check. | 5 |
| 5. | Explain how to apply immediate action to a runaway gun. | 5 |
| 6. | Explain how to apply immediate action when a malfunction occurs. | 10 |
| 7. | Explain one phase of functioning (directed by the examining officer). | 10 |
| 8. | Explain why the weapon should not be fired with the top cover assembly open. | 10 |
| 9. | Explain how to inspect ammunition before loading (belt to have at least one each of the following: short round, bent round, loose bullet, broken link or round not pushed fully into its link). | 10 |
| 10. | Explain how to load to half-load position. | 5 |
| 11. | Explain and demonstrate sight alignment. | 10 |
| 100 | ||
B-2. INTERMEDIATE GUNNERY TEST
This a written test given at the end of preparatory marksmanship training. It is used to evaluate the instruction as well as the soldier's gunnery skills. This test has 21 questions--20 multiple-choice and 1 true or false. Each soldier must correctly answer 17 of the 21 in order to move on to the next phase of training. The instructor is responsible for the conduct of the test.
1. What are the five major groups (field strip) of the MK 19?
a. Receiver assembly, top cover assembly, sear assembly, bolt assembly, and feed slide assembly.
b. Top cover assembly, receiver assembly, barrel, sear assembly and feed tray, and bolt and backplate assembly.
c. Receiver assembly, feed slide assembly and feed tray, top cover assembly, sear assembly, and bolt and backplate assembly.
d. Sear assembly with chargers, receiver assembly, feed tray assembly, top cover assembly, bolt and backplate assembly.
2. Where is the weapon safety located?
a. On the right side of the receiver assembly.
b. On the left side of the receiver assembly.
c. On top of the receiver assembly.
d. On the sear assembly at the bottom rear of the receiver assembly.
3. In a nonfiring situation to clear the weapon, in which order are the steps below taken?
a. 2, 4, 3, 1.
b. 1, 3, 4, 2.
c. 3, 1, 2, 4.
d. 1, 2, 4, 3.
1. Ensure that the safety switch is in the SAFE position, and the bolt is forward; open the top cover by rotating the top cover latch counterclockwise. Lift the cover.
2. Return the bolt to the full forward position and rotate the charger handles upward.
3. Inspect the feed tray and extractors on the top of the bolt to ensure that a round is not in the "pickup" position.
4. Unlock and pull the charging handles to the rear two to three inches. Inspect the face of the bolt and the chamber.
4. In which substance(s) should the bolt and backplate assembly never be immersed?
a. Cleaning solvent.
b. Lubricant.
c. Bore cleaner.
d. All of the above.
5. Under which conditions should a generous second coat of lubricant be used when cleaning the weapon?
a. Hot, wet, salt air, sea spray.
b. Hot, dry, sandy, dusty.
c. Cold, icy, snow.
d. All of the above.
6. Under which conditions should a second coat of lubricant not be used?
a. Hot, wet, salt air, sea spray.
b. Hot, dry, sandy, dusty.
c. Cold, icy, snow.
d. All of the above.
7. During reassembly, what is the first major group to be placed back on the weapon?
a. Sear assembly.
b. Bolt and backplate assembly.
c. Top cover assembly.
d. Receiver assembly.
8. When closing the top cover, in what position must the feed slide assembly be; and in what position must the bolt be to ensure proper alignment of the primary and secondary drive levers?
a. Left; to the rear.
b. Right; to the rear.
c. Left; forward.
d. Right; forward.
9. What is the maximum range of the weapon, in meters?
a. 1,500.
b. 2,212.
c. 2,000.
d. 1,800.
10. What is the maximum effective range of the weapon, in meters, for point targets?
a. 1,500.
b. 2,212.
c. 2,000.
d. 1,800.
11. What is the cyclic rate of fire for the weapon, in rounds, each minute?
a. 225 to 275.
b. 275 to 325.
c. 325 to 375.
d. 375 to 425.
12. What is the main characteristic(s) of the MK 19?
a. Fully automatic.
b. Blowback operated.
c. Air-cooled.
d. All of the above.
13. Which mount(s) should the weapon not be attached to?
a. M3 tripod without the T&E mechanism.
b. M3 tripod with the T&E mechanism.
c. M4 pedestal.
d. All of the above.
14. How much armor plating, in inches, is the weapon capable of penetrating, when firing ammunition at zero degrees obliquity?
a. 1.
b. 2.
c. 3.
d. 4.
15. Within how many meters must the 40-mm HE round impact to cause casualties to exposed enemy personnel?
a. 5.
b. 10.
c. 15.
d. 20.
16. To stop a runaway weapon, what step(s) must be taken?
a. Release the trigger and step away from the weapon.
b. Grab and twist the ammunition belt to break it off.
c. Unlock and lower one charging handle while keeping control of the weapon.
d. None of the above.
17. When loading the weapon, place the female link end of the ammunition belt through the feed throat and draw the ammunition into the weapon feed area.
a. True.
b. False.
18. What is the term used to describe an interruption in the functioning cycle when it is caused by faulty action of the gun or faulty ammunition?
a. Blockage.
b. Breakage.
c. Malfunction.
d. Remedial action.
19. To perform corrective action, what step(s) must be taken?
a. Unload and clear the weapon.
b. Inspect the weapon and ammunition to find the cause of the problem.
c. Correct the problem, reload, and try to fire the weapon.
d. All of the above.
20. How many rounds should per burst should the gunner fire when engaging targets?
a. 3 to 5.
b. 5 to 8.
c. 7 to 10.
d. 9 to 12.
21. In which position(s) must both charger handles be for the weapon to fire?
a. Forward and down.
b. Forward and up.
c. To the rear and down.
d. None of the above.
B-3. GUNNERY SKILLS TEST
This is a test guide for unit commanders to standardize and maintain MK 19 gunnery skills. It is a nonfiring hands-on test given at the end of MK 19 training. It may be held indoors if facilities are available. Seven stations are used for the skill tests. The test is graded on a GO or NO-GO basis.
a. Instructions for the Gunner's Examination. The following is a guide for giving gunners the skill test.
(1) To organize for testing, assemble the entire unit in one area and orient them as follows:
DURING THE NEXT ____ HOURS YOU WILL TAKE PART IN A PERFORMANCE-TYPE EXAMINATION TO TEST YOUR KNOWLEDGE OF THE MK 19 MACHINE GUN. STAY WITH YOUR ASSIGNED GROUP DURING THE ENTIRE EXAMINATION. INITIALLY, EACH GROUP WILL BE ASSIGNED TO A SPECIFIC STATION. AT EACH STATION, AN ASSISTANT INSTRUCTOR WILL EXPLAIN EXACTLY WHAT TASK OR TASKS YOU ARE TO PERFORM. AFTER BEGINNING THE TASK, IF YOU DO NOT KNOW A STEP OR STEPS, ASK THE ASSISTANT INSTRUCTOR FOR HELP. HE WILL TELL YOU HOW TO PERFORM THE STEP, DEDUCT THE NECESSARY POINTS FROM YOUR GRADE, AND YOU MAY CONTINUE TO WORK. SEVENTY PERCENT IS THE PASSING SCORE.
(2) Organize the unit into seven equal groups that rotate from station to station until all individuals have been tested. Helmet and LBE will be worn for this test. Assign enough assistant instructors to each station to grade and critique each gunner's performance. For ease in marking, give score sheets to each grader and collect the sheets immediately after the test.
(3) At the end of testing for each group, have each grader assemble the soldiers he graded and give them a thorough critique (five minutes).
b. Testing Stations. There are seven stations for gunnery skills testing. All stations except one, six, and seven have intermediate training objectives.
c. Scoring. For tasks at stations one, six, and seven score the soldier GO if all steps are passed (P). Score the soldier NO-GO if any steps are failed (F). If the soldier fails any steps, show what was done wrong and how to do it correctly. For stations two through five, score the soldier GO on a task if he receives no more than one intermediate training objective NO-GO.
STATION ONE
TASK: Identify the characteristics of the MK 19.
CONDITIONS: In any environment, the gunner is given a complete tripod-mounted MK 19.
STANDARDS: The gunner will know characteristics of the MK 19.

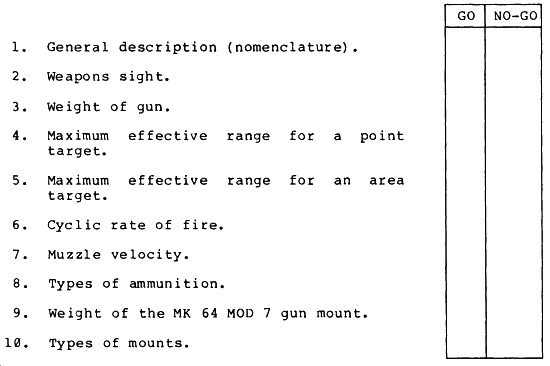

PERFORMANCE MEASURES:
STATION TWO
Station Two has seven intermediate training objectives.
TASK: Perform operator's maintenance on the MK 19.
CONDITIONS: In any environment, given a complete MK 19, cleaning equipment, tools, work space, and TM 9-1010-230-10.
STANDARDS: The gunner will disassemble the MK 19 within four minutes. The gunner will use the cleaning materials as required in the operator's TM to clean the MK 19. The gunner will inspect, lubricate, and assemble the MK 19 within four minutes, and perform a function check.

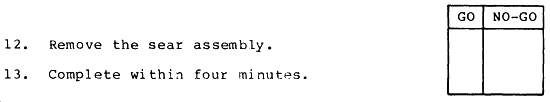

Intermediate Training Objective 1: Disassemble the MK 19.
CONDITIONS: Given a location in which to work, an assembled MK 19, weapon-cleaning equipment, lubricant, and TM 9-1010-230-10.
STANDARDS: The gunner will disassemble the MK 19 within four minutes.

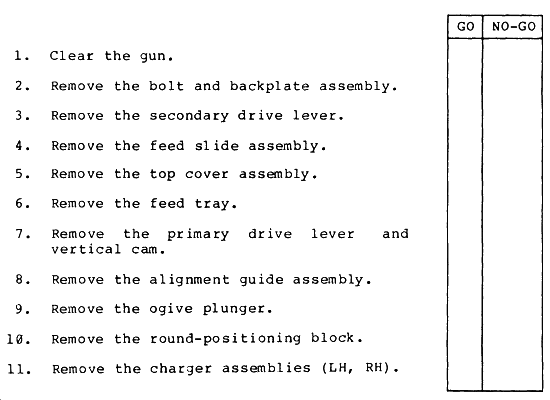

PERFORMANCE MEASURES:

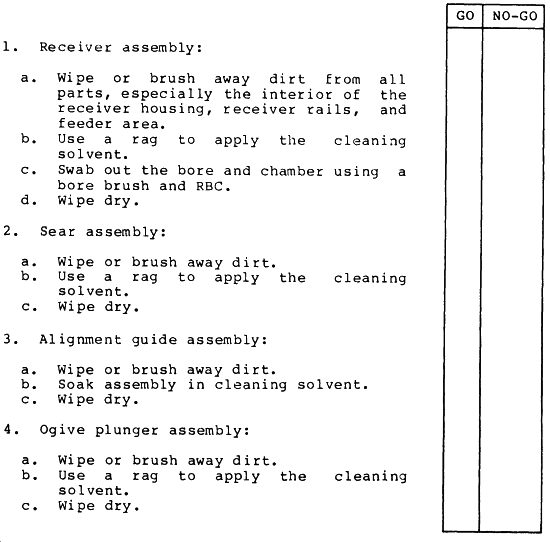

Intermediate Training Objective 2: Clean the MK 19
CONDITIONS: Given a disassembled MK 19, with the proper cleaning equipment.
STANDARDS: The gunner will clean the MK 19.

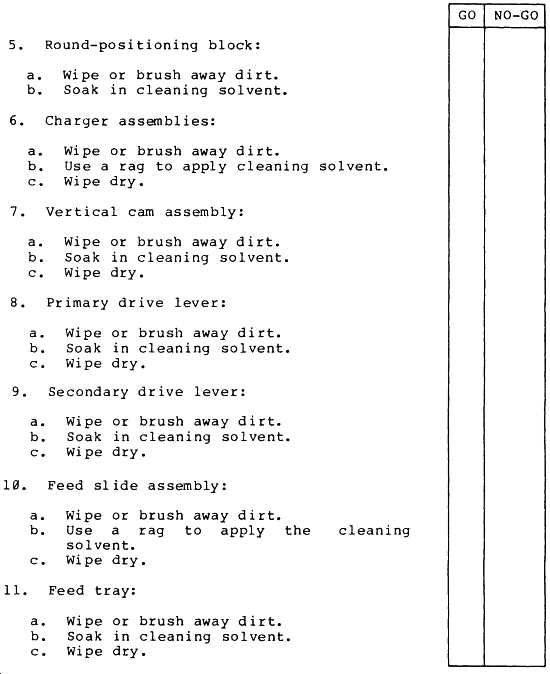

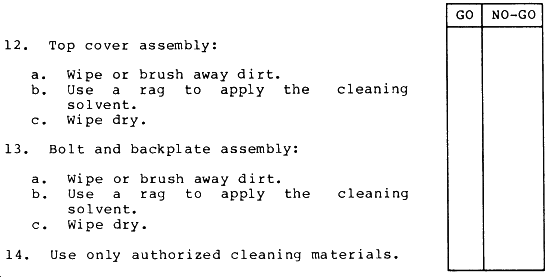

PERFORMANCE MEASURES:

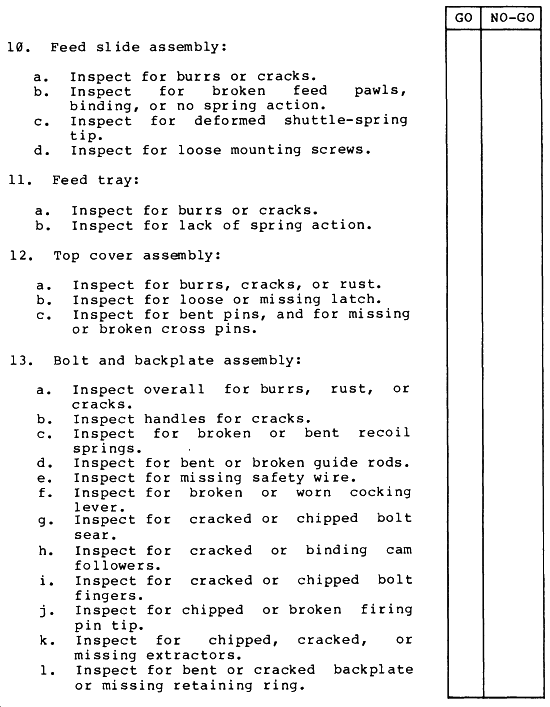

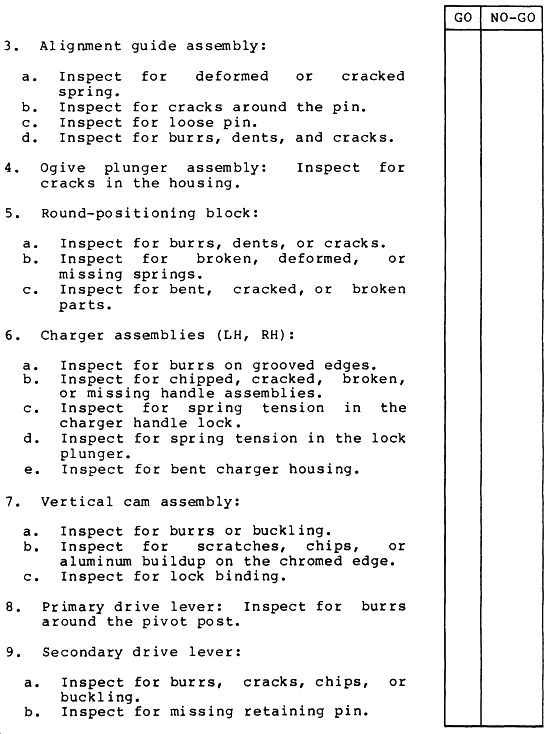

Intermediate Training Objective 3: Inspect the MK 19.
CONDITIONS: Given a disassembled and cleaned MK 19.
STANDARDS: The gunner will inspect the MK 19.

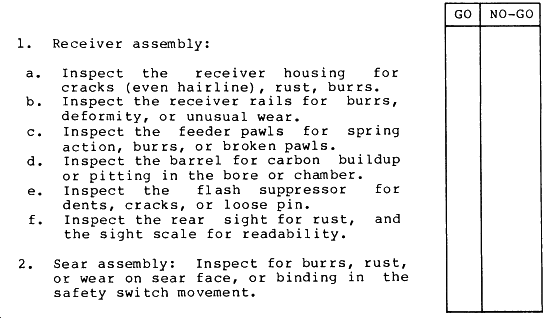

PERFORMANCE MEASURES:
Intermediate Training Objective 4: Lubricate the MK 19.
CONDITIONS: Given a disassembled, cleaned, and inspected MK 19, and lubricant and brush.
STANDARDS: The gunner will lubricate the weapon.
PERFORMANCE MEASURES:
Intermediate Training Objective 5. Assemble the MK 19.
CONDITIONS: Given a disassembled, cleaned, inspected, and lubricated MK 19.
STANDARDS: The gunner will assemble the weapon in proper sequence within four minutes.
PERFORMANCE MEASURES:
Intermediate Training Objective 6: Perform a function check.
CONDITIONS: Given an assembled MK 19.
STANDARDS: The gunner will perform a function check on the weapon.

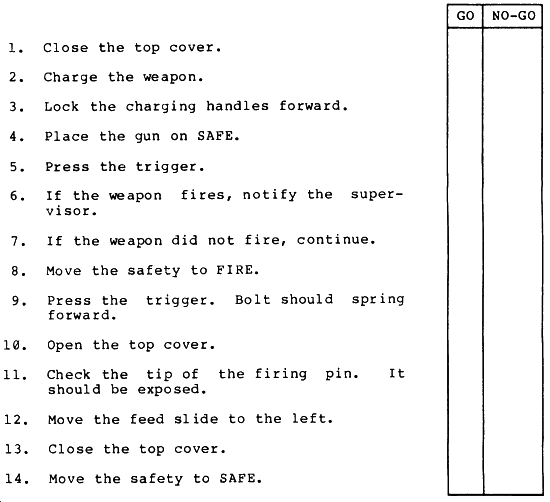

PERFORMANCE MEASURES:

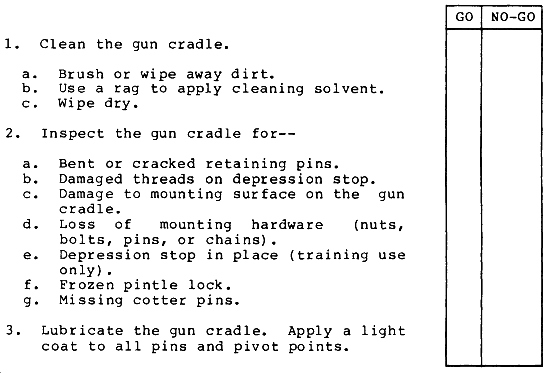

Intermediate Training Objective 7: Clean, inspect, and lubricate the MK 64 MOD 7 gun cradle.
CONDITIONS: Given a gun cradle, TM 9-1010-231-13&P, and lubricant.
STANDARDS: The gunner will clean, inspect, and lubricate the gun cradle.
PERFORMANCE MEASURES:
STATION THREE
Station Three has four intermediate training objectives.

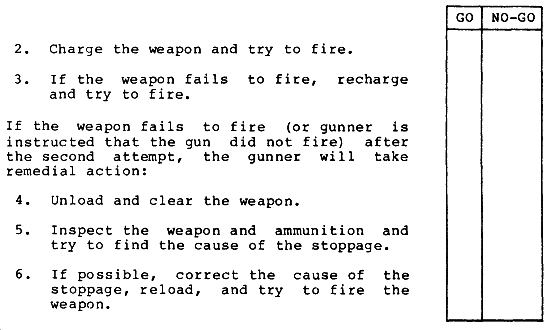

TASK: Load, unload, and correct malfunctions; clear the MK 19.
CONDITIONS: Given a location in which to work, a complete M3 tripod-mounted MK 19 and ten rounds of linked 40-mm ammunition (dummy).
STANDARDS: The gunner will load, unload, and clear the MK 19, and will take immediate and remedial action per TM 9-1010-230-10 and this training program.
Intermediate Training Objective 1: Clear the MK 19.
CONDITIONS: Given an M3 tripod-mounted weapon in a designated location, and ten rounds of linked 40- mm ammunition (dummy).
STANDARDS: The gunner will clear the MK 19.

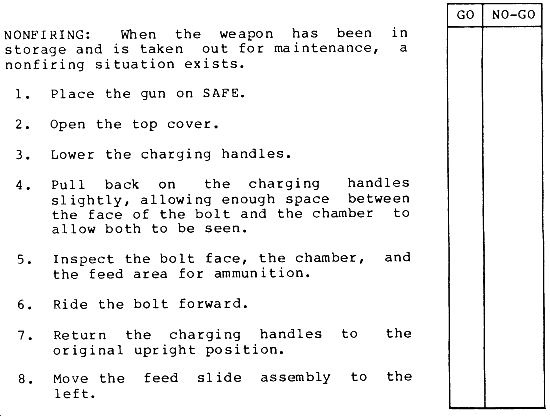

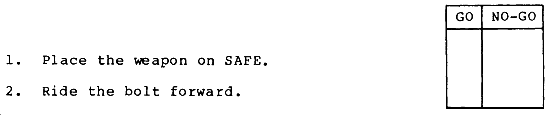

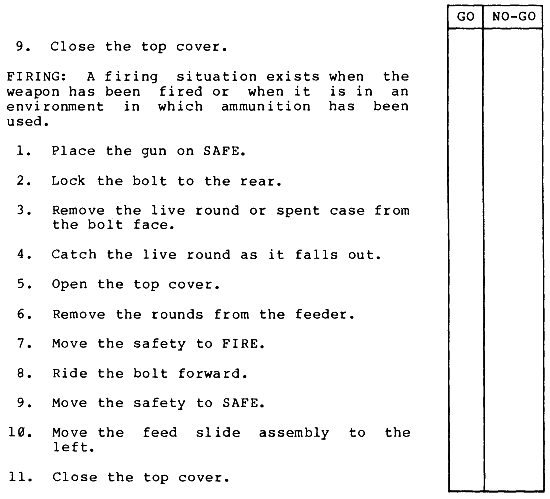

PERFORMANCE MEASURES:
Intermediate Training Objective 2: Load the MK 19.
CONDITIONS: Given an M3 tripod-mounted weapon in a designated location, ten rounds of linked 40-mm ammunition (dummy).
STANDARDS: The gunner will load the weapon.

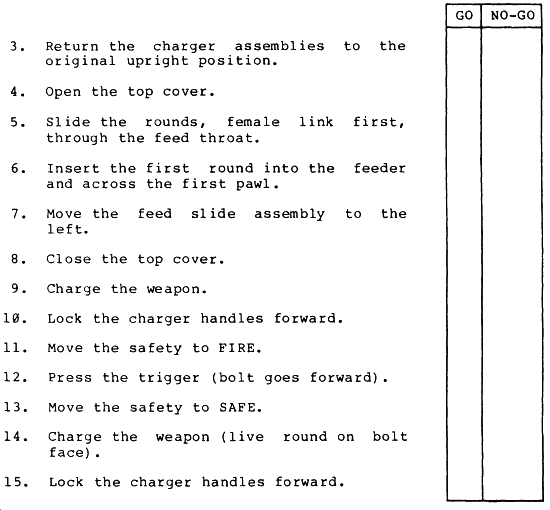

PERFORMANCE MEASURES:
Intermediate Training Objective 3: Correct malfunctions.
CONDITIONS: Given an M3 tripod-mounted weapon in a designated, ten rounds of linked 40-mm ammunition (dummy), and a simulated stoppage.
STANDARDS: The gunner will correct the malfunction.
PERFORMANCE MEASURES:
Intermediate Training Objective 4: Stop a runaway gun.
CONDITIONS: Given an M3 tripod-mounted weapon in a designated location, ten rounds of linked 40-mm ammunition (dummy), and a simulated runaway gun.
STANDARDS: The gunner will stop the runaway gun.
PERFORMANCE MEASURES:
STATION FOUR
Station Four has four intermediate training objectives.

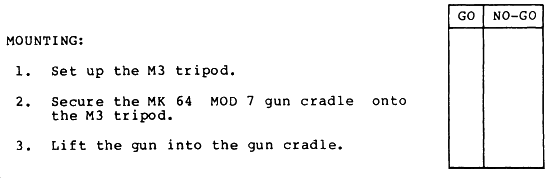

TASK: Mount and dismount the MK 19 onto one of the following: M3 tripod, M4 pedestal on a 1/4-ton vehicle, HMMWV with weapon platform, or commander's cupola on an M113.
CONDITIONS: Given a complete MK 19, a complete MK 64 MOD 7 gun cradle, a location in which to work, TM 9-1010-231-13&P, and one or more of the following: M3 tripod, 1/4-ton vehicle with an M4 pedestal, HMMWV with weapon platform, or M113.
STANDARDS: The gunner will mount and dismount the MK 19 on the gun cradle, mount the gun on other mounts as directed. The time limit for moving the MK 19 from one mount to another is four minutes.
TRAINING NOTE: When the MK 19 is mounted on a unit's organic carrier or the M3 tripod, it is called a weapon system. The weapon system is mounted using the three-man concept. The gunner is responsible for ensuring that it is mounted correctly, with the aid of the other two team members. The steps for securing the MK 19 to the gun cradle are the same. The MK 19 is moved from one mount or another with the MK 64 MOD 7 gun cradle attached.
Intermediate Training Objective 1: Mount the MK 19 on the M3 tripod.
CONDITIONS: Given a location in which to work, an M3 tripod with T&E mechanism, the gun cradle, and TM 9-1010-231-13&P.
STANDARDS: The gunner will mount the gun cradle on the M3 tripod.

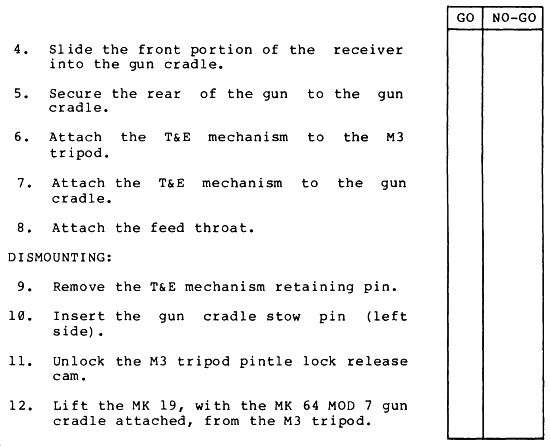

PERFORMANCE MEASURES:
Intermediate Training Objective 2: Mount and dismount the MK 19 from the M4 pedestal.
CONDITIONS: Given a location in which to work, a vehicle with an M4 pedestal mount, an M3 tripod-mounted MK 19, the T&E mechanism, pintle adapter, ammunition container bracket, and tools.
STANDARDS: The gunner will remove the MK 19 from the M3 tripod, mount it on the M4 pedestal within four minutes, and dismount it from the M4 pedestal within four minutes.
PERFORMANCE MEASURES:

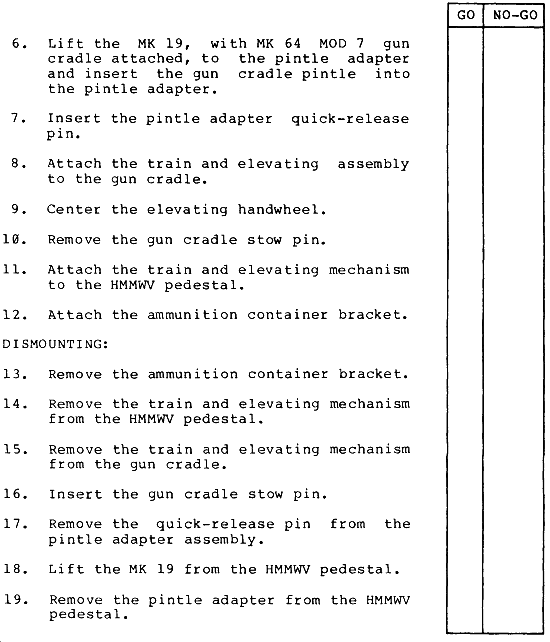

Intermediate Training Objective 3: Mount and dismount the MK 19 from the HMMWV weapon platform.
CONDITIONS: Given a mounted MK 19, location in which to work, a HMMWV with weapon platform, pintle adapter assembly, train and elevating mechanism, and TM 9-1010-231-13&P.
STANDARDS: The gunner will remove the MK 19 from its mount and install it on the HMMWV weapon platform within four minutes.

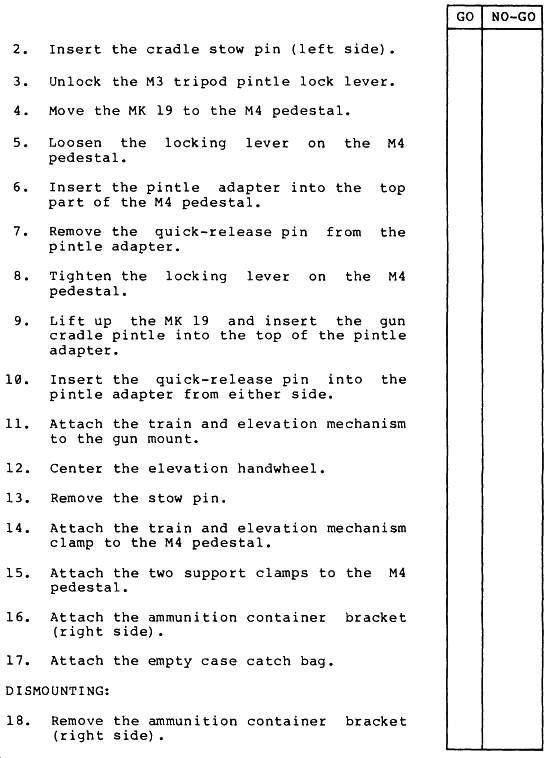

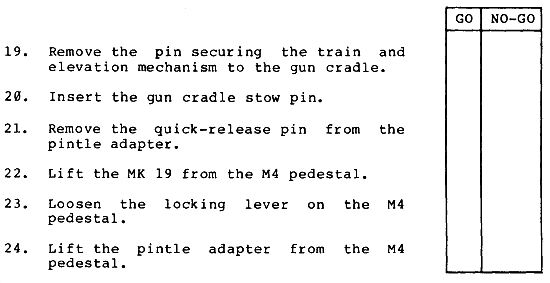

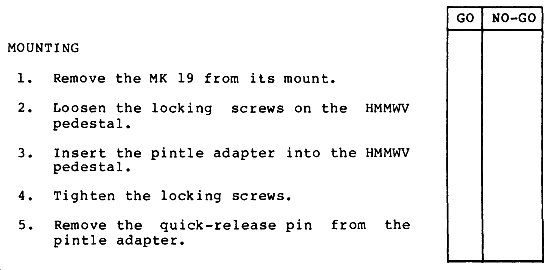

PERFORMANCE MEASURES:

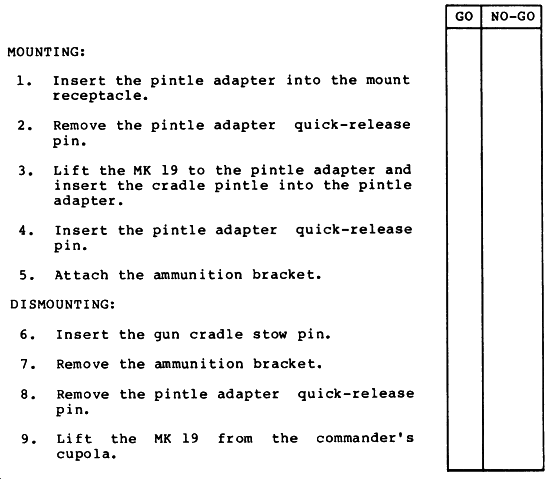

Intermediate Training Objective 4: Mount and dismount the MK 19 from the commander's cupola of an M113.
CONDITIONS: Given a mounted MK 19, a location in which to work, an M113 with the commander's cupola, pintle adapter, ammunition bracket, and TM 9-1010-231-13&P.
STANDARDS: The gunner will remove the MK 19 from its mount and install it on the commander's cupola of the M113 within four minutes.
PERFORMANCE MEASURES:
STATION FIVE
TASK: Identify characteristics of a defensive position for the MK 19.
CONDITIONS: Given an M3 tripod, a complete MK 19, a location in which to work, direction of fire, and a partially dug fighting position.
STANDARDS: The gunner will identify the actions needed to complete the fighting position.

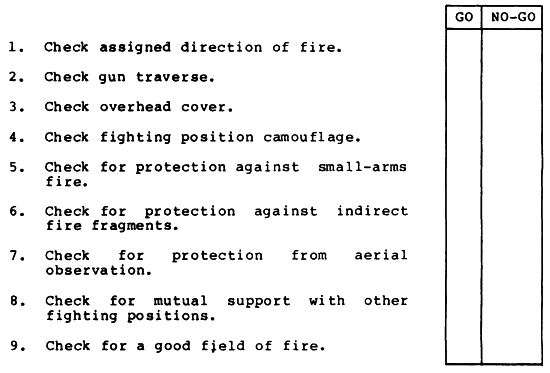

PERFORMANCE MEASURES:
STATION SIX
TASK: Prepare a range card for the MK 19.
CONDITIONS: Light, in a defensive position, given a tripod-mounted MK 19, a principal direction of fire and secondary sector of fire (both with recognizable targets), paper, pencil, and compass.

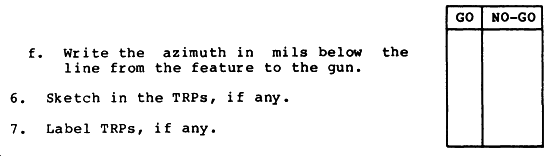

STANDARDS: Prepare range cards that include a data and sketch section for each sector of fire, with appropriate sketches and military symbols.

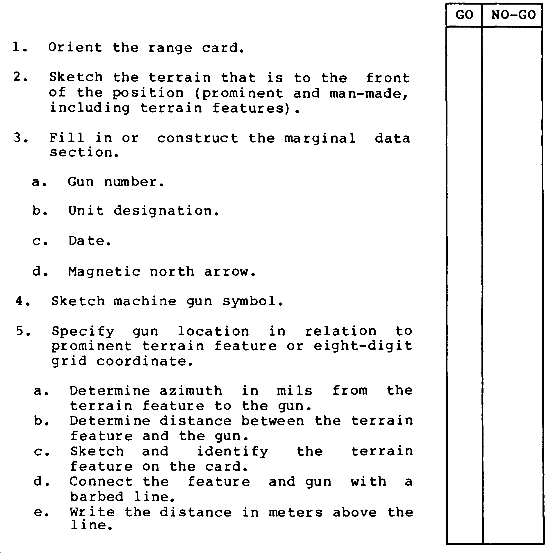

PERFORMANCE MEASURES:
STATION SEVEN

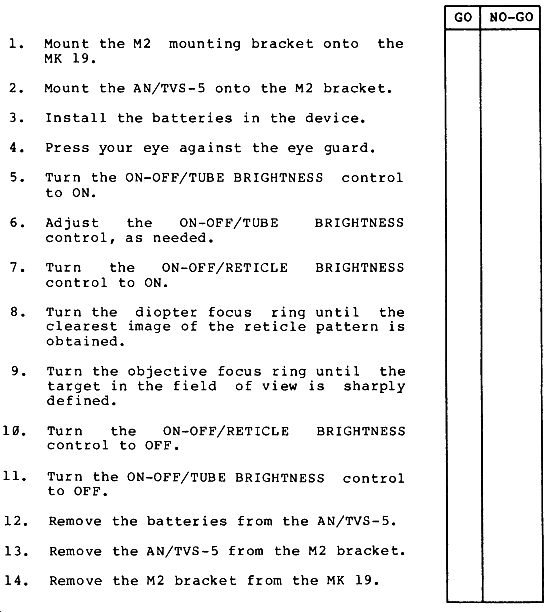

TASK: Mount, place into operation, and dismount the AN/TVS-5 night vision device from the MK 19.
CONDITIONS: Given a mounted MK 19 and an AN/TVS-5.
STANDARDS: The gunner will mount the AN/TVS-5 on the MK 19, place the sight into operation, and dismount the AN/TVS-5 from the MK 19.
PERFORMANCE MEASURES:
|
