CHAPTER 6


TRAINING EQUIPMENT
AND INSTRUCTOR TRAINING

Training equipment provides units with a low-cost means to develop and maintain gunner skills. Instructors must know the Dragon and training equipment to train gunners. This chapter describes the training equipment for the Dragon and provides a program to train instructors on training equipment use.

Section I. GUNNERY TRAINING EQUIPMENT

The training equipment is used with the tactical tracker and other tactical hardware for realism. Gunnery training equipment is issued to units equipped with authorized tactical trackers. Units are responsible for proper maintenance of assigned training equipment. (See Figure 6-1.)

6-1. LAUNCH EFFECTS TRAINER


The LET simulates the tactical round in appearance, weight, center of gravity, and some launch transient characteristics (Figure 6-2). The LET uses the M64 blank rifle grenade cartridge to simulate the noise, recoil, and weight shift from the gunner's shoulder and the time delay between trigger squeeze and launch.

NOTE: The weight shift of the Dragon round is more than the LET. If the gunner has adopted the correct holding technique, the weight shift will not be noticed.

a. The LET does not simulate Dragon launch. During the launch, there is a temporary obscuration of the gunner's view. The Dragon LET does not simulate the heat, flame, and dust of the launch or the appearance of the missile to block the gunner's view.

b. The LET consists of a bipod, launcher, tracker support assembly, and LET subassembly. Attached to the launcher are the forward and rear shock absorbers and the sling. The bipod assembly includes a tube and yoke assembly with a brace latch. A modified tactical version of the tracker support assembly is employed for multiple use, which supports and secures the tactical tracker in place. It also provides the electrical interface between the tracker and LET (Figure 6-2).

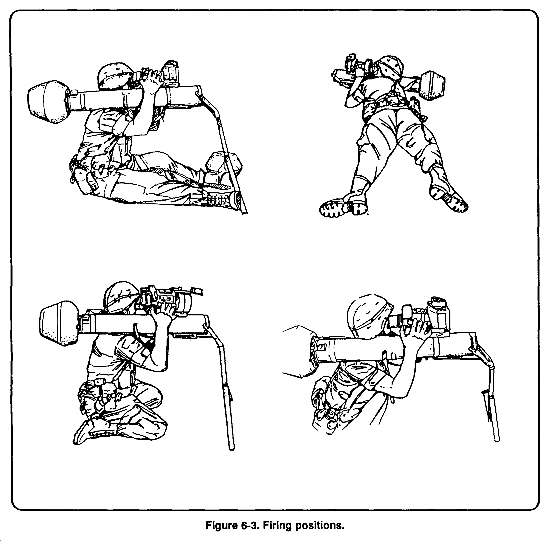

c. The LET allows a gunner to use any firing position shown in Figure 6-3. One set of training equipment ideally should not be closer than 6 meters to another set. The LET can be fired by itself or with the monitoring set, which evaluates gunner performance data and displays the results.

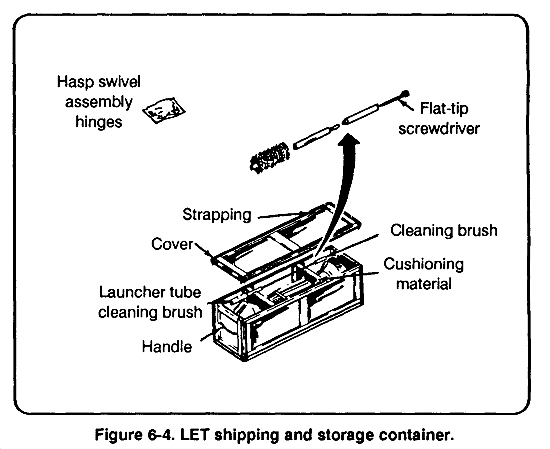

d. The LET shipping and storage container (Figure 6-4) is used when the LET is transported or stored. The cleaning brush is used to clean the LET and has a pushrod for resetting the weight.

6-2. AN/TSQ-1 MONITORING SET


The monitoring set monitors and evaluates the gunner's tracking performance (Figure 6-5). The set is powered by self-contained, rechargeable batteries.

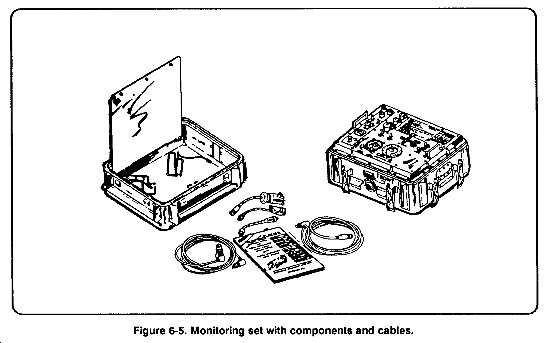

a. The monitoring set case assembly consists of two sections. The top section of the monitoring set provides storage for the five electrical cables and operator's manual. The bottom section (base) contains the monitor control and display panel, electronic assemblies, humidity indicator, battery packs, and battery charger.

(1) The monitoring set battery packs consist of four 10-VDC batteries, which provide power for the regulated plus or minus 13-VDC needed to operate the monitor and tracker. The battery packs are rechargeable by using any of the following power sources: 18-VDC to 30-VDC, 190-VAC to 230-VAC (50 to 100 Hz), and 105-VAC to 130-VAC (50 to 400 Hz).

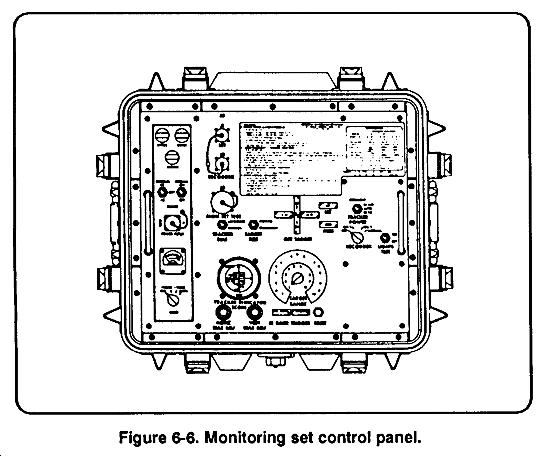

(2) The control panel has a mounting for the monitoring set controls, indicators, lights, and connectors. (See Figure 6-6.) The J connectors are on the control panel to provide connection points.

(a) The J1 LET connector, used with the trainer, provides for input stimuli to the monitoring set circuits.

(b) The J2 recorder connector is used to supply input signals to a chart recorder.

(c) The J3 MON TEST SET connector provides test points for use during maintenance and calibration of the monitoring set.

(d) POWER INPUT connector is used during battery charging.

b. The monitoring set provides two scoring functions. One function indicates the probability of the missile hitting or missing the target, and the direction and range at which the maximum aiming deviation was exceeded, resulting in the monitoring set registering a MISS. The other function indicates numerically the gunner's ability to maintain a steady aim point.

(1) HIT or MISS indications are not directly related to numerical scores. The monitoring set can register a high score with a MISS indication, or a low score with a HIT indication. This depends on whether the gunner's aiming deviations exceeded the maximum aiming deviation limits.

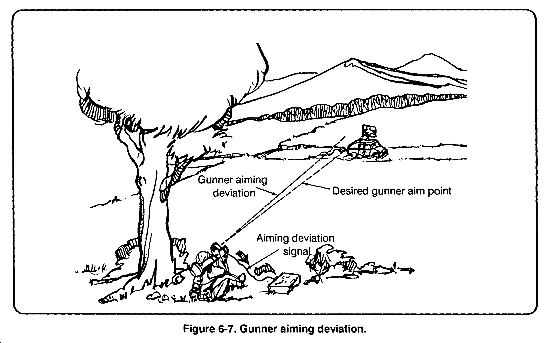

(2) The gunner's aiming deviation shows his aim point with respect to the desired target aim point (Figure 6-7).

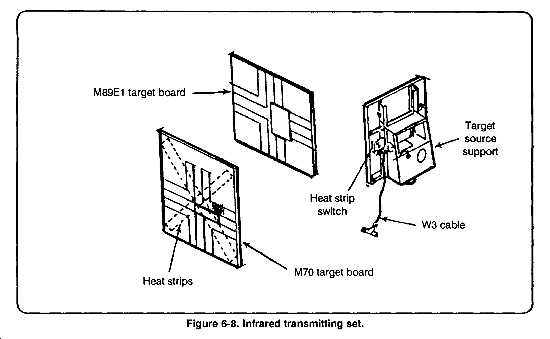

6-3. M89 INFRARED TRANSMITTING SET


The infrared transmitting set is vehicle-mounted and is used with the LET or LES and monitoring set (Figure 6-8).

a. The target set can be used in any simulated tactical operation. It operates in all weather conditions in which the gunner can track the target. The target set is used for gunner indoctrination, tracking instruction, practice, and qualification.

b. The infrared transmitter operates with any 24-VDC 40-amp system. It can be mounted on the M113 APC, M151 1/4-ton truck, HMMWV 1 1/4-ton truck, M60A1 tank, or M561 Gamma Goat. The target source generates an infrared beam that simulates an in-flight missile. As the gunner tracks the target board, the infrared receiver in the tracker picks up the beam. This information is processed by the monitoring set to score the gunner. The components of the infrared transmitting set areas follows:

WARNING: During operation, do not look into the target source lamp when in the danger zone. (See Figure 6-9.) Do not look at the target source through vehicle mirrors or any other reflective surface. Serious eye damage could result, requiring immediate medical attention. Also, do not look into the infrared lamp (target source) when within 3 meters of the target source.

(1) Target source. The target source operates at training frequency (5 KHz) and simulates the missile flare. Personnel must not enter the danger zone while the target source is operating (Figure 6-9).

(2) Target source support. The target source support is an aluminum, rectangular box that houses the target source, provides a mounting surface for the target board, provides cable storage, and mounts to the pedestal.

(3) Target board assembly. The target board assembly is an aluminum alloy board with a red cross painted on a white background. It is used as the aiming point for the gunner.

(4) Power supply modulator. The power supply modulator provides power to and controls the operation of the target source.

(5) Connecting cables. The target source cable carries starting and drive currents from the PSM to the target source. The power supply/modulator battery cable connects the PSM with the vehicle electrical system.

(6) Target mounting kit. The target mounting kit consists of a pedestal, universal adapter plate, four cargo slings, and related hardware. It serves as a base for the infrared transmitter.

6-4. FIELD HANDLING TRAINER


The FHT is a spent tactical round refurbished to simulate the tactical round in weight and shape. It provides a gunner with practical experience in tactical deployment, handling, aiming, and tracking. An FHT consists of the following modifications:

a. The remains of the rear shock absorber are removed from the spent round, and a new rear shock absorber is bonded in place. The tracker electrical connector is removed. A weight simulator, M8E2, is secured in the spent round with three screws, and a forward shock absorber is installed on the round.

b. The launcher color band and warhead color band are painted over. The propulsion color band is changed to a 1-inch (2.54 centimeters) bronze band. The word EMPTY is painted in 1-inch (2.54 centimeters) white letters on the side of the launcher.

6-5. LAUNCH ENVIRONMENT SIMULATOR


The LES is about the same size, shape, and weight as the tactical round and simulates its launch environment. (See Figure 6-10.) The LES uses a combination of MAPP gas, oxygen, and biodegradable end caps to produce a realistic simulation of the Dragon launch. The LES launcher is shipped with a blast deflector, which should be installed on the rear of the launcher. The blast deflector causes the rear of the launcher to rise during the firing sequence. This simulates the shoulder weight loss experienced when launching a missile.

a. The LES is used with the Dragon trackers, monitoring set, and infrared transmitting set, This gives an accurate evaluation of gunner performance during training exercises.

b. An electrical pulse, generated by the Dragon tracker's firing mechanism, activates the LES control box electronics. This supplies current to the glow plug inside the launcher. The glow plug ignites the MAPP and oxygen gas mixture. An electronic time delay is incorporated in the LES control box electronics to simulate the delay between trigger squeeze and launch.

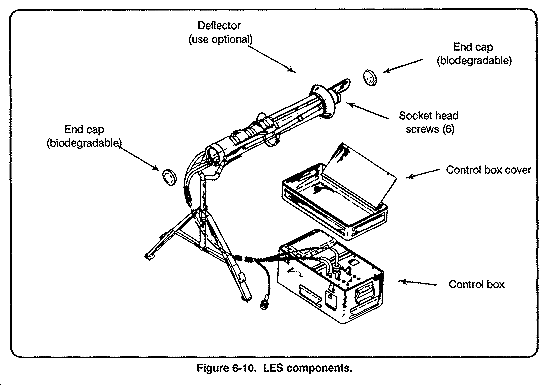

c. The LES control box (Figure 6-10) case assembly consists of two sections. The top section (cover) provides hose and cable storage space. The bottom section (base) contains the LES control panel, electronics assembly, battery pack, and MAPP gas and oxygen bottles and their respective regulators.

Section II. INSTRUCTOR TRAINING

Once selected by the commander, the instructor must pass the performance test in Appendix B and know the training objectives in this section. When he becomes proficient in the use of the training equipment, the instructor must know the principles outlined in Chapter 7.

6-6. TRAINING OBJECTIVE 1


TASK: Prepare an AN/TSQ-l monitoring set for operation.

NOTE: LET support stands are produced by the local TSC.

CONDITIONS: On a suitable range or training site, given one or more monitoring sets, LET or LES training devices, LET support stands, and TM 9-6920-484-12 or NAVTRADEV P-6054.

STANDARDS:

1. Perform a preoperational check before operating the monitoring set IAW TM 9-6920-484-12 or NAVTRADEV P-6054.

2. Replace any set that does not pass the voltage test IAW NAVTRADEV P-6054.

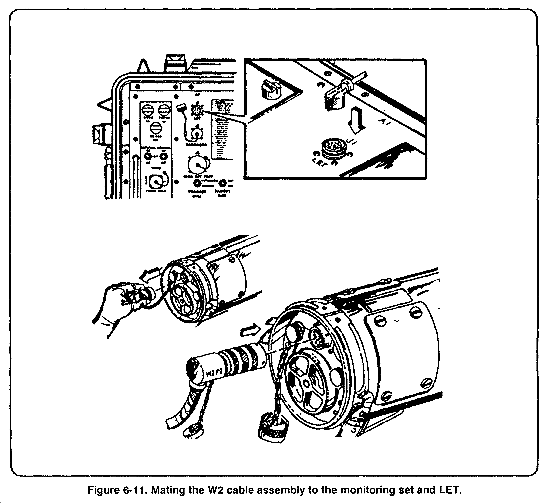

3. Mate the W2 cable assembly to the monitoring set and LET IAW TM 9-6920-484-12. (See Figure 6-11.)

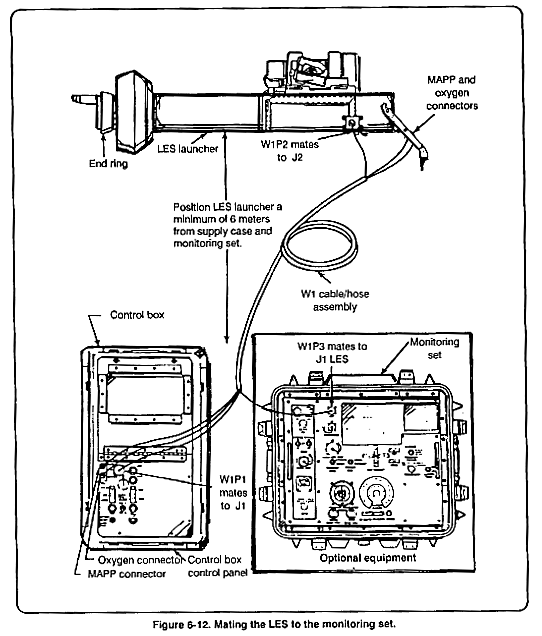

4. Mate the LES to the monitoring set IAW NAVTRADEV P-6054. (See Figure 6-12.)

PERFORMANCE MEASURES:

1. Perform a before-operation check. Perform a check before operating the monitoring set for the first time, or when assigned as the operator and it is the first operation of the day.

a. Make a visual inspection of the monitoring set for damage, loose components, and dirt.

b. Check the monitoring set for moisture.

c. Check the connectors and cables.

2. Position the monitoring set at the firing site. Place the monitoring set 6 meters from the firing position when using the LET or LES.

3. Prepare the monitoring set for the voltage test.

4. Conduct the voltage test (Figure 6-13).

5. For the LET, connect the W2 cable assembly to the monitoring set and LET. For the LES, see Training Objective 7, Prepare/Operate a LES, and NAVTRADEV P-6054 for instructions on connecting the LES to the monitoring set.

6-7. TRAINING OBJECTIVE 2


TASK: Install an M89 infrared transmitting set on a target vehicle.

CONDITIONS: Given an infrared transmitting set with all components; automotive tool kit; M151 l/4-ton truck, M113 APC, M561 Gamma Goat, or HMMWV 1 l/4-ton truck; TM 9-6920-484-12; and an assistant.

STANDARDS:

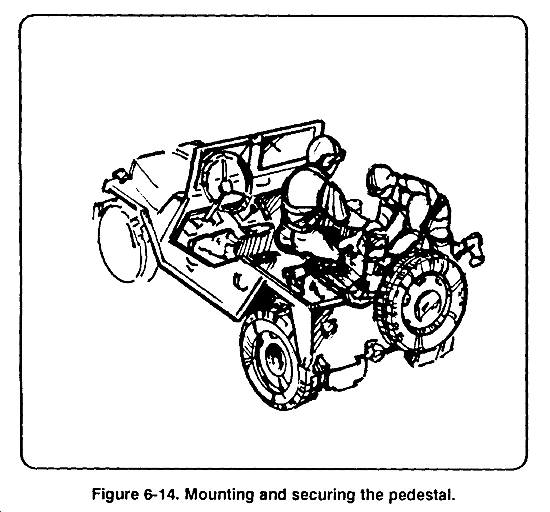

1. Mount and secure the pedestal on the vehicle (Figure 6-14).

2. Retain or turn in all parts and assemblies removed from the vehicle.

3. Install and secure the target board to the pedestal mount. (See Figure 6-15.)

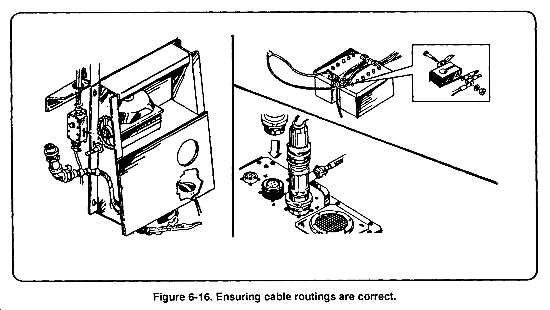

4. Ensure all the cable routings are correct and connected to the correct component (Figure 6-16.)

FOR TOW HMMWV:

1. Install and secure the target board to the traversing unit mount.

2. Ensure all the cable routings are correct and connected to the correct component.

PERFORMANCE MEASURES:

CAUTION: To avoid damage to the adapter or pedestal, be sure that the three locking assemblies are disengaged and the locking pins are not protruding into the interior of the pedestal.

1. Mount the pedestal on the universal adapter plate using the eight bolts, flat washers, lock washers, and nuts IAW TM 9-6920-484-12.

2. Place the pedestal assembly on the vehicle.

3. Strap the pedestal assembly to the vehicle.

4. Install the target board.

5. Hook up the infrared transmitter cables.

CAUTION: When connecting battery cable, do not short battery terminals to metal parts of the vehicle. Arcing can occur.

6. Install the power supply/modulator.

7. Apply power to the infrared transmitter.

6-8. TRAINING OBJECTIVE 3


TASK: Operate an M89 infrared transmitter.

CONDITIONS: Given an M151 l/4-ton truck or HMMWV 1 l/4-ton truck as a target vehicle, an infrared transmitting set with target mounting kit installed on the vehicle, and TM 9-6920-484-12.

STANDARDS:

1. Ensure that the infrared transmitter is installed on the target vehicle IAW TM 9-6920-484-12.

2. Perform a preoperational check before operating the infrared transmitter IAW TM 9-6920-484-12.

WARNING: Do not allow personnel to enter the danger zone while the target source is operating. Do not look at the target source through vehicle mirrors or any other reflecting source.

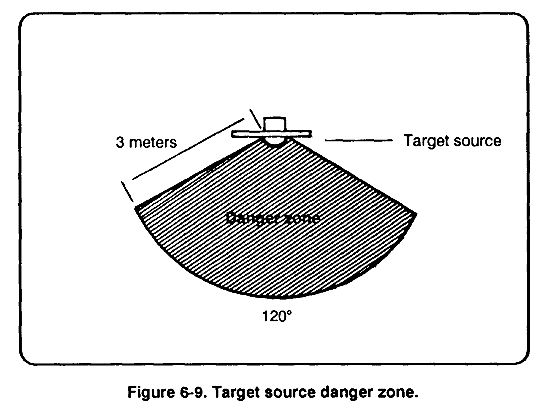

3. Do not allow personnel to enter the danger zone (see Figure 6-9) while the target source is in operation.

4. Start the power supply/modulator IAW the TM.

5. Operate the infrared transmitter IAW commands from the firing line.

6. At the end of the training session, perform maintenance on the infrared transmitter IAW the TM.

PERFORMANCE MEASURES:

1. Perform a before-operation check. Before operating the transmitter for the first time or when assigned as an operator and it is the first operation of the day.

CAUTION: Ensure that the face of the target board is away from the gunner and other personnel before starting the power supply/modulator.

2. Prepare the vehicle.

3. Check the target board. Check the target board mounting on the pedestal. Ensure that the adjusting clamp and locking assemblies are engaged.

CAUTION: Lamp cover must be removed before operating the power supply/modulator.

4. Prepare the power supply/modulator.

CAUTION: To prevent damage to the high-voltage power supply, do not hold the lamp start switch in the UP position for more than 15 seconds.

5. Prepare the target board for night training.

6. Operate the target board.

a. Turn the target board so that it faces the firing line.

b. At the end of each run, use the adjusting clamp to turn the target board so that it faces the firing line.

c. Turn on the radio and receive commands from the firing line.

7. Turn off equipment.

8. Use safety precautions when disconnecting the infrared transmitter.

a. Ensure that POWER circuit breaker is off before disconnecting cables.

b. Ensure that the transmitter is properly installed and secured before moving the target vehicle.

c. Shut down the transmitter immediately if the vehicle engine stalls when the transmitter is in operation.

d. Periodically check the tie-down straps for tightness when operating the vehicle.

9. Maintain the infrared transmitter.

6-9. TRAINING OBJECTIVE 4


TASK: Conduct/perform equipment alignment.

CONDITIONS: Given the following equipment, set up for operation at a training site: monitoring set, infrared transmitter, LET or LES, two radios, LET support stand, TM 9-6920-484-12 or NAVTRADEV P-6054, and the following personnel:

  • Monitoring set operator.
  • Gunner.
  • Loader.
  • Infrared transmitter operator.

STANDARDS:

1. Align the monitoring set IAW the TM.

2. Train each soldier to perform assigned functions within the performance measures.

NOTE: Weather conditions and target source lamp age affect the maximum range at which the tracker will receive the infrared transmitter signal.

PERFORMANCE MEASURES:

1. Deploy the infrared transmitter to the range at which the training exercise is to be conducted at 250 meters.

2. Establish communication between the monitoring set operator and infrared transmitter operator.

3. Have the monitoring set operator prepare the monitoring set for alignment.

4. Have the loader place the support stand under the rear of the LET.

5. Have the gunner perform zeroing procedures.

WARNING: Do not place an M64 NATO grenade launching cartridge in the LET during monitoring set zeroing procedures.

CAUTION: Minimize time in which the tracker power switch is in the (R) 4-10 position (not more than thirty seconds) to prevent damage to the tracker.

6. Have the monitoring set operator align the monitoring set.

7. Have the monitoring set operator, gunner, and loader verify that the LET and monitoring set are aligned.

8. If conducting a training exercise right away, have the monitoring set operator push the RESET switch.

9. If not conducting a training exercise right away, have the monitoring set operator --

  • Set the INTERNAL POWER switch to the OFF position.
  • Notify the infrared transmitter operator to turn the infrared transmitter off.

6-10. TRAINING OBJECTIVE 5


TASK: Prepare/operate a LET.

CONDITIONS: On a firing range, given a LET, LET support stand, 16 BA-30 or W-B-101 batteries, flat-blade screwdriver, LET cleaning equipment, day or night tracker, gunner and loader, and TM 9-6920-484-12.

STANDARDS:

1. IAW the TM, the gunner must--

  • Extend and secure the bipod.
  • Install 16 BA-30 or W-B-101 batteries into the LET.
  • Install either a day or night tracker on the LET.
  • Inform the monitoring set operator when to connect the W2 cable.
  • Maintain a steady track of the target by keeping the tracker optical sight cross hairs on the point of aim throughout the exercise.

2. Within 20 seconds and IAW the TM, the loader must--

  • Reset the dummy weight to the rear.
  • Open the breech and remove the expended cartridge.
  • Insert a new cartridge.
  • Close the breech, check the backblast area, and raise the safety lever to the ARM position.

PERFORMANCE MEASURES:

1. Have the gunner prepare the LET for operation.

WARNING: The monitoring set operator, gunner, and loader must wear ear protection.

WARNING: The M64 NATO grenade launching cartridge must be used in the LET. No other type of cartridge is authorized.

2. Have the loader reset the dummy weight. When the breechblock is open, the cartridge extractor positions the cartridge for manual removal. If unable to remove cartridge by hand, use the flat-blade screwdriver located in the cleaning brush handle to aid in removal, then clean the chamber.

WARNING: Always reach for the breechblock lever from the top. Keep hands clear of rear exhaust ports to prevent injury from possible backblast.

3. Have the loader load the LET.

4. Have the loader arm the LET. Raise the safety lever to the UP position and tell the gunner that the LET is ready to fire.

5. Have the loader unload the LET in any of the following situations:

WARNING: Do not leave an expended cartridge in the chamber.

a. End of exercise. Open the breech. Remove the spent cartridge and dispose of it according to local SOP. Close the breech.

b. Mission abort. Open the breech. Remove the cartridge and replace it in its package. Close the breech.

WARNING: A misfire is considered a hangfire until it is determined otherwise.

c. Hangfire/misfire. The gunner notifies the monitoring set operator that a hangfire is in progress and points the LET downrange for 60 seconds. Then, the gunner unloads the M64 cartridge.

WARNING: In case of a misfire, the gunner should keep the LET in the firing position until the loader unloads the cartridge. If the primer cap is dented, notify the instructor. Refer to TM 9-1300-206 for disposition instructions. If a misfire occurs in which the primer explodes but fails to ignite the powder charge, the pressure chamber must be cleaned before the LET is used. For misfires that are not caused by malfunction of the firing mechanism, notify the ammunition supply point.

6. Have the gunner track and engage targets.

6-11. TRAINING OBJECTIVE 6


TASK: Conduct a LES system checkout.

CONDITIONS: Given LES equipment set up for operation and NAVTRADEV P-6054.

STANDARDS:

1. CONTROL BOX switch indicators give correct indications when placed into operation IAW the TM.

2. Training equipment passes the leak test, or it is replaced IAW the TM.

3. IAW the TM, gas and oxygen lines are purged twice at the beginning of the training exercise.

PERFORMANCE MEASURES:

WARNING: The LES launcher is charged and ready to fire after step 6 is performed.

1. Set the control box switches.

WARNING: Explosive gases are being used. Ensure there are no open flames, sparks, or sources of ignition from the operating area.

2. Perform the control test procedures.

3. Conduct a leak test.

4. Purge the gas and oxygen lines.

5. Install end caps.

6. Press FILL button and arm.

6-12. TRAINING OBJECTIVE 7


TASK: Prepare/operate a LES.

CONDITIONS: On a suitable firing range, given a LES training device in its shipping container, monitoring set, charged oxygen and MAPP bottles, 1 1/8-inch open-/closed-end wrench, launcher support stand, NAVTRADEV P-6054, and the following personnel:

  • Monitoring set operator.
  • Gunner.
  • Loader.
  • Infrared transmitter operator.

STANDARDS:

1. Prepare the LES for operation IAW the TM.

NOTE: The instructor conducts a preoperational inspection of the LES control box and launcher.

2. The LES passes the system checkout IAW the TM.

3. The gunner performs immediate action for a misfire.

PERFORMANCE MEASURES:

1. Have the gunner prepare the LES launcher for operation.

2. Have the loader prepare the LES control box for operation.

a. Place the control box 6 meters (20 feet) from the LES launcher.

b. Install a charged MAPP bottle.

c. Install a charged oxygen bottle.

d. Connect the cable/hose assembly.

WARNING: The monitoring set operator, gunner, and loader must wear ear protection.

3. Have the gunner assume a firing position with the LES.

4. Have the loader prepare the launcher.

5. Have the monitoring set operator prepare the monitoring set.

6. Have the infrared transmitter operator prepare the transmitter set.

7. Have the loader depress the FILL switch and release.

NOTE: Steps 8, 9, and 10 should be performed within 15 seconds after performing step 7.

WARNING: Explosive gases are being used. Ensure there are no open flames, sparks, or sources of ignition from the operating area.

8. Have the loader conduct a test fire and notify the gunner that the LES launcher is ready.

TRAINING NOTE: Ambient temperature and humidity affect LES firing performances. Optimum firing results in the end cap being fragmented, thereby dispersing flour. Set the regulators initially at 16 psi MAPP and 46 psi oxygen, and perform a test fire. If the end caps are shattered, the mixture is correct. If the end caps are expelled intact and an orange flame is observed (indicating fuel rich condition), reduce the MAPP gas setting while holding the oxygen setting constant to a minimum of 14 psi. If still rich, increase the oxygen pressure to a maximum of 50 psi. To reset regulators to a lower pressure, turn the regulator control full counter-clockwise, remove both end caps, depress the FILL switch, install end caps, adjust regulators to new pressure, and proceed to STEP 5.

9. Have the gunner track and engage targets.

NOTE: To repeat the firing exercise, have the loader install new end caps.

WARNING: Before subsequent firings, ensure there is no glowing residue from end caps near either end of the LES launcher tube.

10. Have the gunner perform immediate-action procedures. If a NO FIRE occurs (gases fail to ignite) apply immediate action as follows:

a. Waits five seconds and squeezes the firing mechanism again.

b. If the LES does not fire after the second attempt, the instructor immediately sets the ARM-SAFE switch on the control box to SAFE.

(1) Sets PWR ON-OFF-CHARGE switch to OFF.

WARNING: Do not allow any part of the body to extend in front of or behind the LES launcher while performing the following steps.

(2) Removes both end caps from the launcher and allows a minimum of two minutes for the gases to vent.

(3) Unlatches and reseats the tracker.

(4) After two minutes, reinstalls both end caps.

(5) Sets PWR ON-OFF-CHARGE switch to ON.

(6) Performs BATTERY and GLOW PLUG tests. (See Training Objective 6, Conduct a LES System Checkout.) If the BATTERY TEST indicator does not illuminate, see Table 6-1. If the GLOW PLUG circuit test does not illuminate, set the GLOW PLUG select switch to the alternate circuit and retest. If the light still fails to illuminate, see Table 6-1. Check the oxygen pressure.

(7) If all of the above indications are satisfactory, proceeds to STEP 5 of Table 6-1.

(8) If immediate action does not correct misfire, returns the LES to TSC for maintenance.

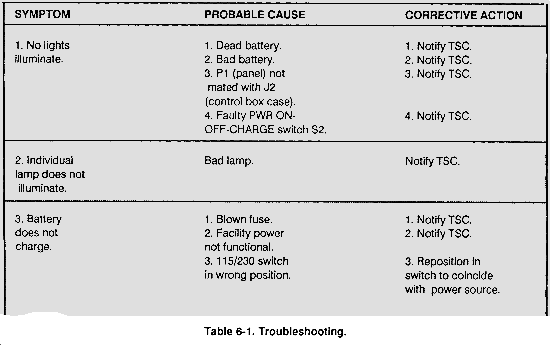

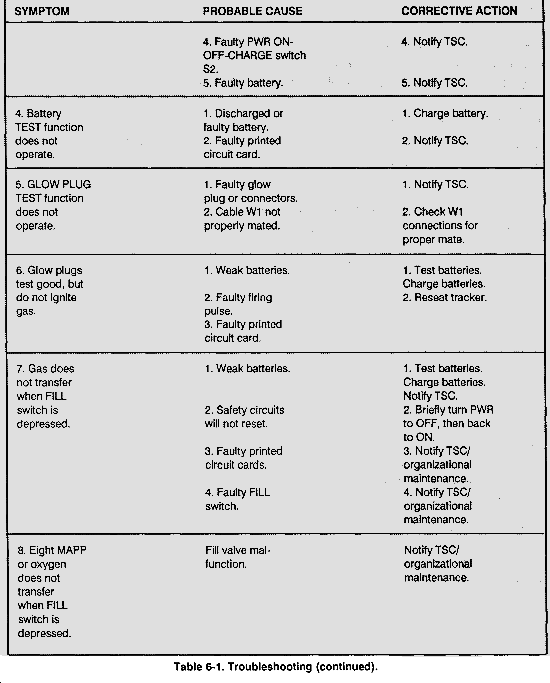

TRAINING NOTE: Table 6-1 lists the items most likely to fail during operation. Most failures cannot be corrected by the instructor. Replace the launcher or control box and notify the TSC or organizational maintenance of the failure when the equipment is turned in.

6-13. TRAINING OBJECTIVE 8


TASK: Conduct a training exercise.

CONDITIONS: Given a LET or LES (on an LET support stand), monitoring set, installed Dragon tracker, operational infrared transmitting set, two operational radios, M64 NATO grenade cartridges or LES end caps, flashlight for night training, TM 9-6920-484-12 or NAVTRADEV P-6054, and the following personnel:

  • Monitoring set operator.
  • Gunner.
  • Loader.
  • Infrared transmitter operator.

STANDARDS:

1. Select a site IAW the TM.

2. Operate the infrared transmitter IAW the TM.

3. Prepare the LET for operation IAW the TM.

4. Score and critique the gunner after each tracking run IAW the performance measures.

TRAINING NOTES:

1. Night training exercises require a flashlight to see the monitoring set panel.

2. When the monitoring set is operated with the TRACKER BIAS switch in manual, the TARGET RANGE switch must be set within one range segment of the actual target range. If the target range is changed more than one range segment, the monitoring set must be realigned IAW the equipment alignment check.

3. Operation of the training equipment for day and night training exercises is the same except for the sight pictures.

PERFORMANCE MEASURES:

1. Select a site.

NOTE: Before operating the training equipment, all personnel must refer to local regulations and SOPs for general safety precautions.

WARNING: The monitoring set operator, gunner, and loader must wear ear protection.

2. Prepare the monitoring set. Before conducting a training exercise, align the monitoring set.

3. Operate the infrared transmitter.

4. Prepare the LET or LES for operation. Ensure that the loader and gunner prepare the LET or LES for operation IAW Training Objective 5, Prepare/Operate a LET, or Training Objective 7, Prepare/Operate a LES; and the appropriate TM.

WARNING: Clear firing line to include checking the backblast area.

5. Perform a training exercise.

a. Have the gunner assume either the sitting, standing supported, or kneeling position.

b. Turn on the monitoring set.

c. Instruct the infrared transmitter operator (for moving target) to start the tracking run.

d. Instruct the gunner to fire when the loader gives an UP signal.

e. Have the monitoring set operator observe the monitoring set control panel after the gunner fires each round and during each tracking run for moving targets. The indicators show how well the gunner performed during each run.

6. Prepare and use the gunner's scorecard.

LINE 1. Identifies the gunner. Fill in all the blocks.

LINE 2. Circle weather condition. Place a check on the appropriate tracker used. Indicate which MOPP level is used (0 through 4). Mark obscuration if any type is used (smoke, dust, and so forth).

LINE 3. Check which type of position is used and if the fire table is for instruction or qualification.

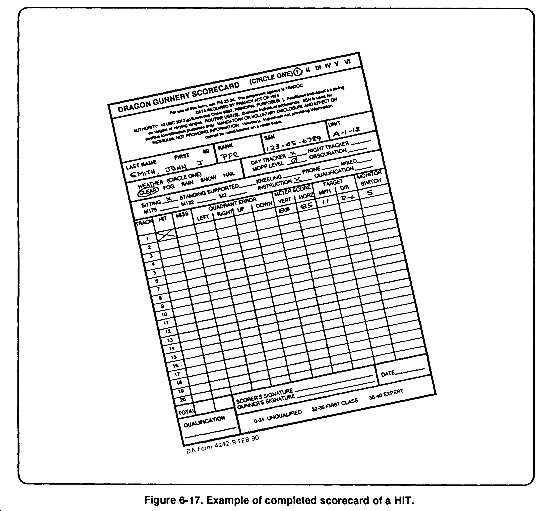

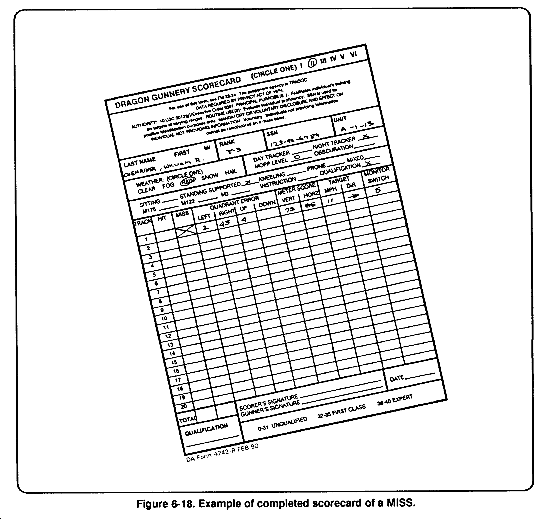

7. Follow the examples on how to complete the scorecard (Figure 6-17 and Figure 6-18). Use DA Form 4242-R, Dragon Gunnery Scorecard, to score and critique the gunner. The blank, reproducible form is at the back of this manual. Gunner must fire both a sitting and standing supported table to achieve a qualification score (Appendix C).

8. Score and critique the gunner. See the following examples for use of the scorecard (Figure 6-17 and Figure 6-18).

EXAMPLE

The following is an example scoring exercise at 500 meters.

For a HIT, see STEPS 1 through 2.

For a MISS, see STEPS 3 through 8.

Indicate the vehicle direction by L-R or R-L (left to right or right to left) or by drawing an arrowing pointing the way the vehicle was traveling.

STEP 1. The HIT indicator is lit, and an X is recorded in the hit column. The gunner's firing position is recorded. (See Figure 6-17.)

STEP 2. Check the score on the TRACKER INDICATOR SCORE meter.

a. Read the vertical (up and down) score by observing the position of the vertical score bar (the bar that runs across the meter) and by reading the number value directly underneath it. That number is written in the VERT column on the scorecard. (The example score is 85.)

b. Read the horizontal (left and right) score by observing the position of the horizontal score bar (the bar that runs up and down) and by reading the number value directly underneath it. That number is written in the HORZ column on the scorecard. (The example score is 85.)

STEP 3. The MISS indicator is on, and an X is recorded in the MISS column. (See Figure 6-18.)

a. The gunner's score is recorded on the scorecard using the TRACKER INDICATOR SCORE meter. (See STEP 2.) (The example score is 75 VERT and 85 HORT.)

b. The gunner's firing position is recorded.

STEP 4. At the end of the run (500 meters, simulated), the monitoring set indicates a MISS, but OFF TARGET indicators are not lit. This means that the gunner was on target at 500 meters but off target at some other range. The TARGET RANGE knob is rotated counterclockwise to 4.

STEP 5. At 400 meters, the MISS indicator is still lit, but the UP and R OFF TARGET indicators are lit. This indicates the gunner was off-target, too high, and to the right of the target at that range. A 4 is written in the UP and RIGHT columns of the scorecard (Figure 6-18). The TARGET RANGE knob is rotated counterclockwise to 3.

STEP 6. At 300 meters, the MISS indicator is still lit, but only the R OFF TARGET indicator is lit. This indicates the gunner was off the target to the right of the target at that range. A 3 is written in the RIGHT column of the scorecard (Figure 6-18). The TARGET RANGE knob is rotated counterclockwise to 2.

STEP 7. At 200 meters, the MISS indicator is still lit, but only the L OFF TARGET indicator is lit. This indicates the gunner was off the target to the left at that range. A 2 is written in the LEFT column of the scorecard (Figure 6-18). The TARGET RANGE knob is rotated counterclockwise to 1.

STEP 8. At 100 meters the MISS indicator is still lit, but OFF TARGET indicators are not lit. This indicates the gunner was on target at that range. Nothing is recorded on the scorecard for this range.

6-14. TRAINING OBJECTIVE 9


TASK: Prepare an M113 APC for Dragon training.

CONDITIONS: Given a LET, monitoring set, Dragon tracker, M175 guided missile launcher mounted on an M113 vehicle, TM 9-6920-484-12, and TM 9-1425-484-10.

STANDARDS:

1. Install the LET in the M175 guided missile launcher using the same procedures as for installing a round IAW TM 9-1425-484-10.

2. Install a Dragon day tracker or night tracker on the LET IAW TM 9-6920-484-12.

3. Place the monitoring set on the ground and attach the W2 cable to monitoring set and LET.

PERFORMANCE MEASURES:

WARNING: Danger zone is the same as for ground-mounted LET training.

1. Prepare the training equipment for operation on an M113 (mounted).

2. Install the LET in the M175 mount using the same procedure as for installing a round.

3. Remove the end cap from the LET.

4. Place the monitoring set on the ground alongside the APC.

5. Ensure that the firing danger zone to the front and rear of the M113 is clear.

6. Check the M113 for the following before any firing exercise:

a. Antennas are down and secured.

b. Driver and cargo hatches closed.

c. All equipment stored on top of vehicles is secured.

d. All other loose equipment or debris is removed.

6-15. TRAINING OBJECTIVE 10


TASK: Prepare training equipment for movement.

CONDITIONS: Upon completion of a training session and with a requirement to return the equipment to the unit or TSC; given LET or LES training devices, monitoring sets, day or night trackers, infrared transmitting set installed on a vehicle, and the following personnel:

  • Monitoring set operator.
  • Gunner.
  • Loader.
  • Infrared transmitter operator.

STANDARDS:

1. When training with the LET, have the--

  • Loader clear and clean the LET and replace the end cap.
  • Gunner return the LET to the shipping container.
  • Monitoring set operator disconnect all cables, and store cables in the monitoring set.
  • Infrared transmitter operator disconnect all cables from power supply/modulator and secure the target board and lamp cover.

2. When training with the LES, have the--

  • Gunner disconnect the W1 cable assembly from the LES and return the LES to the shipping container.
  • Loader remove the oxygen and MAPP gas bottles, and disconnect and store the W1 cable assembly.
  • Monitoring set operator perform the same duties as when training with the LET.
  • Infrared transmitter operator perform the same duties as when training with the LET.

PERFORMANCE MEASURES:

1. Have the loader clear the LET and replace the end cap.

a. Opens the breech and removes any expended/unexpended cartridge, then closes the breech.

b. Removes batteries from the LET.

c. Cleans the LET.

d. Uses LET cleaning rod to reset the weight.

e. Replaces the end cap.

2. Have the gunner store the LET in the shipping container.

a. Disconnects the cable from the monitoring set to the LET, and replaces the dust cover on the LET connector.

b. Removes the day or night tracker and replaces the electrical receptacle cover on both the tracker and LET.

c. Sets the LET on its rear. Folds the bipod and releases the bipod brace. With one hand, holds the forward shock absorber on the forward end of the LET; with the other hand, holds the bipod in a horizontal position.

d. Pushes down hard on the forward shock absorber and slowly lowers the bipod until the forward shock absorber locks in place.

e. Ensures that the hooks of the bipod engage the pins of the forward shock absorber by trying to lift the forward shock absorber.

f. Secures the bipod to the launcher tube with bipod strap.

g. Returns the LET and the LET cleaning brush to the LET shipping container. Closes and secures the lid.

3. Have the monitoring set operator disconnect all cables, and store them in the monitoring set.

a. Places the following MONITORING SET switches in the OFF position.

(1) EXTERNAL.
(2) INTERNAL.
(3) METER.
(4) RECORDER.

b. Disconnects the following cables from the monitoring set and replaces each dust cover.

(1) J1 connector (LET connector).

(2) POWER INPUT.

c. Stores the cables in the monitoring set lid.

(1) Installs the long cables in the cover by winding them over the bungee cords and around the hooks.

(2) Installs the short cables in the center of the cover and secures them with straps.

(3) Secures all cables with the bungee cords.

(4) Closes and secures the lid.

d. Closes the monitoring set. Places the cover on the base and secures the eight latches.

4. Have the infrared transmitter operator disconnect all cables from the PSM and secure the target board and lamp cover.

a. Ensures that the CB1 switch (24-VDC 40A circuit breaker) on the PSM is in the OFF position.

b. Loosens the retaining nut, disconnects the following connectors from the PSM, and replaces the dust covers on connectors.

(1) W1P1 connector from the J2 connector.

(2) W2P1 connector from the W3J1 connector.

(3) W3P1 connector from the J3 connector.

CAUTION: Stow the PSM so that it is stable and cannot fall off the vehicle.

c. Stows the PSM.

(1) Closes and latches the cover on the PSM.

(2) Removes the vehicle safety strap from the handle of the PSM.

(3) Stows the PSM on the floor of the vehicle.

d. Secures the target board.

(1) Ensures that the adjusting clamp is locked.

(2) Ensures that the three locking assemblies are in the locked position.

(3) Replaces the target board lamp cover and secures it with the four latches by pushing in on each latch and turning to the right.

5. Have the gunner disconnect the W1 cable assembly from the LES and store the LES in the shipping container.

6. Have the loader remove the oxygen and MAPP gas bottles and disconnect and store the W1 cable assembly.

a. Purges the gas and oxygen lines.

b. Stores the cable/hose assembly.

WARNING: Do not remove connectors permanently installed on the launcher.

c. Removes the oxygen bottle.

d. Removes the MAPP bottle.

e. Secures the oxygen and MAPP bottles for travel IAW TSC SOP.

7. Have the monitoring set operator disconnect all cables, and store them in the monitoring set.

8. Have the infrared transmitter operator disconnect all cables from the PSM and secure the target board and lamp cover.

6-16. TRAINING OBJECTIVE 11


TASK: Charge the monitoring set batteries.

CONDITIONS: Given a 24-VDC, 115-VAC, or 230-VAC power source, monitoring set with cables, and TM 9-6920-484-12.

STANDARDS: Charge the monitoring set batteries for 16 hours IAW the TM.

TRAINING NOTES:

1. The nickel cadmium batteries in the monitoring set, when fully charged and operated under normal conditions, provide 200 or more tracking runs before recharging is needed. They provide a minimum of 100 tracking runs under unusual conditions such as extreme weather.

2. Battery efficiency and operating time are reduced if partly discharged batteries are recharged needlessly.

3. When the temperature is from 54 to 110 degrees Fahrenheit (from 12 to 43 degrees Celsius), 16 hours of charging time is needed to bring batteries from a discharged state to a full charge.

PERFORMANCE MEASURES:

1. Charge the batteries if the meter needle on the monitoring set is in the lower one-third of the yellow band when the METER switch is placed in the + VOLTS or -VOLTS position.

2. Prepare the monitoring set for battery charging.

3. Select the appropriate connecting power cable.

4. Set the EXTERNAL POWER switch to the correct position.

5. Set the METER selector switch to the AMPS position.

6. Check for charged batteries.

7. Perform shutdown procedures.

6-17. TRAINING OBJECTIVE 12


TASK: Perform operator maintenance on a LET.

CONDITIONS: Given a LET, cleaning rod, small-arms chamber brush, rags, soapy water, bucket, LET support stand, and TM 9-6920-484-12.

STANDARDS:

1. Conduct an inspection of the LET IAW the TM.

2. Clean the LET IAW the TM.

a. After 100 rounds, clean with a dry cleaning brush.

b. Clean the cartridge chamber with the cartridge chamber brush.

c. Disassemble and clean at the end of each day's operation.

d. Assemble and conduct an operation check.

PERFORMANCE MEASURES:

1. Conduct an inspection of the LET.

a. Inspect the external surface for accumulation of dirt, oil, grease, or other foreign material, and then clean. Inspect for punctures and dents.

b. Inspect shock absorbers for punctures, cracks, dents, and distortions. Check rear shock absorbers for loose mounting pins.

c. Inspect the retaining strap and sling for rips, tears, and serviceability.

d. Unfasten the bipod retaining strap, remove the forward shock absorber, and extend the bipod legs. Ensure that there is no binding and that the forward brace locks in position. Ensure that the bipod swivels 45 degrees to either side and realigns to the center position when released. Ensure that the friction brake locks at random positions. Ensure that the leg assembly extension foot mountings extend properly and lock at random positions.

e. Place the LET on a support stand.

f. Inspect the battery compartment.

(1) Inspect the battery access cover for security and seal. Remove the battery access cover and check for retaining cables.

(2) Inspect inside the battery compartment for corrosion on the battery contacts and battery tubes.

(3) Replace the battery access cover.

g. Check the thumbscrews for operation.

h. Inspect the tracker support assembly and connector for loose or missing mounting screws. Inspect the spring retainer clip for loose or missing rivets. Remove the tracker support electrical connector cover. Inspect the electrical connector for bent or broken contacts. Inspect the cover for cracks and replace electrical connector cover after inspection.

i. Remove and inspect the rear closure and end cap assembly. Check for blistered or chipped paint and for loose or bent studs. Inspect for punctures, cracks, and dents.

2. Disassemble the LET for cleaning.

3. Check and clean the receiver.

4. Extend the LET bipod.

5. Remove, check, and clean the forward shock absorber.

6. Remove and clean the dummy weight.

7. Clean the pressure tube.

8. Reassemble the LET.

9. Conduct an operational check.

6-18. TRAINING OBJECTIVE 13


TASK: Conduct a preoperational inspection of MILES Dragon equipment.

CONDITIONS: On a suitable range or training site, given a complete MILES Dragon system and either TM 9-1265-368-10-1 or GTA 25-6-9.

STANDARDS:

1. Perform a preoperational inspection before operating the MILES Dragon IAW the TM.

2. Conduct the preoperational inspection IAW the TM.

3. Report any deficiencies.

PERFORMANCE MEASURES:

1. Check the battery box to ensure that it is serviceable and does not contain a battery.

2. Check the bipod legs that are folded under the device for carrying. Check to see that they can be adjusted for height and that the left leg is adjustable to compensate for the offset of the tracker.

3. Check the weapon's key receptacle in front of the tracker head.

4. Check the laser transmitter lens next to the weapon's key receptacle and the ROUNDS REMAINING display button immediately above it.

5. Check the gunner's optical sight in the tracker head.

6. Check the trigger mechanism on the side of the tracker head.

7. Check the rounds remaining display window in the rear of the tracker head. The MILES Dragon should have a stored basic load of four rounds.

8. Inspect the entire launch tube to make sure there is no obvious damage on the outside.

9. Check the ATWESS PULL-TO-ARM switch and the ATWESS firing chamber at the rear of the device.

10. Ensure that the MILES Dragon carrying strap is present.

6-19. TRAINING OBJECTIVE 14


TASK: Place a MILES Dragon system into operation.

CONDITIONS: On a suitable range or training site, given a complete MILES Dragon system that has had a preoperational inspection conducted, and either TM 9-1265-368-10-1 or GTA 25-6-9.

STANDARDS: Place the MILES Dragon into operation IAW the TM.

PERFORMANCE MEASURES:

1. Insert a battery.

2. Check the ROUNDS REMAINING display (troubleshooting).

3. Check the laser transmitter.

6-20. TRAINING OBJECTIVE 15


TASK: Operate a MILES Dragon system.

CONDITIONS: On a suitable range or training site, given a complete MILES Dragon system prepared for operation.

STANDARDS: Safely operate a MILES Dragon system IAW TM 9-1265-368-10-1.

TRAINING NOTES:

1. The MILES Dragon has a maximum range of 1,000 meters and a minimum arming range of 65 meters. It has a fixed tracking time of seven seconds, regardless of the distance to the target. There is a one-second launch delay and six seconds of tracking. A firing light indicator is in the ROUNDS REMAINING display window. This small red dot will appear as a round is fired. Keep the cross hairs on the target for 50 percent of the time or longer for the first four seconds of track time and 90 percent of the time or longer the last two seconds of track time. With a guided missile, the last two seconds of track time are the most critical.

2. If a HIT is obtained with a MILES Dragon, the probability of killing an APC is 98 percent and killing a tank is 76 percent. If the MILES Dragon is killed during the exercise, deactivate the MILES Dragon with the yellow key. This makes the MILES Dragon inoperable.

3. The assistant waits until after the gunner has acquired a target to load an ATWESS device. The assistant then checks the backblast danger zone before pulling the PULL-TO-ARM switch.

PERFORMANCE MEASURES:

1. Target range is 65 to 1,000 meters.

2. Tracking time is one-second delay six seconds for tracking.

3. Firing light indicator is checked for the remaining rounds.

4. Target tracking is 50 percent: four seconds; 90 percent: two seconds.

5. Probability of kill is APC, 98 percent; tank, 76 percent.



NEWSLETTER
Join the GlobalSecurity.org mailing list
