APPENDIX D
Battalion Level Radio Nets
Maneuver Battalions
Figures D-1 through D-14 show the maneuver battalion down to and including the tank and rifle platoon radio nets.

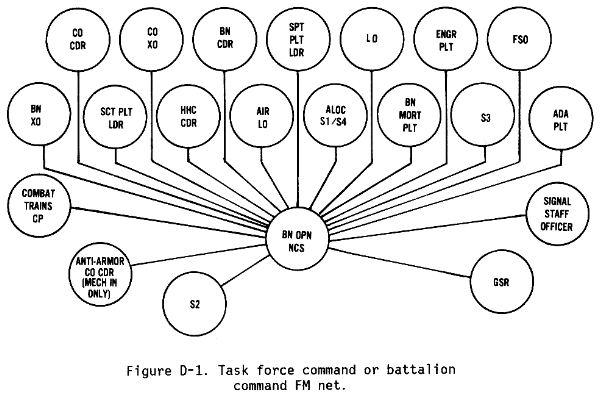

Figure D-1. Task force command or battalion command FM net.

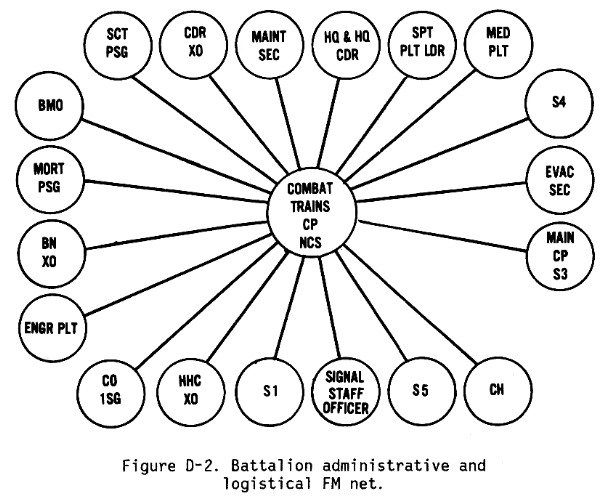

Figure D-2. Battalion administrative and logistical FM net.

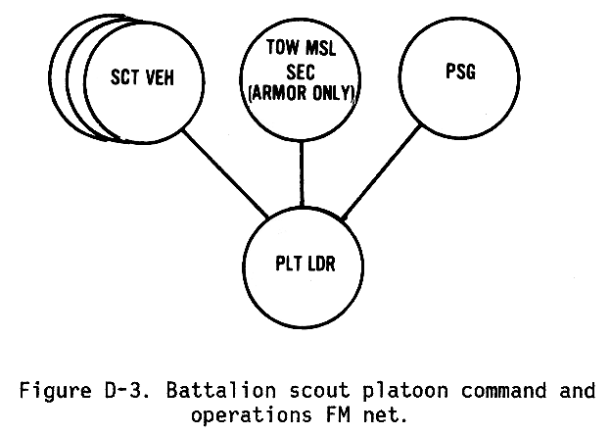

Figure D-3. Battalion scout platoon command and operations FM net.
Figure D-4. The battalion/task force operations/intelligence FM net.
Figure D-5. Heavy anti-armor company command and operations net.

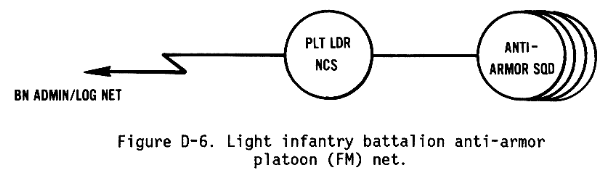

Figure D-6. Light infantry battalion anti-armor platoon (FM) net.

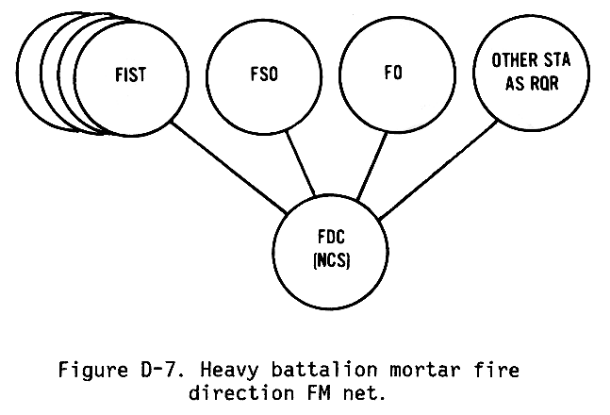

Figure D-7. Heavy battalion mortar fire direction FM net.

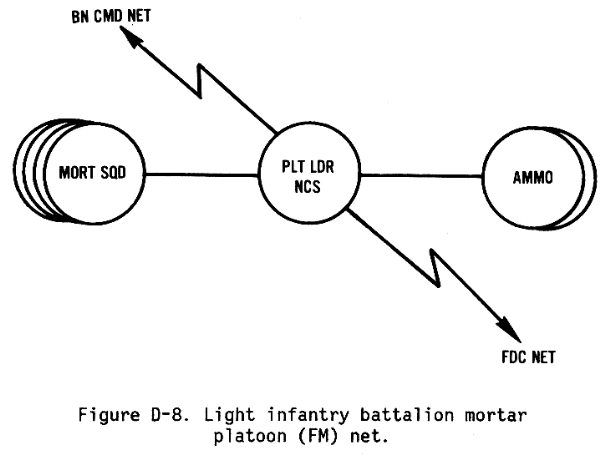

Figure D-8. Light infantry battalion mortar platoon (FM) net.

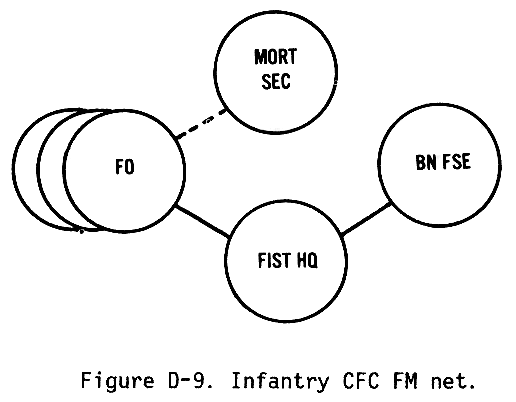

Figure D-9. Infantry CFC FM net.

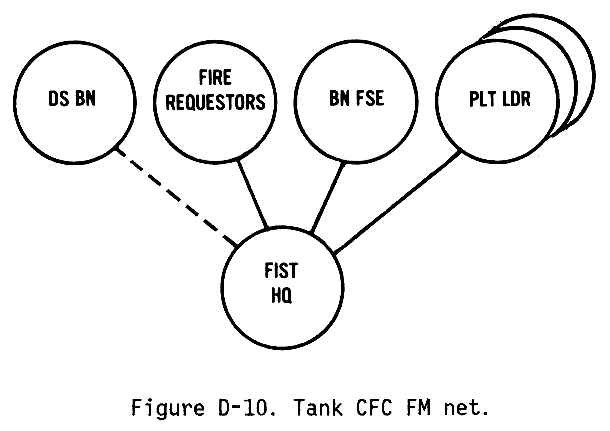

Figure D-10. Tank CFC FM net.

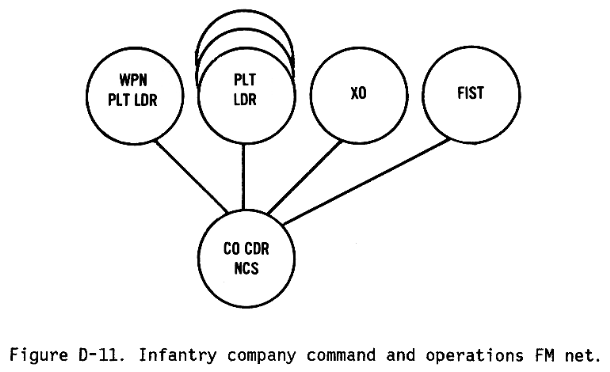

Figure D-11. Infantry company command and operations FM net.

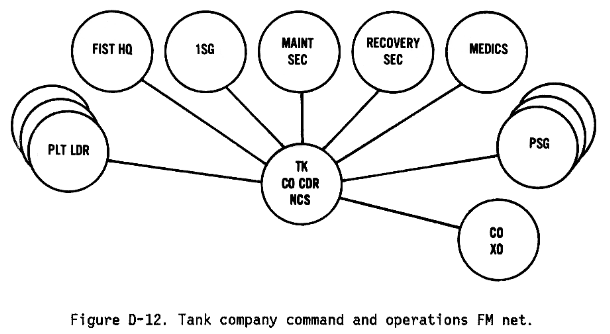

Figure D-12. Tank company command and operations FM net.
Figure D-13. Tank platoon command and operations FM net.

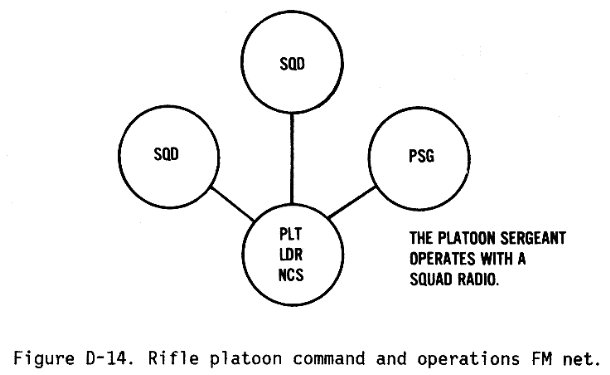

Figure D-14. Rifle platoon command and operations FM net.
Engineer Battalion
Figures D-15 through D-26 show the engineer battalion down to and including the platoon radio nets.

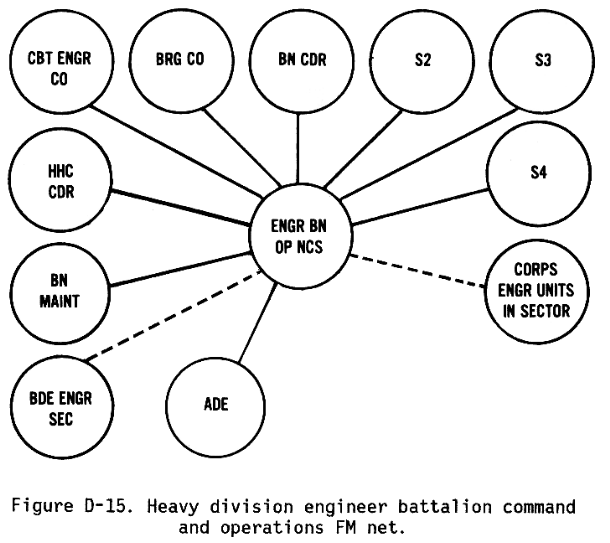

Figure D-15. Heavy division engineer battalion command and operations FM net.

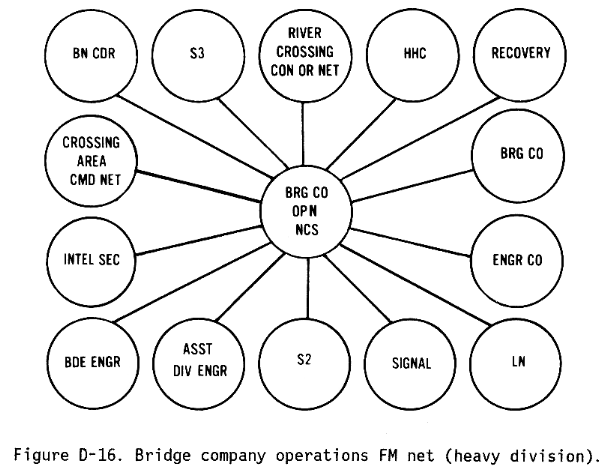

Figure D-16. Bridge company operations FM net (heavy division).
Figure D-17. Bridge platoon command FM net (heavy division).

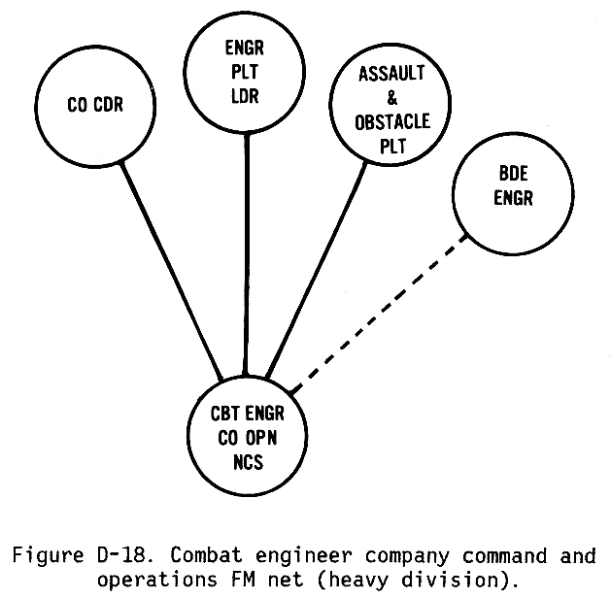

Figure D-18. Combat engineer company command and operations FM net (heavy division).

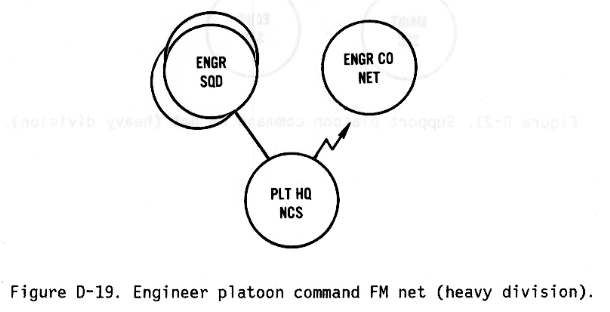

Figure D-19. Engineer platoon command FM net (heavy division).
Figure D-20. Assault and obstacle platoon FM net (heavy division).

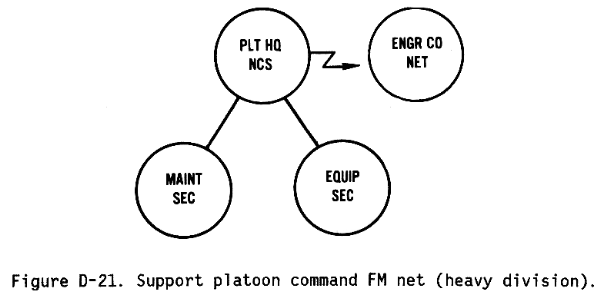

Figure D-21. Support platoon command FM net (heavy division).

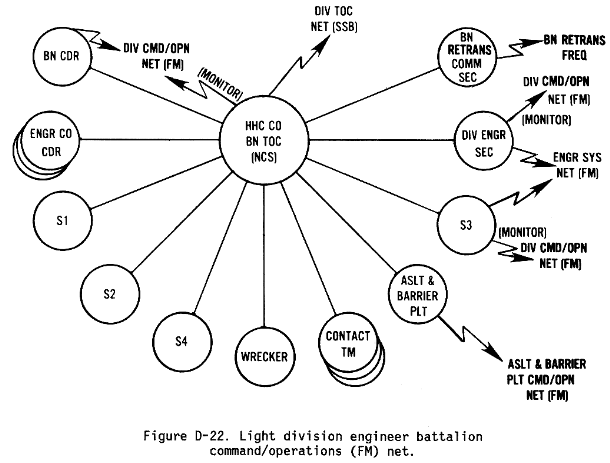

Figure D-22. Light division engineer battalion command/operations (FM) net.

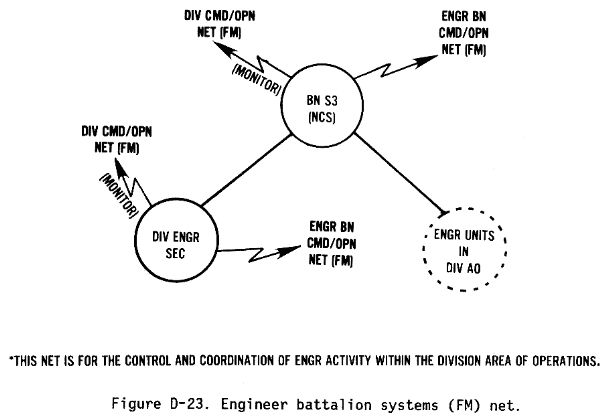

Figure D-23. Engineer battalion systems (FM) net.

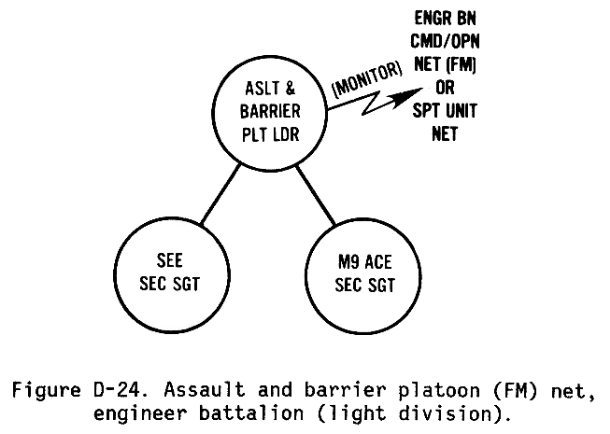

Figure D-24. Assault and barrier platoon (FM) net, engineer battalion (light division).

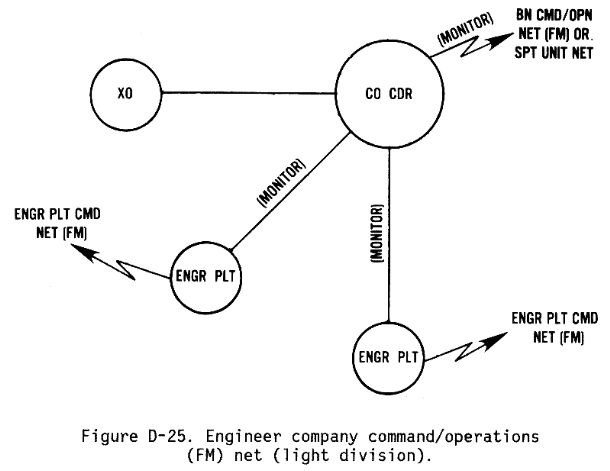

Figure D-25. Engineer company command/operations (FM) net (light division).

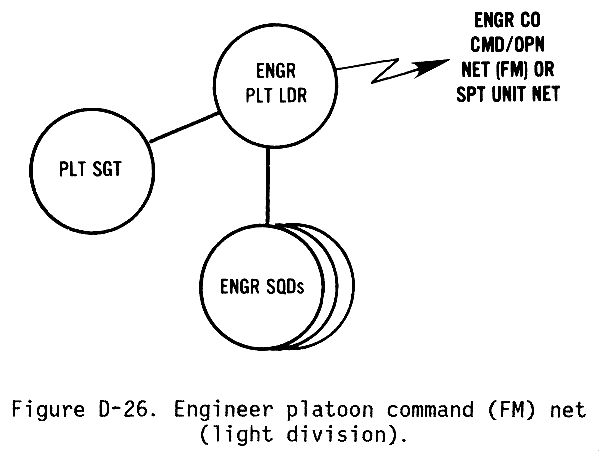

Figure D-26. Engineer platoon command (FM) net (light division).
ADA Battalion
Figures D-27 through D-39 show the ADA battalion radio nets.

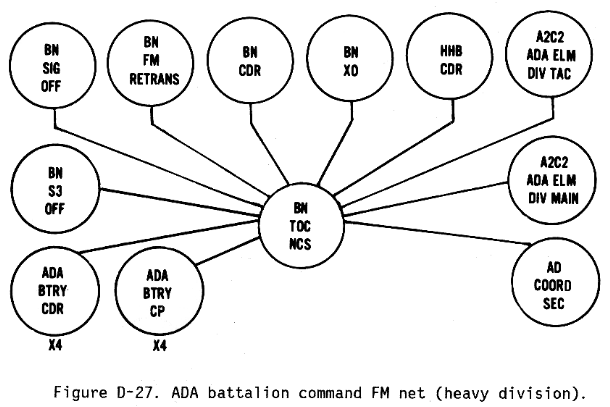

Figure D-27. ADA battalion command FM net (heavy division).
Figure D-28. ADA battalion command (FM) net (light division).

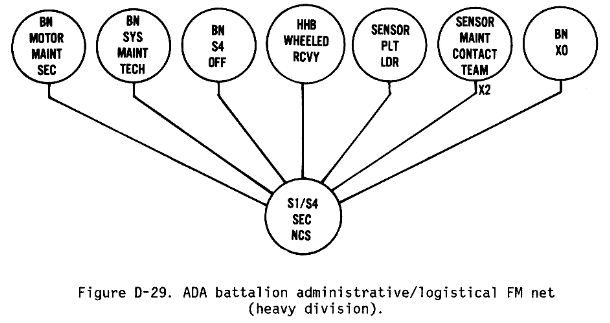

Figure D-29. ADA battalion administrative/logistical FM net (heavy division).

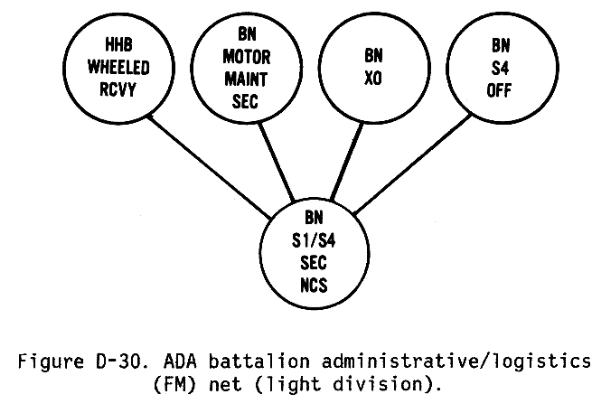

Figure D-30. ADA battalion administrative/logistics (FM) net (light division).

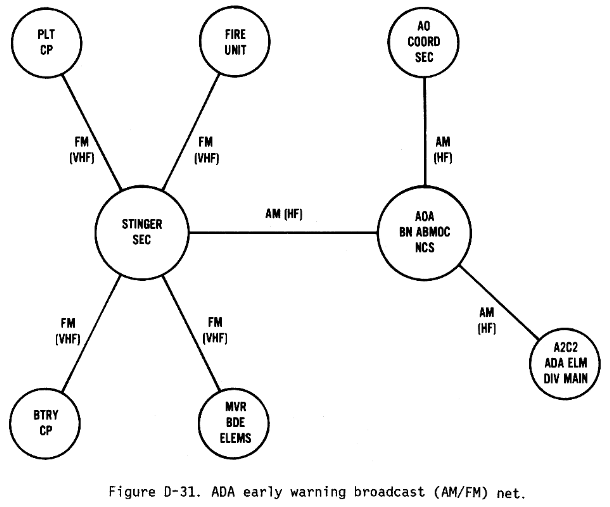

Figure D-31. ADA early warning broadcast (AM/FM) net.

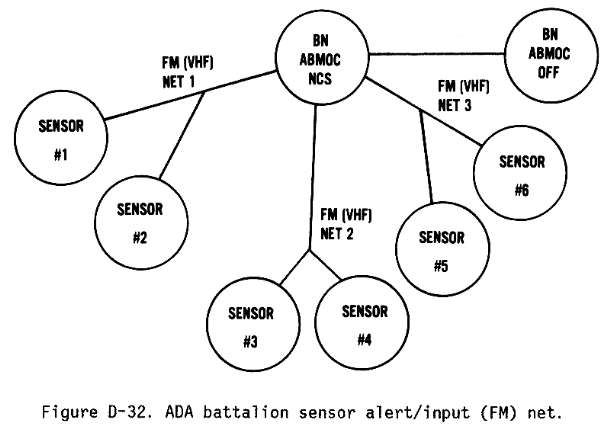

Figure D-32. ADA battalion sensor alert/input (FM) net.

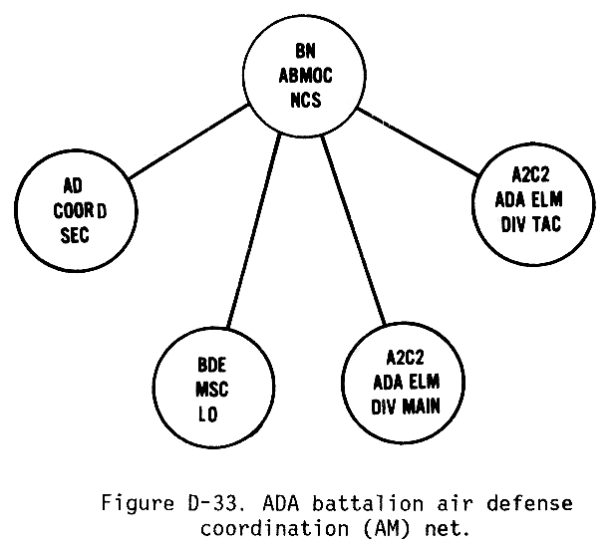

Figure D-33. ADA battalion air defense coordination (AM) net.
Figure D-34. Sensor platoon command (FM) net (heavy division).

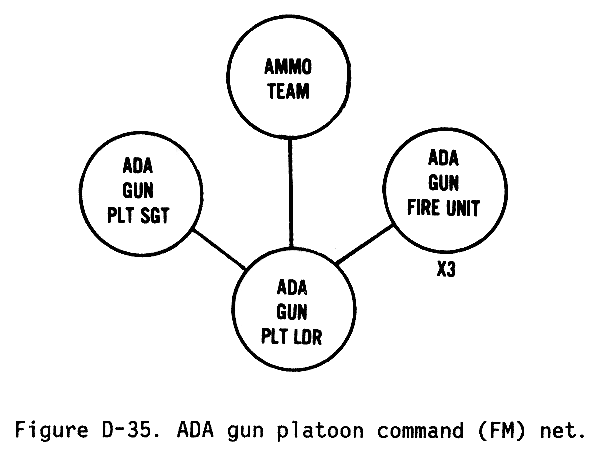

Figure D-35. ADA gun platoon command (FM) net.

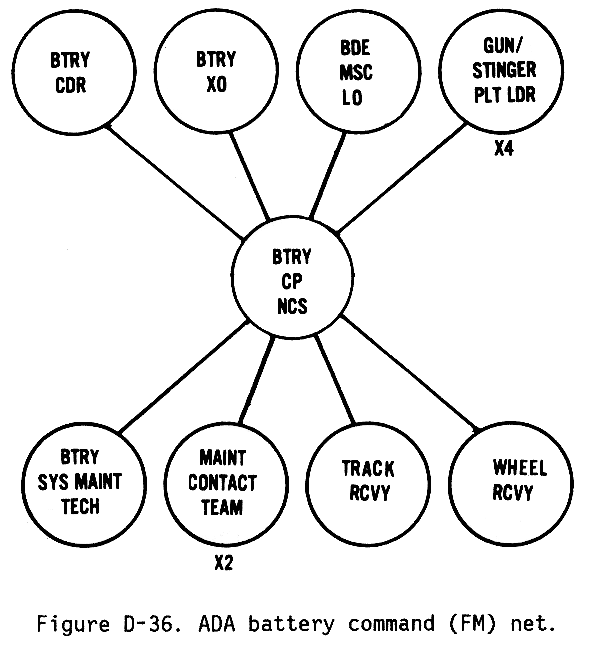

Figure D-36. ADA battery command (FM) net.

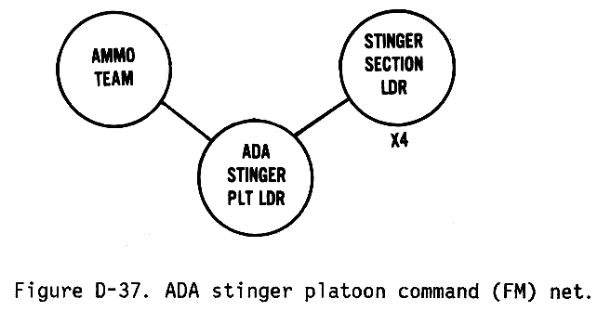

Figure D-37. ADA stinger platoon command (FM) net.
Figure D-38. ADA stinger section command (FM) net.

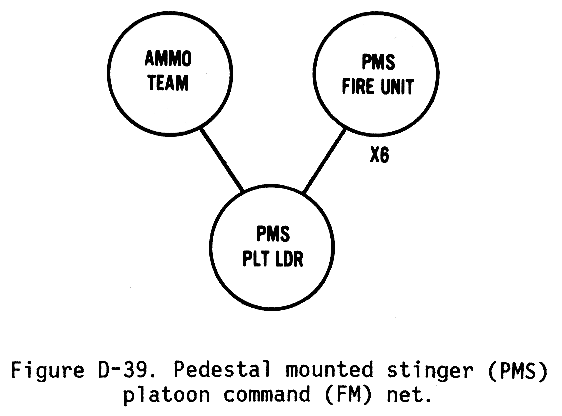

Figure D-39. Pedestal mounted stinger (PMS) platoon command (FM) net.
MI Battalion
The MI battalion radio nets are operated to collect and disseminate intelligence for the division. Figures D-40 through D-46 show the radio nets.

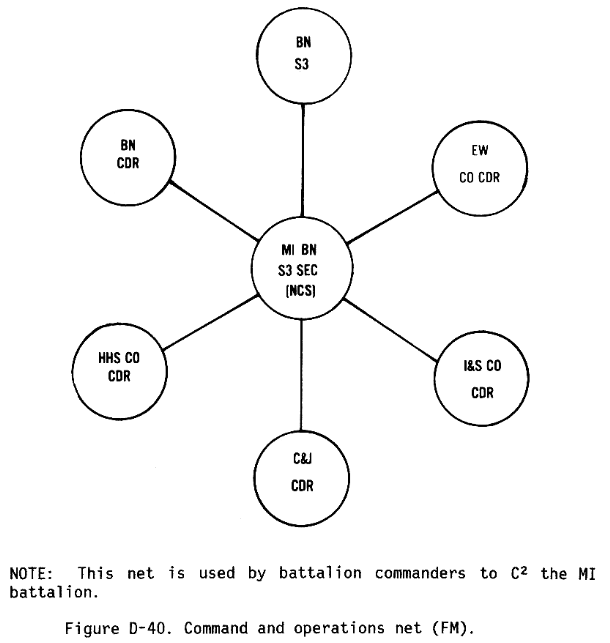

Figure D-40. Command and operations net (FM).

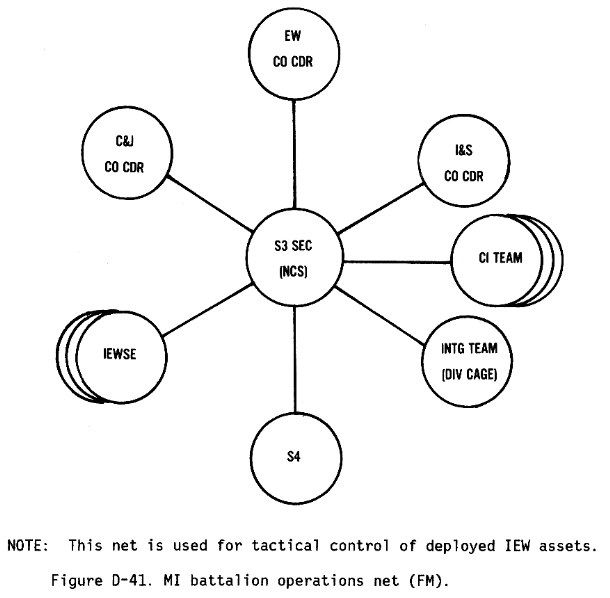

Figure D-41. MI battalion operations net (FM).

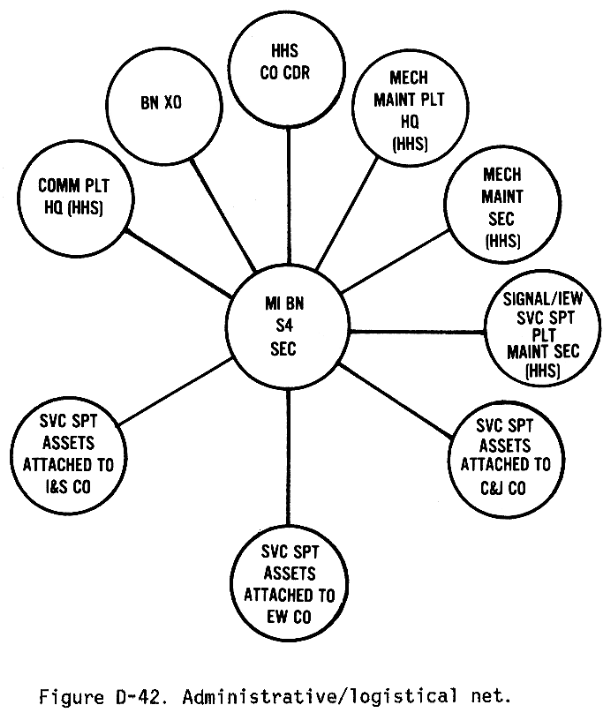

Figure D-42. Administrative/logistical net.

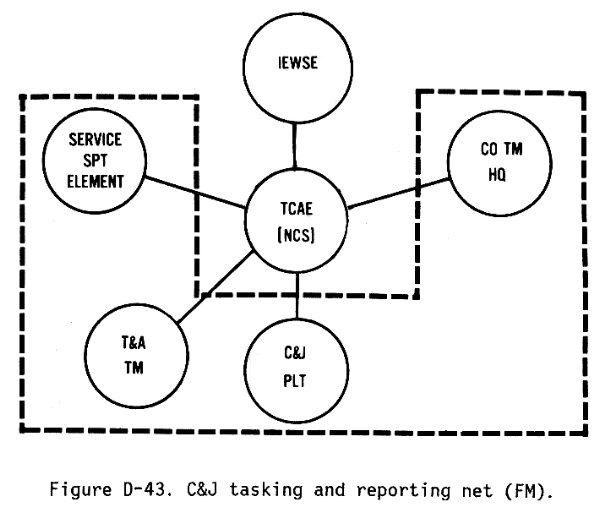

Figure D-43. C&J tasking and reporting net (FM).

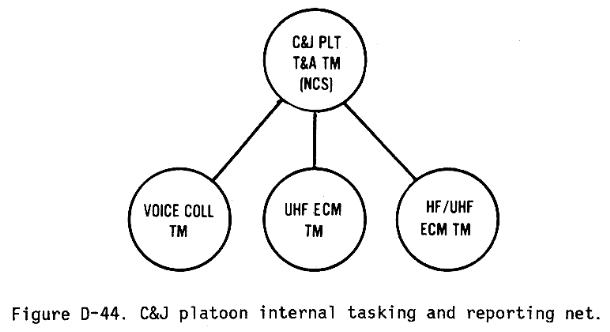

Figure D-44. C&J platoon internal tasking and reporting net.

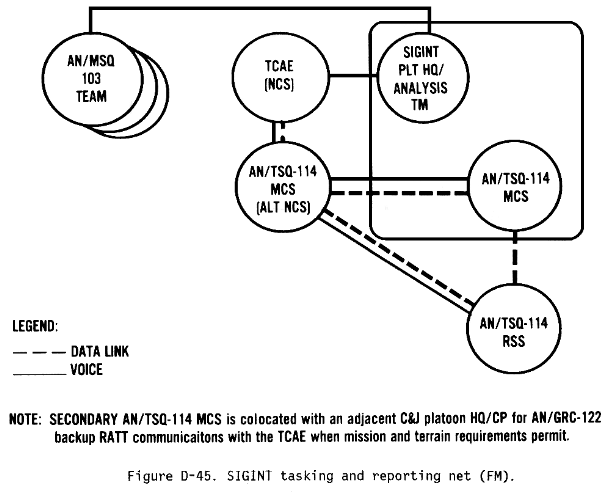

Figure D-45. SIGINT tasking and reporting net (FM).

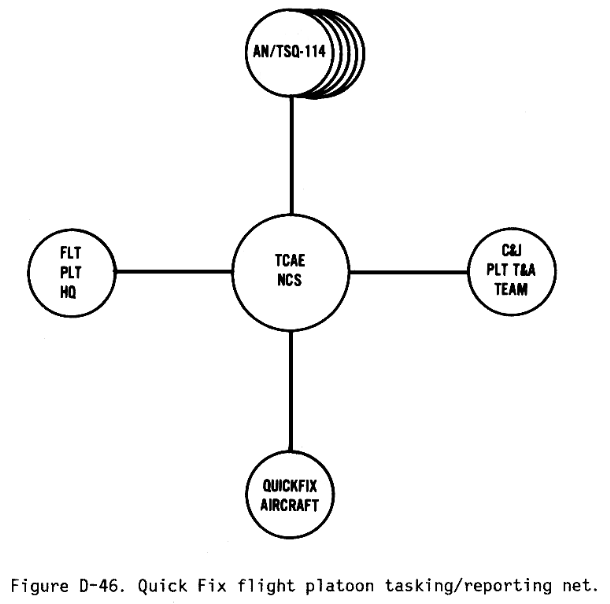

Figure D-46. Quick Fix flight platoon tasking/reporting net.
MP Company
Figures D-47, D-48, D-49 and D-50 show the MP company radio nets.

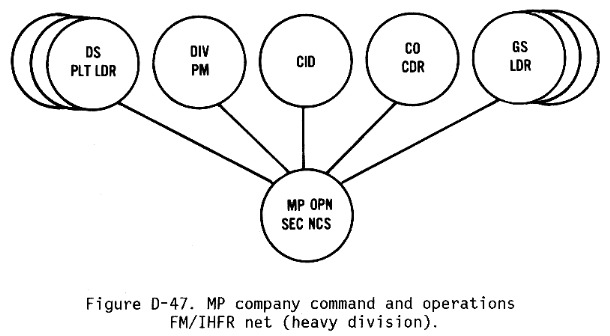

Figure D-47. MP company command and operations FM/IHFR net (heavy division).

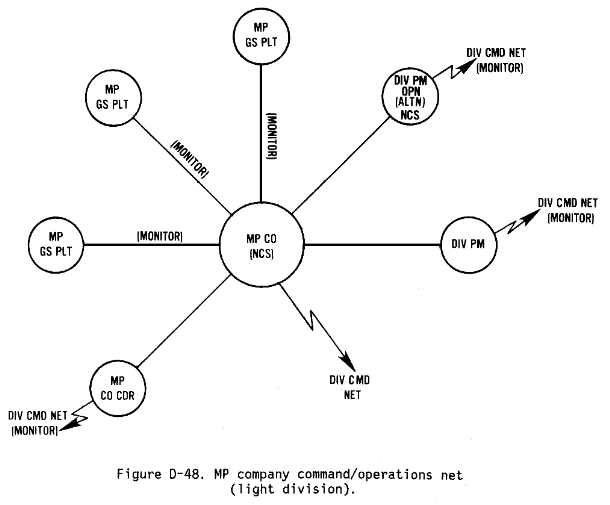

Figure D-48. MP company command/operations net (light division).

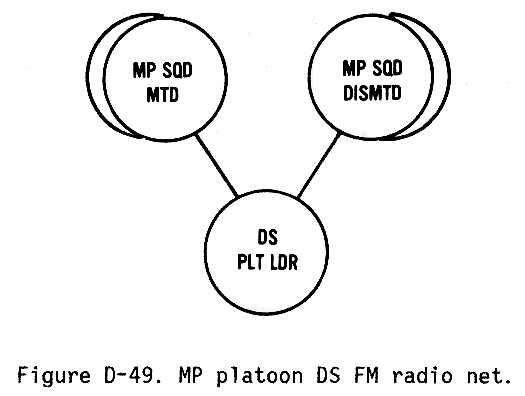

Figure D-49. MP platoon DS FM radio net.

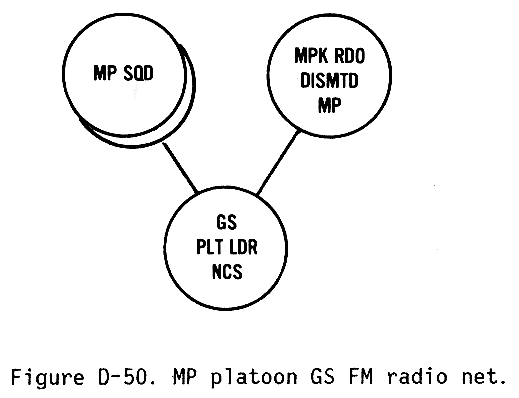

Figure D-50. MP platoon GS FM radio net.
Chemical Company
Figures D-51, D-52, and D-53 show the chemical company radio nets.

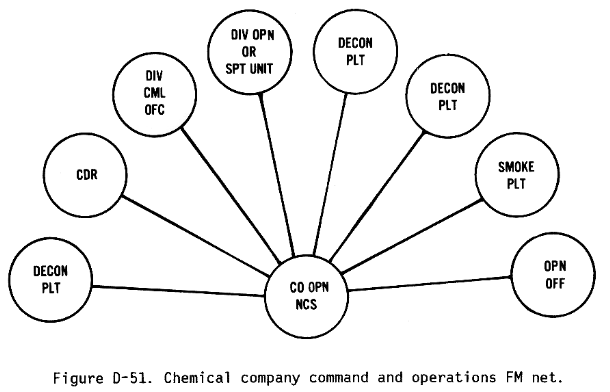

Figure D-51. Chemical company command and operations FM net.

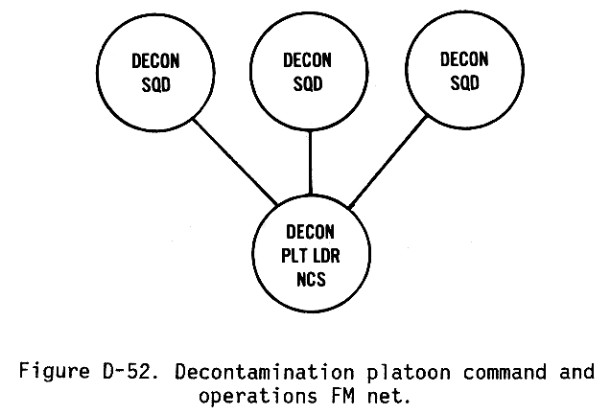

Figure D-52. Decontamination platoon command and operations FM net.

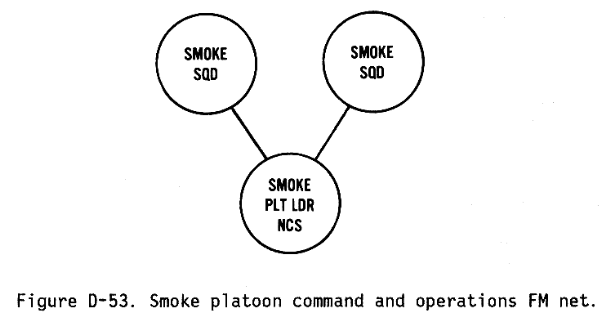

Figure D-53. Smoke platoon command and operations FM net.
|
