FACSIMILE

The following is a checklist for facsimile operation. The operator must--

• Ensure that the DNVT/DSVT is affiliated.

• Ensure that the facsimile is properly connected to the DNVT/DSVT.

• Preset the switches on the facsimile.
  - Unlock the carriage lock handle.
  - Set the MODE switch to COMP FEC.
  - Set the ANLG/DIGITAL switch to DIGITAL.
  - Set the HI RES LO SP/HI SP LO RES switch as needed. (This setting is determined by the document being transmitted.)
  - Set the GRAY/B/W switch as needed.
  - Set the NATO switch to the LDF position.

• Turn on the power (push IN on POWER switch).

• Press the PAPER RELEASE lever and insert paper to transmit slot.

• Place the paper text side up lengthwise into facsimile.

• Set the margins.

• Press the MEMORY LOAD button.

• Remove the paper when the scan is finished.

• Verify that the MEMORY LOAD indicator is lit.
  - Insert the copy set page into the facsimile to make a copy. (If using carbon, place it on top of the blank page and insert both.)
  - Set the margins.
  - Press the SELF TEST switch.

• Contact the receiving station over the DNVT/DSVT to send the copy.

• Ensure that the distant-end operator has the switches set in the same mode of operation as the sending machine.

• Instruct the distant-end operator to press the RECEIVE button.

• Press the TRANSMIT button. (The distant-end operator prints the message after it is received.)

CT, AN/UGC-144. This is a digital communications terminal that provides single-subscriber operation. When in a network, the unit has a full-duplex asynchronous communications capability. It has the ability to access the automatic digital network (AUTODIN) and can monitor narrative message traffic in the U (unclassified), R (routine), and Y (emergency command precedence, usually seen as TOP SECRET/sensitive compartmented information (TS/SCI)) communities. The CT is a medium-speed device that includes interface data, power supply, and control mechanisms. See Figure 3-39.

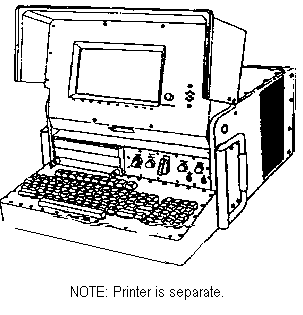

Figure 3-39. CT, AN/UGC-144.
Technical Features:
TERMINAL:

• Voltage input: 100/130 VAC, 48/63 Hz, or 200/ 260 VAC, 48/63 Hz.

• Consumption: 93 watts.

• Weight: 55 pounds.
  PRINTER:

• Speed: 150/240 cps.

• Voltage input: 100/130 VAC, 48/63 Hz.

• Consumption: 13-watt average.


The CT is typically found in military intelligence units and division, corps, and theater headquarters. Figure 3-40 shows a configuration of CT communications via MSE.

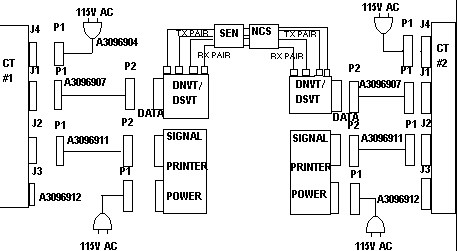

Figure 3-40. CT communications via MSE.
