MSE STANDARD DATABASE
Function. The MSE standard database is loaded by the software in the NC switch and LEN switch. This database is standardized for every NC to maintain consistency throughout the MSE network. The standardized setup means that each DTG entering the NC switch is assigned its own specific trunk group cluster (TGC) number and trunk encryption device (TED). This particular DTG has the same TGC and TED at every NC in the MSE system. Also, each MDTG will always contain the same three DTGs. However, since the needs of each NC differ, modify the database when the situation dictates.
Assigning DTGs affects the NC site layout for cabling and antenna configurations, since each LOS(V)3 shoots to the same type of sites. Figure 3-20 shows the standard database configuration for the NC switch. Figure 3-21 shows the standard database configuration for the LEN switch. Table 3-5 shows commonly used COMSEC keys required for the initialization of the MSE system.

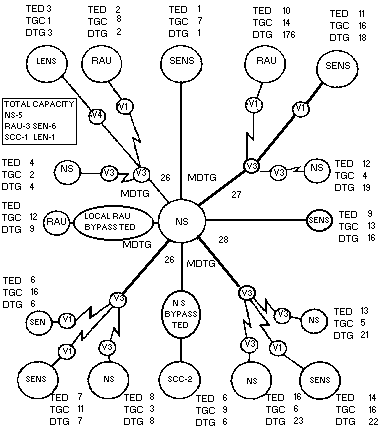

Figure 3-20. NC switch DTG/TGC standard database.

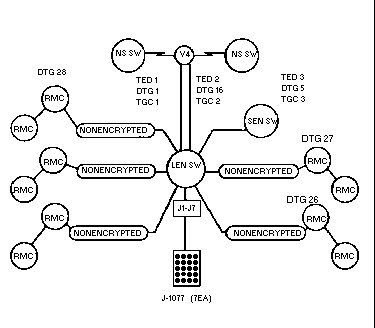

Figure 3-21. LEN switch DTG/TGC standard database.

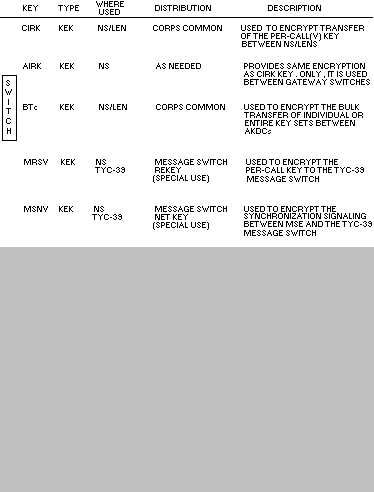

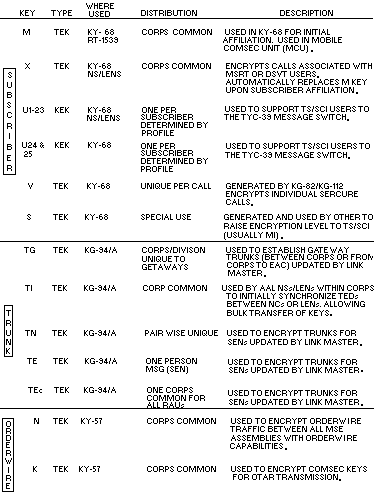

Table 3-5. COMSEC keys initialization chart.
