LIGHT CONTINGENCY COMMUNICATIONS PACKAGE
Light Contingency Communications Package (LCCP). The LCCP consists of two basic elements--
- One CCPS which combines the essential functions of
the NC switch/LEN/NMF shelters and a RAU in a single
FES shelter and an LOS(V)X.
- Two light contingency communications extension
switches (LCCESs).

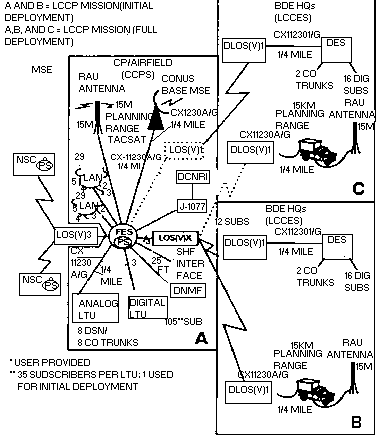

A typical LCCP contingency mission (initial deployment) can be airlifted in two C-141B sorties. See Figures 3-17A, B, 3-18, and 3-19.
Light Communications Contingency Extension Switch (LCCES). This switch performs functions similar to the CCES in the CCP. The main differences between the LCCES and the CCES is that the LCCES' equipment is dismountable, unlike the CCES' equipment.
This subsystem differs considerably when compared to its counterpart the CCP. The major differences are that all the equipment is dismountable and the switch is a DES (essentially half a SEN switch); there are no shelters, and the only vehicle is the cargo vehicle and its trailer which are required to carry the dismounted equipment.

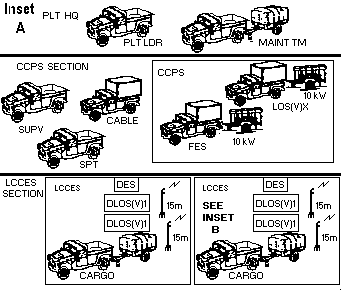

Figure 3-17A. Light contingency communications platoon.
Legend
- LOS(V)X = LOS W/ 3 COMPLETE GRC-226 RADIO SETS
- DLOS(V)1 = DISMOUNTED LOS(V)1
-
SORTIE #1:
- 1 FES W/ 10kW GEN
- 1 TACSAT W/ 10kW GEN
- 1 TACSAT SPT VEHICLE W/ CARGO TRAILER
SORTIE #2:
- 1 LOS(V)X W/ 10kW GEN
- 1 LCCP SPT VEHICLE W/ CARGO TRAILER
- 1 FES W/ 10kW GEN
Legend
- LOS(V)X = LOS W/ 3 COMPLETE GRC-226 RADIO SETS
- DLOS(V)1 = DISMOUNTED LOS(V)1
-
SORTIE #1:
- 1 FES W/ 10kW GEN
- 1 TACSAT W/ 10kW GEN
- 1 TACSAT SPT VEHICLE W/ CARGO TRAILER
SORTIE #2:
- 1 LOS(V)X W/ 10kW GEN
- 1 LCCP SPT VEHICLE W/ CARGO TRAILER
- 1 FES W/ 10kW GEN
