CONTINGENCY COMMUNICATIONS PACKAGE

Contingency Communications Package (CCP). A CCP consists of four basic elements:
  • One contingency communications parent switch (CCPS) which combines the essential functions of the NC switch/LEN/NMF shelters and a RAU in a single FES shelter and an LOS(V)TRC-198; the FES supports 25 affiliated mobile subscribers.
  • Two contingency communications extension switches (CCESs), which include an FES and a dismounted LOS (DLOS).
  • One extra dismounted extension switch (DES), which is essentially an "unsheltered" SEN switch with half its capacity and an extra DLOS.
The FES interfaces with an SCC-2, the AN/TYC-39 message switch, the AN/TTC-39A and the AN/TTC-39D circuit switches, the NAI, and the DNI.

A typical CCP mission (initial deployment) can be airlifted in two C-141B sorties. See Figures 3-12A, B, C, 3- 13, and 3-14.

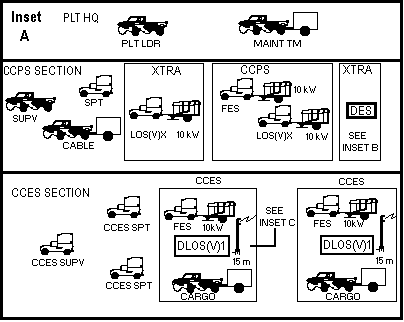

Figure 3-12A. Contingency communications platoon.
Legend

  • LOS(V)X = LOS W/ 3 COMPLETE GRC-226 RADIO SETS
  • DLOS(V)1 = DISMOUNTED LOS(V)1

Initial Deployment
    SORTIE #1:
  • 1 FES W/ 10kW GEN
  • 1 TACSAT W/ 10kW GEN
  • 1 TACSAT SPT VEHICLE W/ CARGO TRAILER
    SORTIE #2:
  • 1 LOS(V)X W/ 10kW GEN
  • 1 CCP SPT VEHICLE W/ CARGO TRAILER
  • 1 FES W/ 10kW GEN

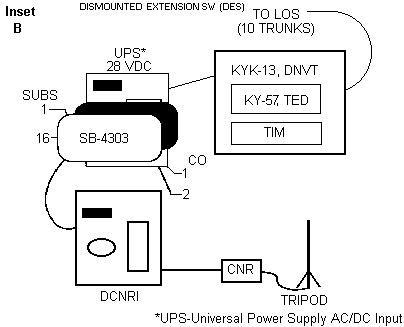

Figure 3-12B. Contingency communications platoon.
Legend
  • LOS(V)X = LOS W/ 3 COMPLETE GRC-226 RADIO SETS
  • DLOS(V)1 = DISMOUNTED LOS(V)1

    Initial Deployment
    SORTIE #1:

  • 1 FES W/ 10kW GEN
  • 1 TACSAT W/ 10kW GEN
  • 1 TACSAT SPT VEHICLE W/ CARGO TRAILER
    SORTIE #2:
  • 1 LOS(V)X W/ 10kW GEN
  • 1 CCP SPT VEHICLE W/ CARGO TRAILER
  • 1 FES W/ 10kW GEN

Continue with Chapter 3
