APPENDIX B
AIRCRAFT ARMING AND SAFING SIGNALS
This appendix shows a graphic portrayal of aircraft arming and safing signals (Figure B-1). Signals from the arming and safing supervisor should be held in the position shown until the particular action (arming, safing, stray voltage) is completed. Figure B-2 shows the standardization of wands for arming and dearming personnel. Figure B-1 begins on the following page.

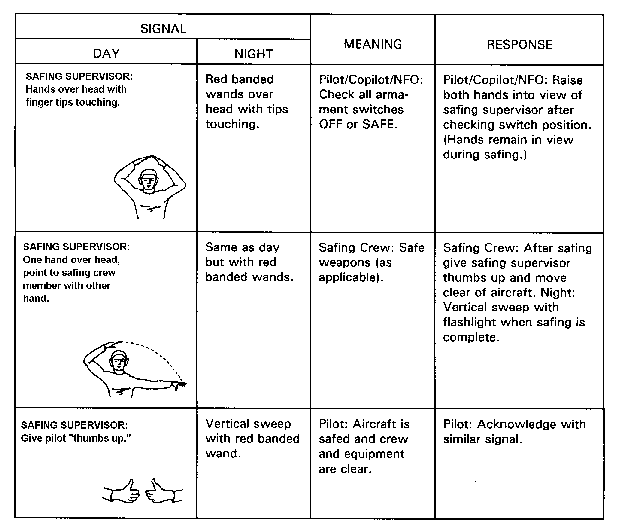

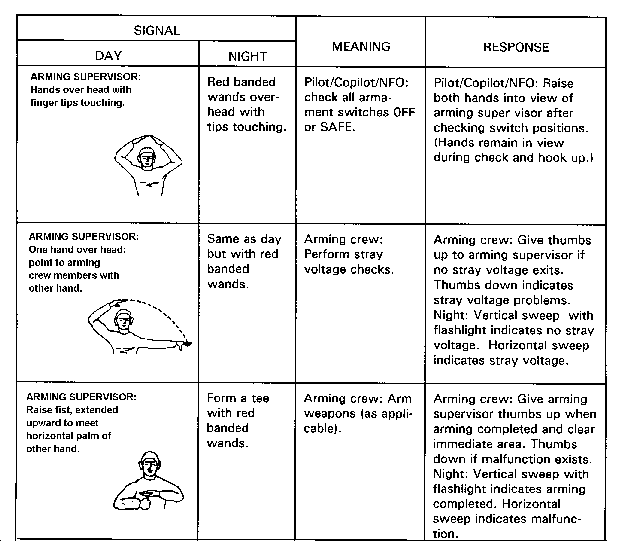

Figure B-1. Aircraft arming and safing signals
Figure B-1. Aircraft arming and safing signals (continued)
Figure B-1. Aircraft arming and safing signals (continued)

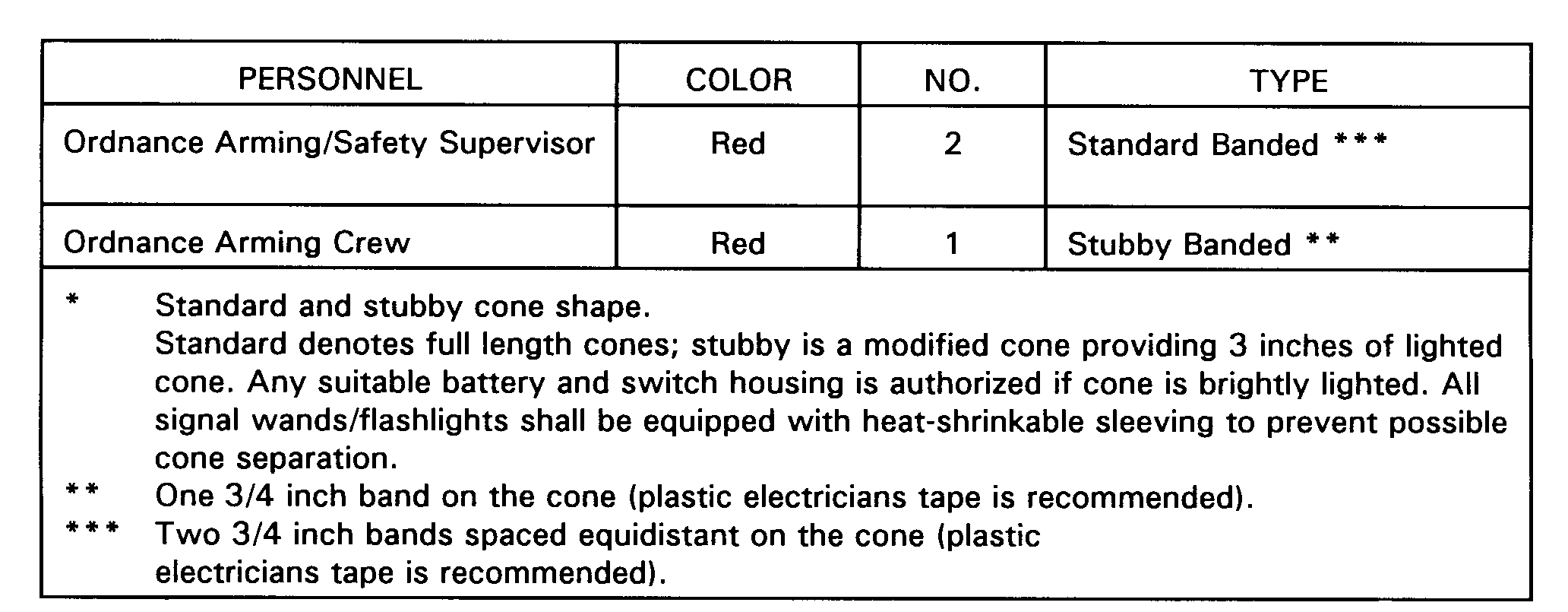

Figure B-2. Standardization of wands for arming and dearming personnel
|
