EXTRACT OF FM 90-10















HOW THE ENEMY DEFENDS

This section describes why and where the enemy defends and examines those aspects of his defense that are different from our own. It covers the organization, planning, and conduct of the defense to include his use of the combined arms in the defense.

The enemy recognizes the political and military importance of the urbanization phenomenon. Threat commanders realize the importance of not only defending built-up areas, but also of incorporating them into the overall defensive plan. The enemy always attempts to establish his defense well forward of an urban area in order to engage and defeat the attacker on the approaches to and flanks of the built-up area.

CONTENTS

HOW THE ENEMY DEFENDS
PLANNING THE ATTACK
THE OFFENSIVE BATTLE
    The Corps
    The Division
    The Brigade
    The Task Force

The enemy reverts to the conduct of defense within a built-up area only when:

  • Attacking forces break through defenses organized on the approaches and threaten the built-up area proper.
  • The built-up area has especially great political, strategic, or economic importance.
  • It is necessary to defend a built-up area which is a seaport or other critical communication/transportation complex.

ORGANIZATION OF THE DEFENSE

The categories of built-up areas contained in Threat literature differ slightly from those described in chapter 1 and provide guidelines for the organization of his defense. Smaller towns and villages of rural areas are incorporated into his defense as strongpoints in accordance with standard defensive doctrine. It is only for those operations conducted in the more populated urban areas that modified techniques are described. The following figure shows how the Threat classifies built-up areas by population and estimated perimeter.

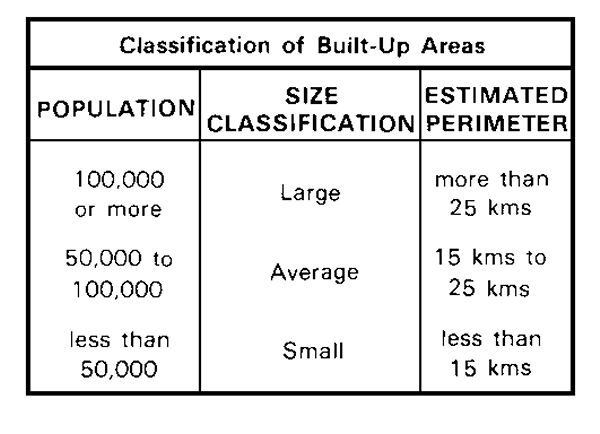

Classification of Built-Up Areas

In order to provide commanders sufficient room to maneuver, urban areas are normally included as part of a larger defensive zone. The tactics and weapon systems used are dependent on the characteristics of the central built-up area and the terrain adjacent to it. The key defensive concept is to draw the attacking force into preplanned kill zones and destroy them.

The task of defending an urban area is normally allocated to a motorized rifle division (MRD). The MRD deliberate defense is organized with a security zone and a main defensive belt. Mutually supporting strongpoints are echeloned in depth. Natural and manmade obstacles, as well as the smaller built-up areas are incorporated in the defense to impede the advance of the attacking forces and to canalize them.

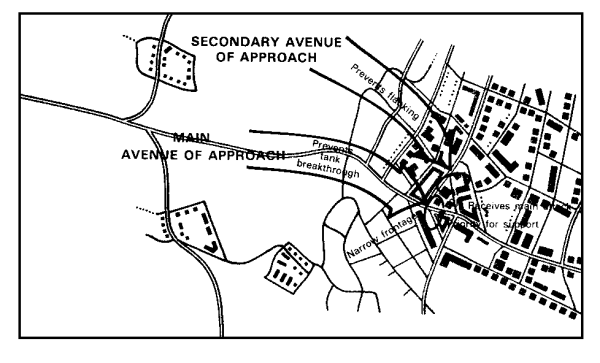

The figure below illustrates the basic organization of the terrain when the defense of a built-up area is required. The specific frontages and depths of the defending forces are determined by the complexity of the urban terrain, the enemy, and the forces and fire support available to the defender.

Security Zone

The role of the security zone is not changed on the urban battlefield. Forces are organized to halt or delay the attacker and cause him to deploy early. A motorized rifle division will normally employ its second-echelon motorized rifle regiment (MRR) in this zone which may extend up to 30 km forward of the main defensive belt. The task of deceiving the attacker as to the location of the main defenses is aided by the restrictive nature of the urban terrain and the presence of small built-up areas which may be integrated into the defensive scheme. The battle in the security zone is fought by motorized rifle companies reinforced with AT weapons, artillery, tanks, and engineers.

Main Defensive Belt

This zone, which may extend up to 15 km in depth, is the backbone of the defense. It is normally organized in two echelons with the built-up area located within the second echelon. Forces in the first echelon will normally consist of two MRRs deployed across a zone 20 to 30 km wide. Each MRR will deploy security elements forward of this zone to slow and canalize the attack force. The mission of the first echelon is to defeat the attack forward of the built-up area. A strongpoint defense integrating urban features and frequent local counterattacks is employed to destroy or repulse the attacker. The first-echelon MRRs will have designated secondary positions on the flanks of and within the built-up areas.

MRD Deliberate Defense

Following withdrawal of forces from the security zone, the second echelon MRR will prepare defensive positions within the built-up area for itself and the first-echelon MRRs. The medium tank regiment will be retained under division control and deployed primarily on the flanks of the built-up area. Elements of this regiment will normally be used to reinforce the first-echelon MRR on the main avenue of approach.

If it is necessary to defend within the built-up area, only a small portion of the available force is used to hold its central area. The MRRs of the division establish their defensive positions on the approaches to the built-up area whenever possible. Since it is unlikely that lengthy preparation time for such operations will be available, the initial defense may be organized based on a detailed map study with only limited personal reconnaissance at the lower levels of command. The layout of the built-up area, the type of structures available, the time of the year, and the climate are important considerations in the planning of the defense.

The defensive battle in the main defensive belt is a combined arms battle fought by the motorized rifle battalion.

COMBINED ARMS IN THE DEFENSE OF A BUILT-UP AREA

Motorized Rifle Battalion (MRB)

Enemy doctrine for the defense of built-up areas emphasizes the importance of the combined arms concept. Motorized rifle units provide the basic element of his urban combat force structure.

The enemy MRB is the most effective unit for combat in the built-up area because of its inherent mobility, armor protection, and rapid capability to adapt buildings and other structures for defense or as shelters against the effects of nuclear weapons. It coordinates closely with units from other arms, some of which will attach elements, and others of which will be placed in support or will provide security. The MRB will be reinforced by other branches depending on the requirements and conditions expected in various parts of the built-up area.

As a rule the MRB defends as part of the larger, regimental-size unit. It may defend on a main or a secondary avenue of approach and/or be in the first or second echelon or in the reserve.

If the attack penetrates, the MRB must inflict maximum losses, stop further forward movement, and create favorable conditions for the second echelon or regimental reserve to counterattack.

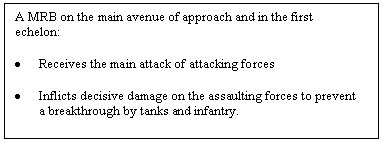

The MRB in the first echelon covers a narrower front and receives greater reinforcements than one in the second echelon. It will be supported by most of the artillery of the next higher command.

A MRB in the second echelon or on a secondary avenue of approach:

  • Prevents flanking/rear maneuvers.
  • Holds defended sites and prevents further advances by an attacker that has penetrated the built-up area.
  • Conducts counterattacks to restore positions of the battalions in the first echelon.

MRB defenses are generally organized in two echelons to provide greater depth and reserves. Company strongpoints are prepared for perimeter defense and constitute the basis of the battalion defensive position. The reserve is located in a separate strong-point. Ambush locations are established in the gaps between strongpoints. Numerous firing positions for mortars, artillery, and antitank weapons are designated. The rear service area is selected to capitalize on the cover and concealment afforded by the built-up area. Dummy strongpoints are constructed to deceive the attacker. Positions for securing and defending entrances/exits to underground structures and routes of communications are established. Combat security positions are prepared in front of the defensive position of a first-echelon battalion.

The Reserve

  • Reinforces/replaces battalions in the first echelon
  • Covers breaches caused by enemy nuclear weapons
  • Holds sites deep within the defensive positions whose retention is vital to the overall defense.
  • Extinguishes or contains fires that endanger friendly forces or limit their operations.
  • Conducts rear area security and defeats air-landed forces that are inserted in the rear.



Battalion Defensive Area

Within a built-up area, a company may defend with mutually supporting fires several buildings prepared for perimeter defense. Each platoon defends one or two buildings within a company strongpoint or a floor of a large building that is defended by a company.

Strongpoints constitute the basis of each defensive position. They are usually prepared in solidly constructed buildings located at intersections, entrances to public squares and parks, or adjacent to bridges, and with observation and prepared fields of fire appropriate to the weapons available. Fires are coordinated between strongpoints. They offer personnel protection against weapons of mass destruction. Communication trenches are prepared within strong-points. In addition, ambushes are set up in the gaps between positions, and wooden structures or other buildings which hinder fields of fire are razed.

Fire planning for infantry weapons requires a combination of flanking, interlocking, and layered fires of all types. Weapons are emplaced to provide fires on the approaches to a defensive area, on the flanks, and in the battalion rear. Fires are tied in with artificial and natural obstacles to cover open areas completely.

Particular attention is paid to antitank fire planning within the built-up area. The enemy recognizes that there will be limited opportunities to place effective fires on the tanks within the city; therefore, weapon positions are carefully selected. Ambushes are prepared along main avenues of armor advance.



  • Tanks are routinely attached to a MRB for employment in ambushes or to reinforce antitank defenses. They may operate as "roving guns" or be positioned in strongpoints; and, they may be used in ambushes where they are employed primarily against attacking tanks and along expected routes of the main attack.
  • Artillery carries out most of its missions by firing by direct lay. Artillery units are regularly attached to maneuver companies and platoons.
  • Mortars of all calibers, with their high-angle fires, ease of transportability, and high rate of fire, are considered to be highly effective in built-up areas.
  • Chemical defense elements may be attached to the MRB. They perform radiological and chemical reconnaissance in order to detect the effects of NBC weapons employed by the attacker and to determine the degree and limits of contamination.

  • Smoke agents are used extensively to conceal the maneuver of men and weapon systems between strongpoints, defensive areas, and separate buildings that do not have concealed or underground routes between them. Also they deny the attacker observation and aimed fires.
  • Nuclear weapons may be used against the attacker's nuclear delivery means and concentrations of forces on the approaches to the city, or against troops who attempt to encircle or bypass the built-up area, or against an attacker who has seized part or all of a built-up area if there are not other weapons available to destroy him.
  • Engineers attached to the MRB perform standard engineer tasks



Party-Political Work.

The enemy views this as critical to fulfilling the assigned combat mission, the creation of a successful defense, and the regaining of the initiative. Political indoctrination is achieved by timely explanation to personnel of the mission and procedures for its accomplishment. Indoctrination of soldiers, NCOs, and officers in patriotism, courage, and tenacity in defending the built-up area is basic to the party-political efforts.

All fighting men are told that no one has the right to leave the defended location without a specific order to do so. Party members are distributed throughout the fighting units. There must be an "active member" in every separate group of fighting men. He conducts party-political indoctrination and provides the example in combat. Based on the commander's guidance and decision, the Deputy Commander for Political Affairs plans the party-political support for the combat missions. The underlying assumptions to this plan are:

  • Every defended building must be a fortress inaccessible to the attacker.
  • The force which possesses the stronger moral qualities (e.g., coldness, endurance, and resourcefulness) and knows procedures for fighting in a city will win.

BASIC DEFENSIVE CONSIDERATIONS

The enemy's defense of a built-up area is centrally controlled by the commander, preferably from a command observation post from which he can view the area and communicate with his forces. All available means of reconnaissance are used to determine where the attacker will strike and the location of his main effort. Once this is determined, maximum firepower is continually massed on the approaching attacker.

Dummy positions and alternate strongpoints are also used along the attacker's avenues of approach. Gaps created in the defense are immediately covered by massive fires of all types. During an attacker's artillery preparation, combat equipment and forces are kept in standby readiness in protected positions. When the preparation is lifted, the forces move forward and occupy primary defensive positions from which to repulse the attack.

Company strongpoints constitute the basic element of the built-up area defensive structure. Companies may also occupy a salient on an open flank or behind one of the companies in the first echelon.

Every effort is made during the defense to separate infantry from tanks so that tanks may be attacked and destroyed at short ranges by antitank weapons. Antitank ambushes are prepared at each level. Counterattacks are habitually launched to regain lost positions before the attacker has the opportunity to prepare hasty defenses.

PLANNING THE ATTACK

This section describes urban offensive operations and provides detailed considerations to be applied by US commanders during planning. Readers must understand how the enemy defends and be familiar with US offensive planning as discussed in organizational How-to-Fight manuals.

OFFENSIVE OPERATIONS

The attack of a built-up area, regardless of its size and the level of command involved, should be considered only as the last resort, and only when major advantage accrues to the attacker through its seizure or control.
