| FY98 Annual Report | |||
LONGBOW HELLFIRE
 |
| Army ACAT IC Program: | Prime Contractor | |
| Total Number of Systems: | 13,003 | Lockheed Martin/Northrop Grumman |
| Total Program Cost (TY$): | $2.6B | |
| Average Unit Cost (TY$): | $166K | Service Certified Y2K Compliant |
| Full-rate production: | 1QFY98 | No |
SYSTEM DESCRIPTION & CONTRIBUTION TO JOINT VISION 2010
The Longbow Hellfire missile is a fire-and-forget version of the Hellfire anti-tank, air-to-ground missile. The Longbow Hellfire features an active radio frequency seeker operating in the millimeter wave frequency band, and a dual tandem warhead designed to defeat reactive armor. Either the AH-64D's Fire Control Radar or a laser designator may designate targets for the missile. The Longbow Hellfire can engage both moving and stationary vehicles.

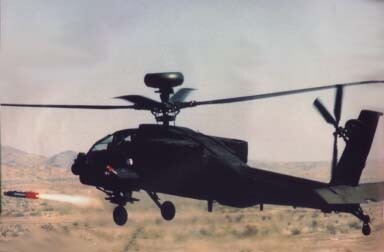

The Longbow Hellfire missile will provide an adverse weather, fire-and-forget, heavy anti-armor capability for the Army's AH-64D Longbow Apache attack helicopter. The Longbow Hellfire is a tactical precision engagement weapon that enhances the Army's ability to dominate ground maneuver battle.
BACKGROUND INFORMATION
A combined Longbow Apache and Longbow Hellfire initial operational test (IOT) was conducted in 1995. The gunnery phase of IOT was conducted from January-February 1995, at the Naval Weapons Center, China Lake, CA. This phase of testing compared the Longbow Apache firing the Longbow and Semi-Active Laser (SAL) missiles with the baseline AH-64A firing the SAL missile in obscured and unobscured conditions. The force-on-force phase of the IOT was conducted at Fort Hunter Liggett, CA during March 1995. The objectives of this phase were to assess the operational effectiveness of an attack helicopter company equipped with the Longbow weapon system relative to one equipped with the current AH-64A, and the operational suitability of the aircraft. Both the test and baseline attack helicopter companies conducted missions against a battalion-size enemy force, augmented with an appropriate slice of air defenses. A real-time casualty assessment system was used for kill removal.
One issue uncovered during the IOT that required follow-on testing involved a method of employment for the Longbow Hellfire missile. During the IOT&E's force-on-force phase, Longbow Apache crews frequently overrode the system's automatic firing mode selection and fired missiles from a masked position using the Lock-On Before Launch Inhibit (LOBL-I) firing mode. This powerful technique significantly increased the helicopter's survivability, but had not been validated with live missile firings during the preceding DT/OT.
The DAB authorized LRIP of the Longbow Hellfire missile in October 1995. The attendant ADM dated October 18, 1995, required OSD approve the Army's plan to test the LOBL-I mode of engagement. The ADM also stated that testing would culminate with missile firings at moving targets.
The decision for full-rate production of the missile, delegated to the Army by OSD, was made in November 1997.
TEST & EVALUATION ACTIVITY
OSD (DOT&E) worked with the Army to develop a LOBL-I test plan to confirm system performance using this firing technique. The test program included digital simulations of the missile's target acquisition and fly-out, Hardware- in-the Loop (HWIL) testing of the guidance section, low-speed captive flight test (LSCFT) of the missile seeker, and live missile firings at moving armored vehicles.
TEST & EVALUATION ASSESSMENT
The IOT&E and LFT&E were conducted in accordance with the approved TEMP (September 1994). As reported to Congress in the October 1995 B-LRIP report, these tests were adequate to provide information necessary to determine the entire Longbow Apache Weapons System operationally effective, suitable, and survivable. Specifically, the AH-64D armed with the Longbow Hellfire was found to be substantially more effective than the AH-64A Apache armed with the SAL Hellfire. During the gunnery phase, the AH-64D was able to acquire and effectively engage targets in obscuration that precluded engagement by the AH-64A. During force-on-force testing, the AH-64D force was significantly more lethal and survivable than the AH-64A force.
One issue uncovered during the IOT that required a Follow-on Operational Test (FOT) involved the LOBL-I method of employment for the Longbow Hellfire missile. The LOBL-I FOT, conducted in accordance with the OSD-approved plan, was a remarkably innovative use of modeling and simulation (M&S) to support OT&E. In this instance, M&S was used to characterize the missile's performance in the LOBL-I mode in a far wider range of conditions than could be examined just using field testing. Factors such as target range and time delay (the time between locating the target and firing the missile) were varied based on what was observed during the IOT&E's force-on-force test results. Only after the M&S results were analyzed were informative cases selected for the LSCFT and the live fire missile shots. The results from the LSCFT and the missile firings were then compared to the M&S predictions to help further validate the simulation models. Although the LOBL-I FOT is not scheduled to be completed until 3QFY99, this approach to testing has been a noteworthy example of field test results (from the IOT&E) supporting M&S (digital, HWIL, and LSCFT), the results of which support field-testing (live missile shots).
Taken in its entirety, the data from the digital and HWIL simulations, LSCFT, and the missile firings identified the key factors that significantly affect the missile's probability of acquiring and hitting the target when fired in the LOBL-I mode. These factors include target range, time delay (the time between locating the target and firing the missile) and target radial velocity (target speed and aspect angle). These emerging results do not alter DOT&E's assessment that the Longbow Apache is operationally effective, suitable, and survivable. The Army expects to review its AH-64D tactics, techniques, and procedures to reflect the "lessons learned" as a result of this phase of OT.
LESSONS LEARNED
One issue uncovered during the IOT that required FOT involved the LOBL-I method of employment of the Longbow Hellfire missile. During the force-on-force phase, Longbow flight crews frequently elected to override the system's automatic mode selection logic and fire missiles from a masked position. This powerful technique significantly increased the helicopter's survivability, but had not been validated with live missile firings during DT/OT.
The Army's approach to LOBL-I testing was a remarkable use of M&S to support OT&E. In this instance, M&S was used to characterize the missile's performance in the LOBL-I mode in a far wider range of conditions than could be examined using just field testing. Factors such as target range and time delay (the time between locating the target and firing the missile) were varied based on what was observed during the IOT&E's force-on-force test results. Only after the M&S results were analyzed were informative cases selected for the LSCFT and the live fire missile shots. The results from the LSCFT and the missile firings were then compared to the M&S predictions to help further validate the simulation models. Although the LOBL-I FOT is not scheduled to be completed until 3Q FY99, this approach to testing has been a noteworthy example of field test results (from the IOT&E) supporting M&S (digital, HWIL, and LSCFT), the results of which support field-testing (live missile shots).
|
