FM 34-35: Armored Cavalry Regiment and Separate Brigade Intelligence and Electronic Warfare Operations

APPENDIX A

INTELLIGENCE AND ELECTRONIC WARFARE EQUIPMENT

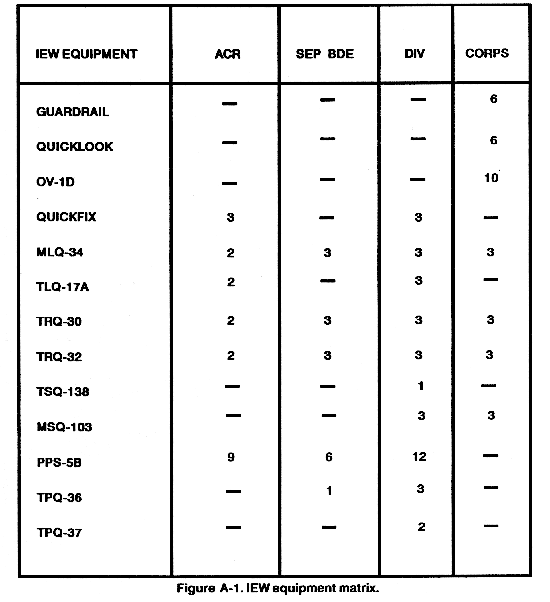

The coordinators of the IEW effort may use either organic or nonorganic assets to accomplish the mission. Figure A-1 shows equipment available in the ACR or separate brigade, as well as items which may augment the effort. The exact assets available will depend on the commander's concept of the operation. Other IEW equipment appears in TC 34-1.
