DDG-51 Arleigh Burke - Specifications

Specifications
Power Plant 4 - LM2500 GE Marine Gas Turbines 105,000 shp (90,000 sust.)
3 Allison 2500 KW Gas Turbine Generators
2 Shafts with CRP (Controllable Reversible Pitch) Propellers
2 5-blade CP Rudders
Length
Flight IFlight IIA Flight III
505 feet overall
466 feet (142 meters)waterline
509.5-513.0 feet overall
BeamMax 66 Feet
waterline 59 feet (18 meters)
Navigational Draft 31 feet
Displacement
Flight IFlight IIA Flight III
8,300 tons full load 9,192-9,217 tons full load
Speed 31 knots (36 mph, 57 kph)
Range 4,400 @ 20 knots
Aircraft
Flight IFlight IIA Flight III
None. LAMPS III electronics installed on landing deck for coordinated DDG 51/helo ASW operations Two multi-purpose Light Airborne Multipurpose System LAMPS MK III helicopters
Armament
Flight IFlight IIA Flight III
Two MK 41 Vertical Launching Systems
(90 Cells)
[74 Standard missiles and
Tomahawk ASM/LAM]

Two MK 15 MOD 12 20mm Close-in-Weapons Systems (Phalanx Mounts)

Two Harpoon Anti-shipping Missile
Quad Canisters
Two MK 41 Vertical Launching Systems
(96 Cells)
[74 Standard missiles and
Tomahawk ASM/LAM]

(NATO) Evolved Sea Sparrow


AN/WLD-1 Remote Minehunting System
6 Flight IIA ships (DDG-91-96)
[planned but delayed]
One MK 45 MOD 1 5"/54 caliber Gun Mount (lightweight gun)
Two MK 32 MOD 14 Triple Torpedo Tubes (six MK 50/46 Torpedoes)
SENSORS
Flight IFlight IIA Flight III
AN/SPY-1D 3-D Radar
AN/SPS-67(V)3 Radar
AN/SPS-64(V)9 Radar
AN/SQS-53C(V) Sonar
AN/SQQ-28(V) LAMPS III
AN/SQR-19(V) TACTAS Sonar
AN/SPY-1D 3-D Radar
[DDG-79 -DDG-90]
AN/SPY-1D(V) 3-D Radar
[DDG 91 Pinckney on]
AN/SPS-67(V)3 Radar
AN/SPS-64(V)9 Radar
AN/SQS-53C(V) Sonar
AN/SQQ-28(V) LAMPS III
Air and Missile Defense Radar
ESM/ECM AN/SLQ-32(V)3
AN/SLQ-25A NIXIE Torpedo Countermeasures
MK 36 MOD 6 Decoy Launching System (6 Launchers)

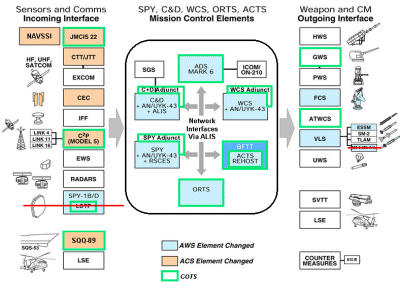

FIRE CONTROL AEGIS Weapon System MK-7

MK116 MOD 7 Underwater Fire Control System
AN/SQQ-89 ASW Combat System
AN/SWG-I A (V) Harpoon Launcher Control System
AN/SWG-3A TOMAHAWK Weapon Control System
EXTERIOR COMMUNICATIONS
  • LF through HF Receive,10 kHz - 30 MHz
    R-1051 H/URR; twelve receivers
    R-2368 H/URR; three receivers
  • HF Transmit; 2-30 MHz
    AN/URT-23D; nine transmitters
  • VHF Transmit and Receive, 30-162 MHz
    AN/GRR-211; two transceivers for non-secure voice
    ANNRC-46A; two FM transceivers for secure voice
    AN/URC-80 (V)6; one transceiver for bridge-to-bridge communications
  • UHF Transmit and Receive, 220-400 MHz
    AN/URC-93 (V)1; two transceiver for Link 4A
    AN/WSC-3 (V)7,11; fourteen transceivers
    AN/WSC-3 (V)11, have-quick transceiver
  • SATCOM Transmit and/or Receive
    AN/SSR-1A; one receiver for fleet broadcast
    ANNWSC-3A (V)3; five transceivers for digital voice
  • Infra-Red, Transmit and Receive
    AN/SAR-7A; two IR Viewers
  • Land Line Terminations, Transmit and/or Receive
    AN/SAT-2B, one IR Transmitter
    Single Channel DC Secure TTY
  • Telephone Special Communications Channel
    AN/USQ-69 (V)7; OTCIXS
    AN/USQ-69 (V)8; TADIXS
    AN/SYQ-7 (V)5 and AN/USQ-69 (V)6; NAVMACS/CUDIX
    AN/USQ-83 (V) and AN/USQ-125 (V); Link 11
    AN/SSW-1 D; Link 4A
    AN/SRQ-4; HawkLink (LAMPS MK III)
    AN/ARR-75 Sonobouy antenna
  • Navigational Equipment
  • AN/WSN-5 Inertial Navigation System
  • AN/WRN-6
  • ANISRN-25 (V)
  • MK 4 MOD 2 Underwater Log
  • MK 6 MOD 4D Digital Dead Reckoning Tracer
  • AN/URN-25 TACAN
  • AN/SPS-64 (V) 9 I Band Radar
  • Navy Standard No. 3 Magnetic Compass
  • Chronometer Size 85
  • Flux Compass
  • Replenishment-at-Sea
  • CONREP fore and aft
  • VERTREP fore and aft
  • Boat Handling and Stowage
  • Two MK 6 rigid inflatable boats (RHIB), 18 person capacity with slewing arm davit
  • Fifteen (15) twenty-five person encapsulated lifeboats
  • Stability Design for ship stability includes the following consideration:
    Intact Stability
  • 100 knot beam wind in all loading conditions
    Damage Stability
  • 15% length of hit criterion
  • Crew
    Flight IFlight IIA
    23 officers, 300 enlisted 32 Officers, 348 enlisted
    (including helicopter detachment of 4 officers and 14 enlisted)
    Flight III
    Departments Administration
    Combat Systems
    Engineering
    Navigation
    Operations
    Supply
    Weapons
    Unit Operating Cost
    Annual Average
    $20,000,000 [source: [FY1996 VAMOSC]
