CMS - China Marine Surveillance - Equipment

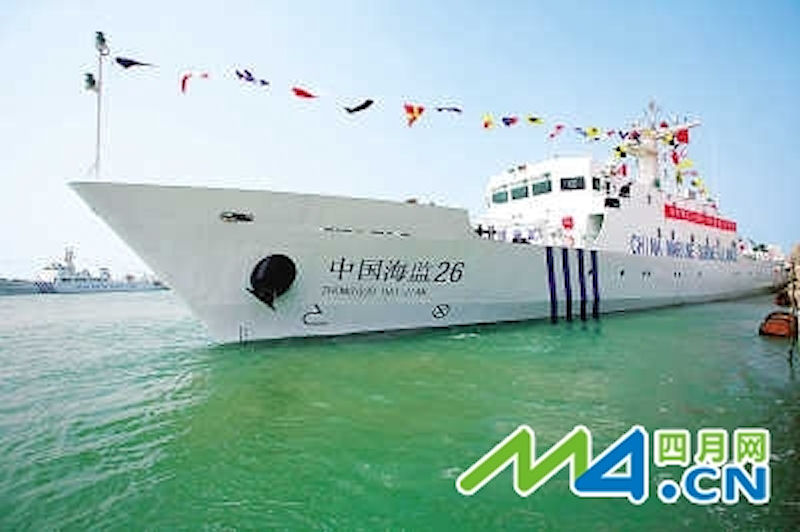

	China ocean surveillance ship 26 total weight 1125 tons, a maximum speed of 20, endurance 5000 sea miles, advanced satellite communications and navigation equipment and the whole ship networks and monitoring systems, power systems using MAN Diesel dual and single adjustable variable pitch propeller , the ship has sailed fast, good mobility and a strong rapid reaction capacity and other characteristics, is China ocean surveillance ship designed series of fastest kiloton official boat.

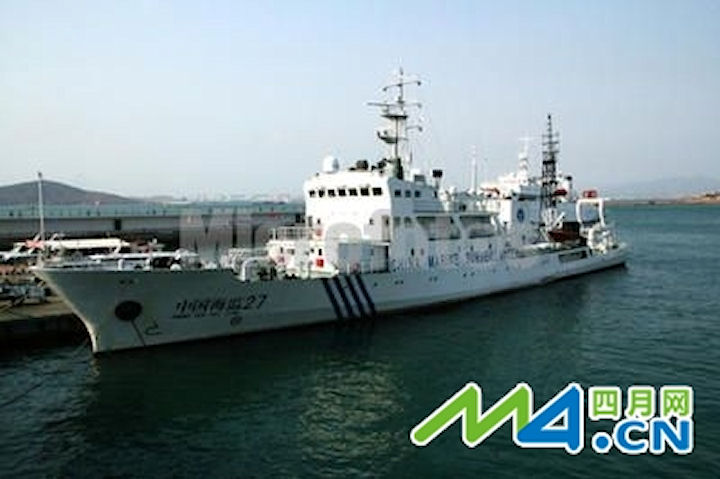

	China Marine Surveillance 27 2004 launched successfully in September in Guangzhou Huangpu Shipyard, vessel length of 75.8 m, 10.2 m Breadth, depth 4.7 meters, a displacement of 1200 tons, speed 20 knots, endurance 5000 sea miles, can carry 43 people, the boat for steel structure, single continuous deck, single ball stern rudder ship; superstructure is enclosed bridge building, located panoramic cab. The ship is equipped with advanced collision avoidance radar, safety performance is greatly improved.

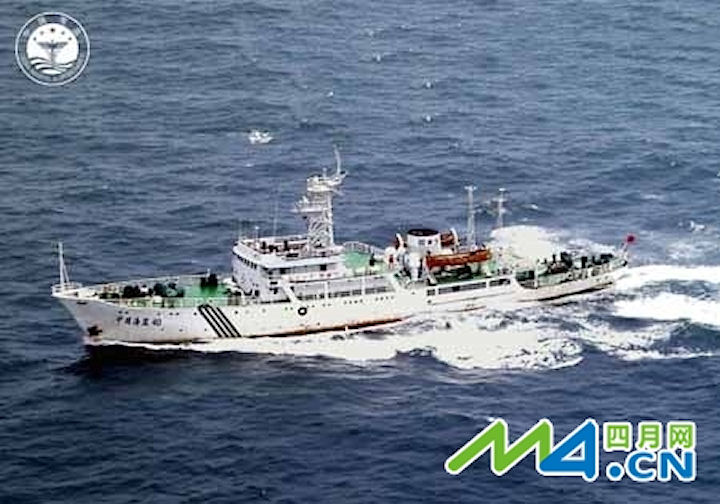

	China Marine Surveillance 40 Length: 65.22 m Breadth: 10.20 m Depth: 4.80 m. Tonnage: 823.94 tons NRT: 247.18 tons Maximum: 15 Economy: 13 Low: 9

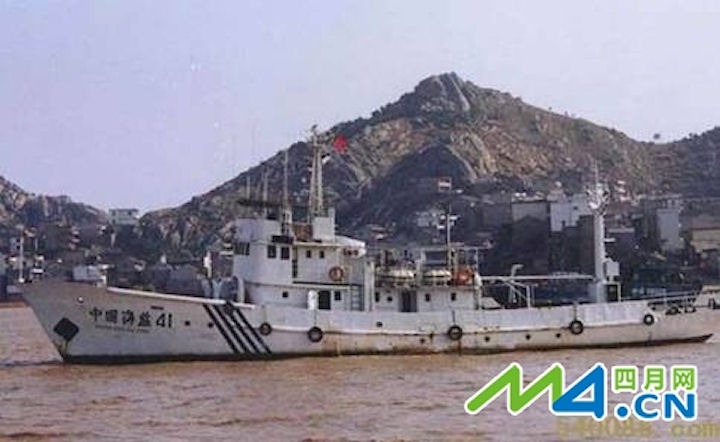

	China Marine Surveillance 41 Length: 36.18 m Breadth: 6.60 m Depth: 3.90 m. Tonnage: gross tonnage: 201.51 tons NRT: 112.85 tons. Maximum speed: 11.2 Economics: 11.0 Minimum: 7.8

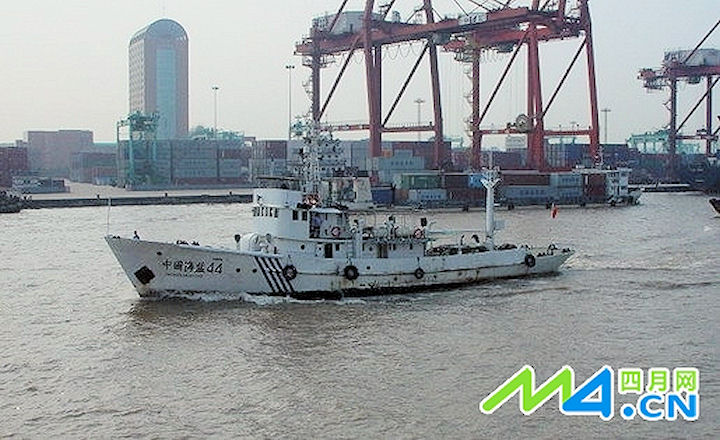

	China Marine Surveillance 44 Vessel dimensions: Length: 36.18 m Breadth: 6.60 m Depth: 3.90 m. Tonnage: gross tonnage: 201.51 tons NRT: 112.85 tons. Speed: Maximum: 11.2 Economics: 11.0 Minimum: 7.8

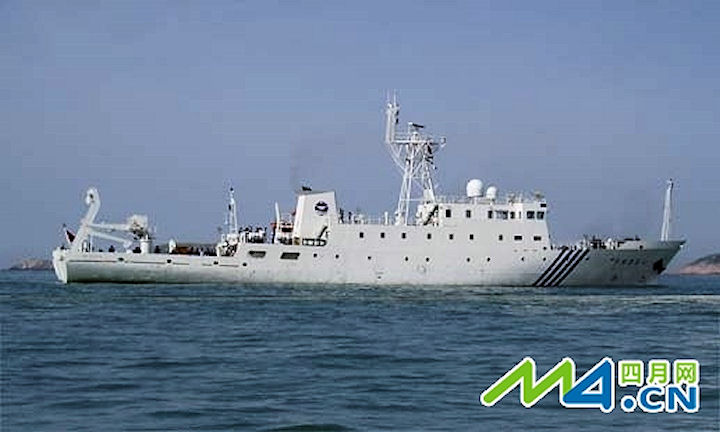

	China Marine Surveillance 46 Vessel dimensions: Length: 73.9 m Breadth: 10.2 m Depth: 4.6 m Draught: 3.4 m. Tonnage: gross tonnage: 1101 tons. Speed: Maximum: 16 Economy: 14

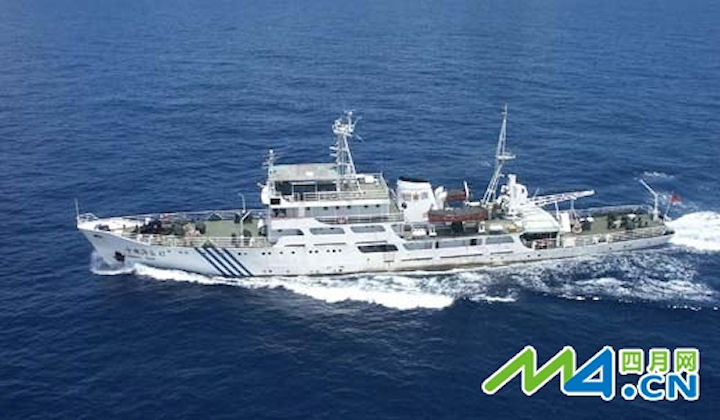

	China Marine Surveillance 47 Vessel dimensions: Length: 65.316 m Breadth: 9.20 m Overall Width: 9.25 Depth: 4.30 m. Tonnage: gross tonnage: 656.66 tons NRT: 209 tonnes. Speed: Maximum: 16 Economy: 14.5 Minimum: 8.5

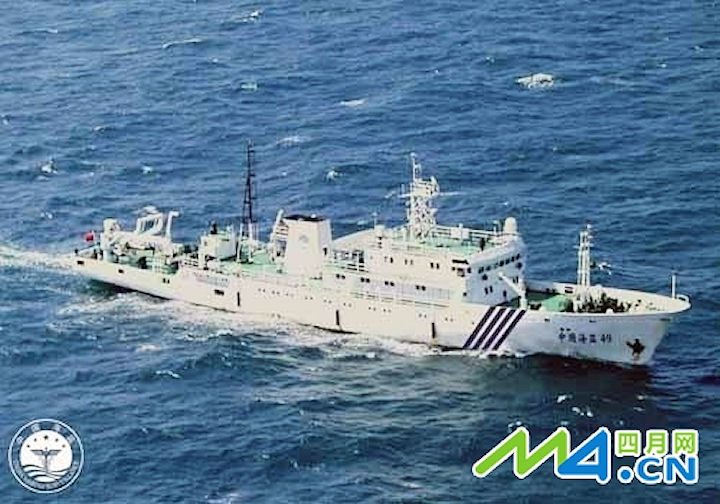

	China Marine Surveillance 49 Vessel dimensions: Length: 71.40 m Breadth: 10.20 m Depth: 4.50 m mean draft: 3.40 m. Tonnage: gross tonnage: 996.7 tons NRT: 273 tonnes. Speed: Maximum: 15.2 Economics: 14.5 Minimum: variable pitch (3-4)

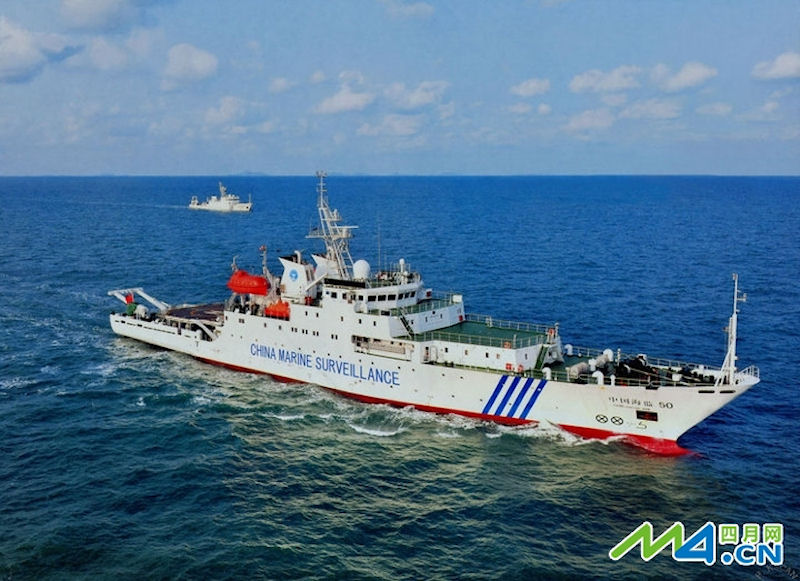

	China Marine Surveillance 50 The tonnage of Chinese ocean surveillance ship the largest construction project Phase II, the highest tech a boat, the vessel used in today's world of advanced propulsion systems ABB Power full swing, the maximum speed of 18 knots, cruising range greater than 8000 nautical miles holding force 60 days. The boat is equipped with advanced controllable passive anti-rolling tank system, resistant to 12 typhoons and equipped Z9A helicopters, satellite digital power control equipment, satellite communications and navigation equipment and advanced ocean cruise, investigation, evidence collection equipment.

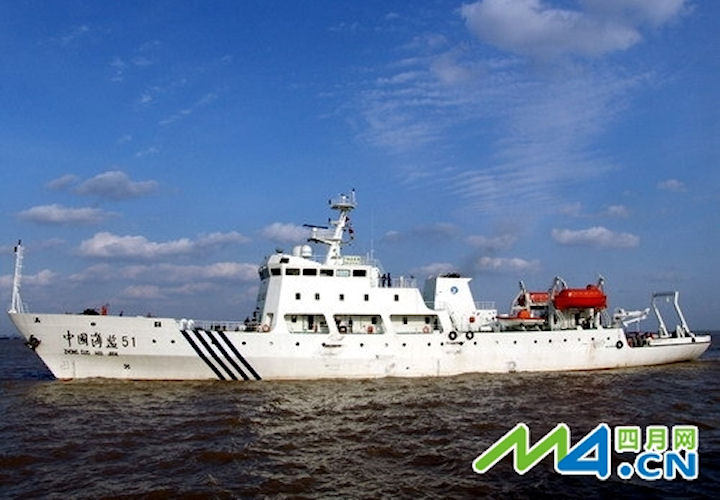

	China ocean surveillance ship 51 Wuchang Shipyard by the contractor, under the supervision East China Sea Corps, length of 87.7 m, width 12 m, full load displacement of 1,937 tons, draft 3.5 m, the design speed of 18 knots, cruising range of not less than 6000 sea miles, self-sustaining force 40 days; capacity of 50 people in addition to conventional vessel equipped, also has bow thruster, adjustable pulp, Fin and modern satellite communication, navigation systems and other functions, with mobile, stable performance characteristics, can be meet the monitoring and enforcement of marine environmental surveys and other marine applications.

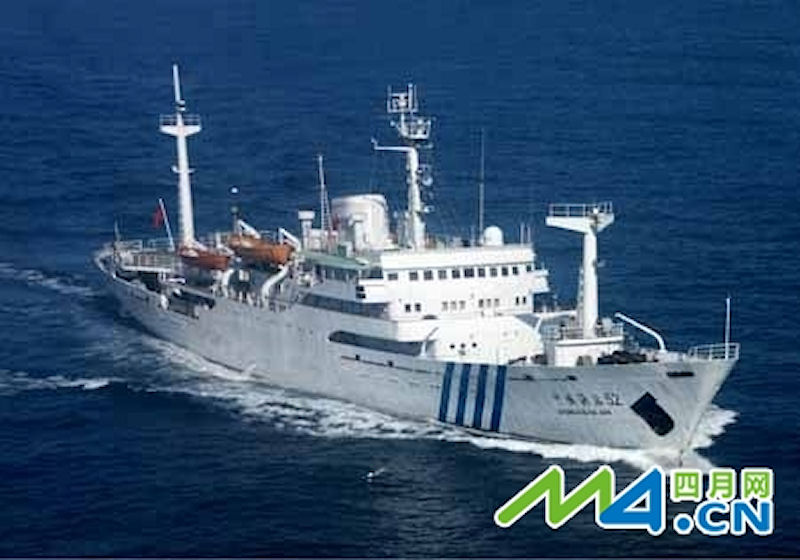

	China Marine Surveillance 52 ocean surveillance ship, formerly known as "practice", No. 1967, built in water use. As one of our own construction of the first of the few comprehensive oceanographic survey ship, carrying our oceans older workers and dreams of glory. 2000 changed its name to "China Marine Surveillance 52" boat, bear interest in maintaining offshore marine, marine law enforcement surveillance and monitoring of marine survey tasks. November 2007, after which the repair is completed sea trials successfully reached the goal of restoring security in the Air.

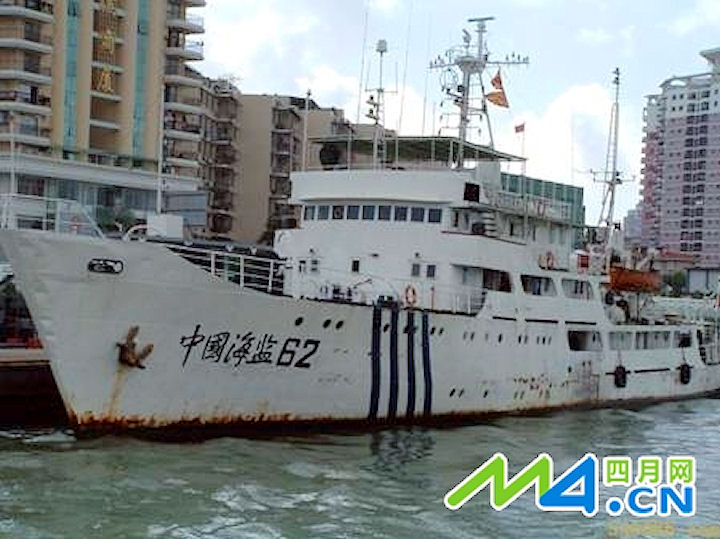

	China Marine Surveillance 62 . Length: 65.316 m Breadth: 9.20 m Overall Width: 9.25 Depth: 4.30 meters Tonnage tonnage: 656.66 tons NRT: 209 tons Air Maximum speed: 16 Economy: 12 Low: 6

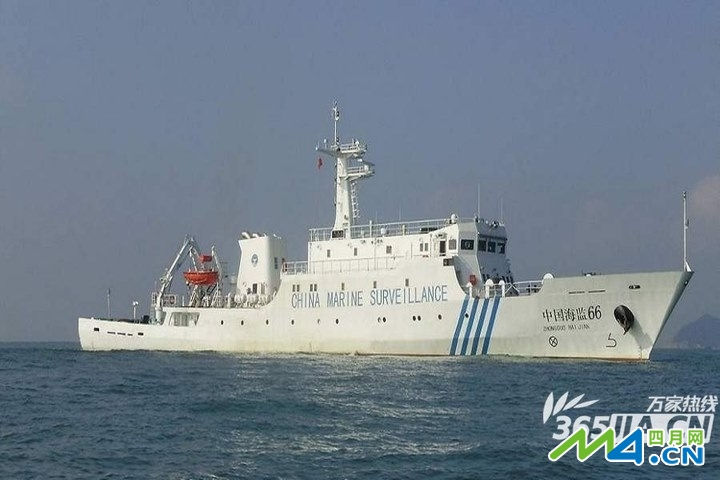

	China Marine Surveillance 66 Huangpu Shipbuilding Cheung Chau plant is built 1,000-ton Type II ocean surveillance ship, under the East China Marine Surveillance Corps. The vessel is the second phase of new ocean surveillance ship in one of the fastest boats, seaworthy unrestricted area. February 2012, "Marine Surveillance 66" in the expulsion of the Japanese survey vessel near Okinawa.

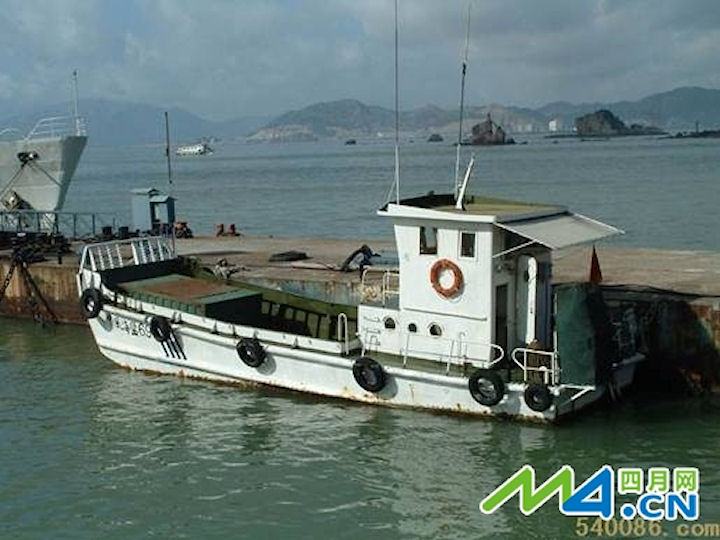

	China Marine Surveillance 69 Built: 1984 Subordinate units: six maritime surveillance detachment. Length: 14 m. Tonnage: 20 tons. Maximum Speed: 9

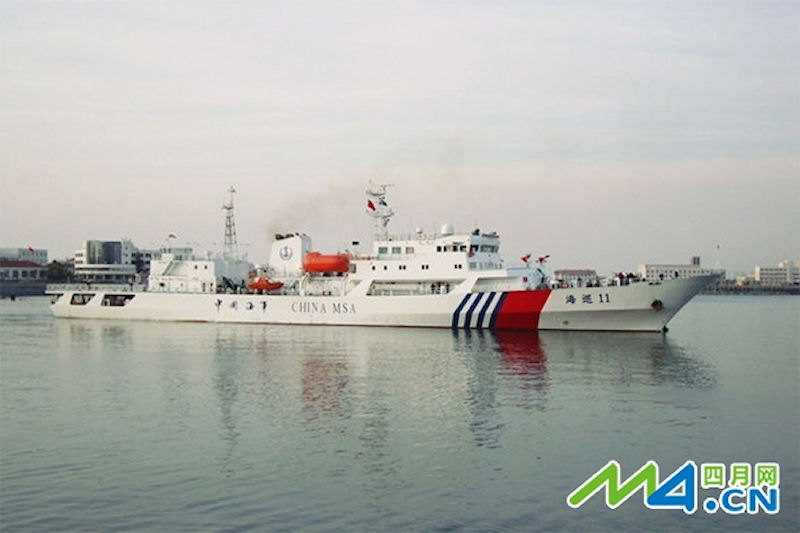

	Coast Guard 11 February 2009 Weihai water. The total length of 114.44 patrol boats, displacement of 3249 tons, endurance of 6,000 nautical miles speed section 22, and is equipped helicopter, Marine Systems is currently China's largest and most advanced equipment in the Coast Guard boat. Information monitoring system on board equipment, the ability to lock and track multiple targets, the implementation of maritime search, maritime surveillance and maritime command and many other tasks.

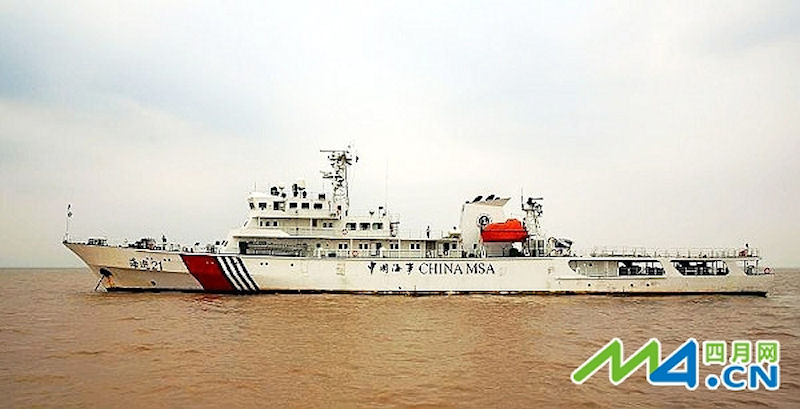

	Coast Guard 21 Total length of 93.23 m [303 feet], width 12.2 m, depth 5.4 m, displacement of 3000 tons, loading "CD-MA" satellite positioning system, a helicopter landing platform, helicopter carrier dedicated grille. When loaded with the maximum endurance of 4000 nautical miles Speed ??22.

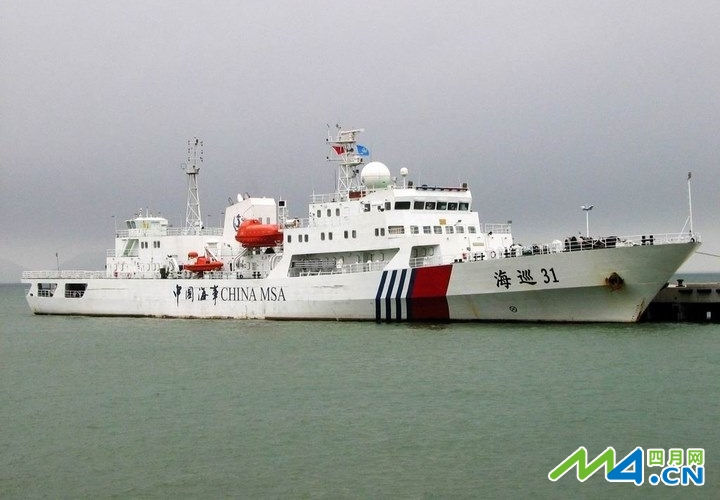

	Coast Guard Marine Systems 31 is the first ship to have a helicopter landing platform, helicopter flight control tower and other libraries, and a full set of Coast Guard ship shipboard systems, but also our own design and construction of the first ship non-military vessels equipped with helicopters library. The ship with a displacement of 3000 tons, the host of imported inline four-stroke marine diesel engine, the maximum speed of more than 22. At 18 speed, following the Air Force 6000 miles, holding force of up to 40 days.
	Coast Guard 106 is China's first wave-piercing catamaran maritime patrol, in May 2010 formally incorporated into the Shanghai Maritime Bureau Yangshan Port Marine, Water Expo will be put to security tasks, the participation of the water patrol, guard, guardianship and maintenance of water order, perform traffic control and respond to aquatic emergencies.

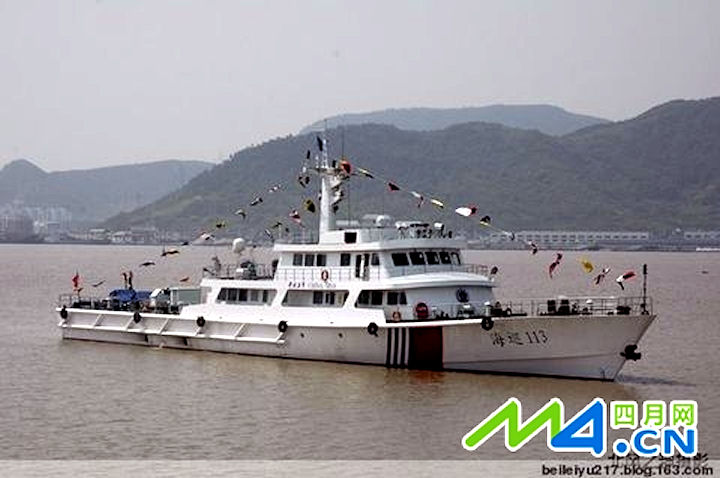

	Coast Guard 113 In July 2005 Zhejiang Maritime Safety Administration "Coast Guard 113" Zhejiang maritime patrol system was the first 60 m class patrol boats, the nation's most advanced medium-sized maritime patrol system. The stern of the boat ramp using sliding retractable system work boats, work boats make oblique sliding rapid decline and recovery of the mother ship sailing under the state to achieve the shortest possible time and to persons in distress at sea implement regulatory relief, greatly improved work efficiency and search and rescue success rate. Ship designed by a research institute of China Shipbuilding Industry Corporation, Guangzhou Huangpu Shipyard construction. "Coast Guard 113 'length of 61.2 meters, 9.2 meters wide, full load displacement of 470 tons, wind resistance 9, maximum speed up to 25, you can perform seven days and nights in a row, the tail boat ramp specially designed work boats retractable sliding system can work in the mother ship sailing boat, moored or rapid decline and recovery at night without lighting conditions. Meanwhile, the vessel is also equipped with a black box, video surveillance systems, detection systems and other common computer cabin boats no advanced equipment. 60 m level into use after the patrol, sea cruises will expand coverage and improve the system in the coastal marine area offshore patrol enforcement capacit
