On February 11th, 1970, Japans first satellite, OHSUMI, was put into orbit by the L-4S launch vehicle. The L-4S was succeeded by the Mu model series, which evolved from the first model, M-4S, to M-3C, M-3H, M-3S, M-3SII into the latest model, M-V, which enjoys a reputation as one of the major launch vehicles.

The Mu model series are solid propellant rockets. This series has shaped the history of the launch vehicle for scientific satellites in Japan and has played an indispensable part in the space probe program through its observation of supernovae, aurora, and Haleys Comet. M-V has contributed to the development of X-ray astronomy and infrared astronomy, and has also been used for the exploration of the solar system, a project commonly known as planetary exploration or the moon probe.

To keep up with the increasing demand on payload capability and to enable interplanetary missions anticipated in the late 1990s and beyond the year 2000, ISAS has initiated the M-V Iauncher development, a 3-stage, solid-propellant system capable of lifting 1.8 metric tons into a LEO of 250 km, It had more than three times the launch capability of the M-S and enables missions to Mars, Venus, asteroids and beyond. It is the largest solid propellant rocket ever built in Japan and combines ISAS up-to-date results on solid propellant propulsion system, new light-weight materials and structures, flight control and guidance, aerodynamics. avionics. and others. Using M-V in this way, ISAS expanded its observation and exploration envelope and these missions are expected to open a new Japanese space science era and to yield better understanding of the solar system in the coming ten years and beyond.

The first flight was planned for 1996 for launching the MUSES-B satellite into an elliptic orbit for VLBI (Very Long Base Interferometry) for radio astronomy. The second mission was to send the spacecraft LUNAR-A to the Moon for the purpose shooting three penetrators into the lunar surface. The third was to launch the PLANET-B Mars orbiter designed primarily to observe the geomagnetic field around Mars. The next was a satellite named ASTRO-E for the continuing X-ray astronomy program. These four missions were planned within the century. One mission was approved for shortly after the turn of the century, which was a challenging asteroid sample return mission named MUSES-C.

The main aims of new technology in the M-V were:

  1. HT-230M high-strength steel for the first and second stage motor cases,
  2. Interstage structure between 1st and 2nd stages corresponds to FIH (fire in the hole) separation system,
  3. CFRP motor cases for the third and kick stages to realize lighter weight,
  4. extendable nozzles for the third and kick stages,
  5. nose fairing opening mechanism, and FOG (fiber optical gyro) to sense vehicle attitude.

The inaugural flight of the new M-5 was delayed until 1997, primarily due to technical difficulties. On 21 June 1994 the M-5 first stage motor was successfully tested at ISAS' Noshiro rocket testsite, and another test with a flight-design model was slated for 1995. Plans to employ extendable motor nozzles on both the second and third stages were scaled back to only the third-stage. Produced jointly by Nissan (motors and fairing) and Mitsubishi Heavy Industries, the M5 will permit ISAS to undertake more ambitious scientific missions, particularly beyond Earth orbit (References 118-124).

For their role in successful missions including planetary explorations, M-V rockets were highly praised as the best solid-propellant rockets in the world. However, after the launch of M-V-7 in September 2006, production of the M-V series was discontinued due to cost concerns. it was replaced by the Epsilon, a three-stage solid-fuel rocket that builds on existing Japanese rocket technology: an H-IIA solid rocket booster in the first stage, and two upper stages based on those used in the discontinued M-V launch vehicle. Epsilon's first flight was expected to cost $38 million (3.8 billion yen) almost half the $75 million (7.5 billion yen) cost for M-V.

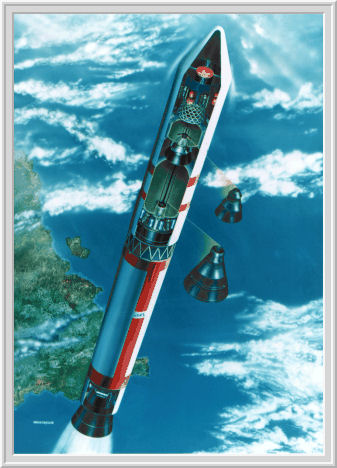

Description of the M-V-7 vehicle

    1st stage 2nd stage 3rd stage
Dimensions Total length m 30.8 17.2 8.82 (with nozzle extended)
Diameter m 2.5 2.5 2.2
Stage mass at ignition t 138 52.2 13.1
Solid rocket motor Motor name   M-14 M-25 M-34
Length m 13.73 6.61 3.61/4.29
Diameter m 2.5 2.5 2.2
Case material   HT-230M
Propellant   BP-204J BP-208J BP-205J
Mass (fuel included) t 83 36 12
Propellant mass t 72 33 11
Average vacuum thrust kN 3800 1530 327
Effective burning time Sec  51 61 97
Vacuum specific impulse Sec 274 289 300
