Titan IV Configurations

  • 401: Centaur Upper Stage
    • Lift Specification:
      10,000 lbs with SRM,
      12,700 lbs with SRMU
    • Orbit: GeoSynchronous
    • Payload fairing options: 66ft, 76ft, and 86ft
  • 402: Inertial Upper Stage
    • Lift Specification:
      38,780 lbs with SRM,
      47,000 lbs with SRMU
    • Orbit: Polar
    • Payload fairing options: 56ft
  • 403: No Upper Stage
    • Lift Specification:
      39,100 lbs with SRM,
      47,800 lbs with SRMU
    • Orbit: Low Earth
    • Payload fairing options: 56ft and 66ft
  • 404: No Upper Stage
    • Lift Specification:
      31,100 lbs with SRM,
      38,800 lbs with SRMU
    • Orbit: Low Earth
    • Payload fairing options: 56ft and 66ft
  • 405: No Upper Stage
    • Lift Specification:
      29,600 lbs with SRM,
      36,700 lbs with SRMU
    • Orbit: Low Earth
    • Payload fairing options: 50ft

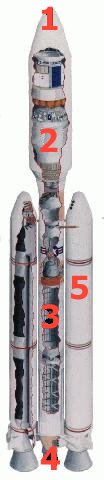

1. Payload Fairing


2a. Centaur Upper Stage:
Config SS-ELV-401


2b. Inertial Upper Stage (IUS):
Config SS-ELV-402


2c. No Upper Stage (NUS):
Config SS-ELV-403/404/405


3. Core Vehicle


4. Liquid Rocket Engine


5. Solid Rocket Motor
