Military


Cargo Aircraft Compared

  • Bulk cargo is air cargo that fits with the dimensions of a 436L pallet and the design height of 96".
  • Oversized cargo is too big for an 463L pallet but can fit inside a C-130 or C-141 cargo plane.
  • Outsized cargo is too big for a C-130 but can fit inside a C-5 or C-17.

Heavy Outsized Cargo Aircraft

Aircraft C-17
Globemaster III
C-5B
Galaxy
AN-124
Condor
AN-22
Cock
Payload [tonnes-t]
76 120 150
Range with payload [km @ t]
4445 km @ 72.6 t 5200 km @ 120 t 5030 km @ 120 t
8149 km @ 18.2 t 11000 km @ 40 t 10960 km @ 40 t
External Dimensions
Length [m] 53.0 75.53 69.1
Height [m] 16.8 19.84 21.08
Wings [m] 51.7 67.91 73.3

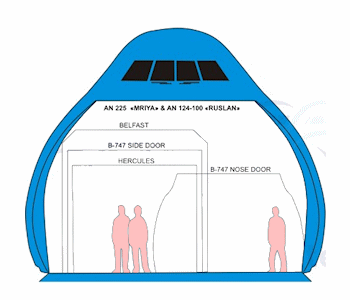

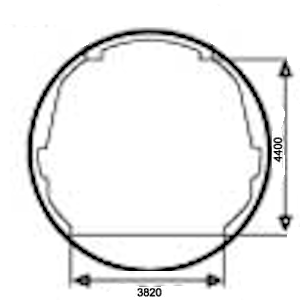

Internal Dimensions
Length [m] (incl. ramp) 26.8 44.07 36.5
Length [m] (excl. ramp) 20.8 36.91 ..
Height [m] 3.7 4.11 4.4
Width [m] 5.5 5.79 6.4
