River / St. Laurent / Restigouche / Mackenzie
DDE destroyer escorts / DDH helicopter destroyers
|

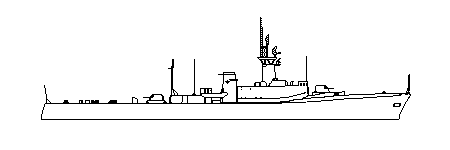

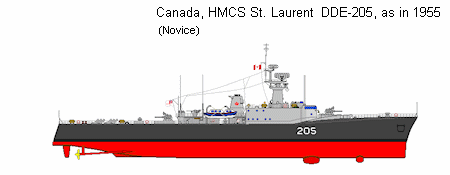

As Built Specifications (DDE) |
|

|
|
|
Displacement:
|
2,800 tons full load |
|
Dimensions:
|
111.56 x 12.80 x 3.96 meters (366 x 42 x 13 feet) |
|
Propulsion:
|
2 shafts, 2 Babcock & Wilcox water tube boilers, 30,000 shp, 28 knots |
|
Crew:
|
249 |
|
Radar:
|
SPS-10 surface search, SPS-12 air search |
|
Sonar:
|
SQS-501, SQS-502, SQS-503, SQS-504 (varied) hull |
|
Fire Control:
|
2 SPG-48 directors (on gun mounts) |
|
Armament:
|
2 3"/50 Mk.33 FMC twin mounts, 2 40mm Bofors single (except for FRASER, MARGAREE, and SAGUENAY), 2 Mk NC 10 Limbo ASW mortars, homing torpedoes |
|

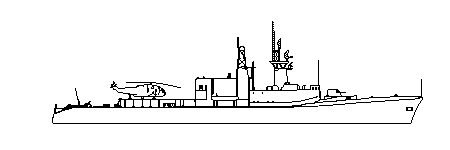

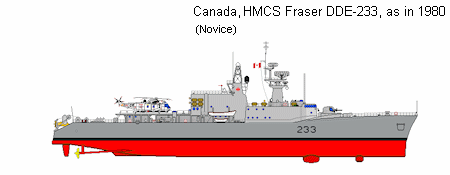

As Modernized Specifications (DDH with DELEX) |
|

|
|
| Displacement: | 3,051 tons full load |
|
Dimensions:
|
111.56 x 12.80 x 3.96 meters (366 x 42 x 13 feet) |
|
Propulsion:
|
2 shafts, 2 Babcock & Wilcox water tube boilers, 30,000 shp, 28 knots |
|
Crew:
|
249 |
|
Aviation:
|
midships helicopter deck with Beartrap; 1 CH-124 Sea King helicopter |
|
Hangar:
|
one for one CH-124 |
|
Radar:
|
Sperry Mk.127E navigation, SPS-12B air search, SPS-10D surface search |
|
Sonar:
|
SQS-501, SQS-502, SQS-503, SQS-504 (varied) hull, SQS-500 towed. |
|
Fire Control:
|
1 SPG-48 director (on gun mount) |
|
Armament:
|
1 3"/50 Mk.33 FMC twin mount, 1 Mk NC 10 Limbo ASW mortar, 2 triple Mk.32 12.75 inch torpedo tubes firing Mk.44 and Mk.46 Mod 5 torpedoes. |
|
