FM 34-45: Tactics, Techniques, and Procedures for Electronic Attack

Appendix D

Message Formats

The three message types that must used in conjunction with EA are MATM (Figure D-1), MAER (Figure D-2), and MASTR (Figure D-3). These formats will vary with equipment, either voice or datalink.

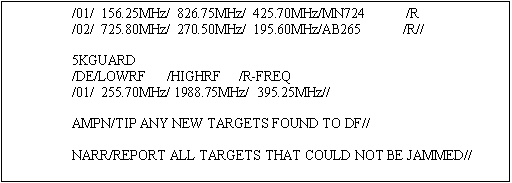

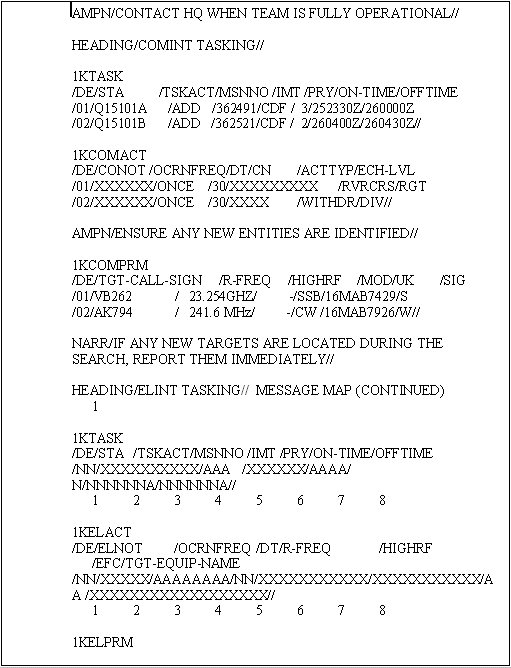

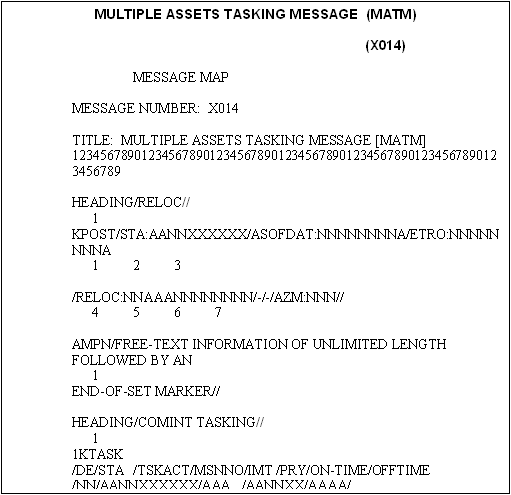

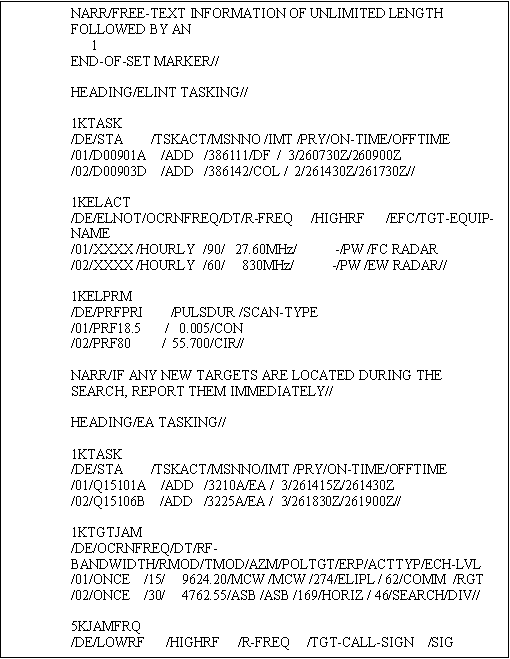

Figure D-1. Example of an MATM


Figure D-1. Example of an MATM (continued)


Figure D-1. Example of an MATM (continued)

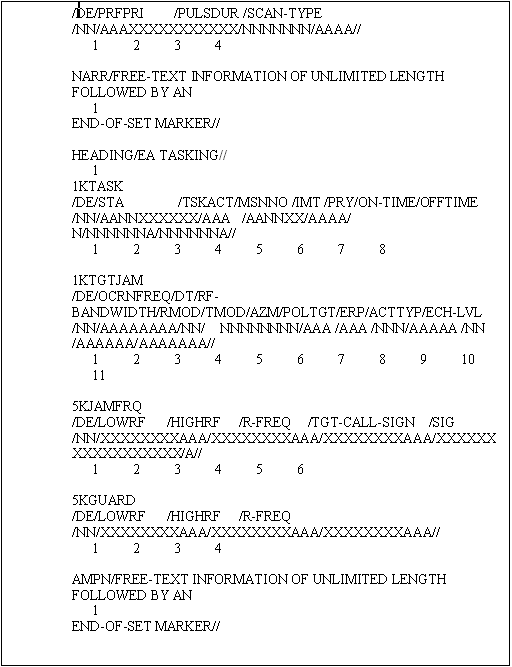

Figure D-1. Example of an MATM (continued)


Figure D-1. Example of an MATM (continued)


Figure D-1. Example of an MATM (concluded)

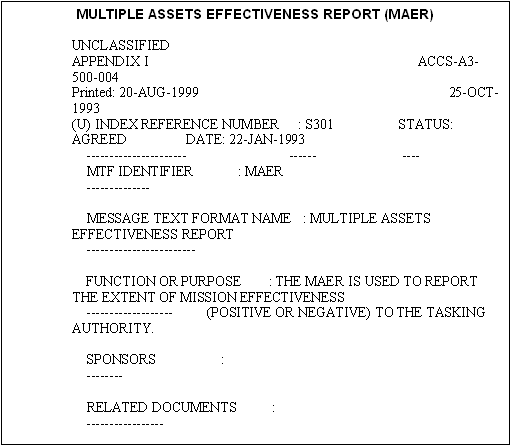

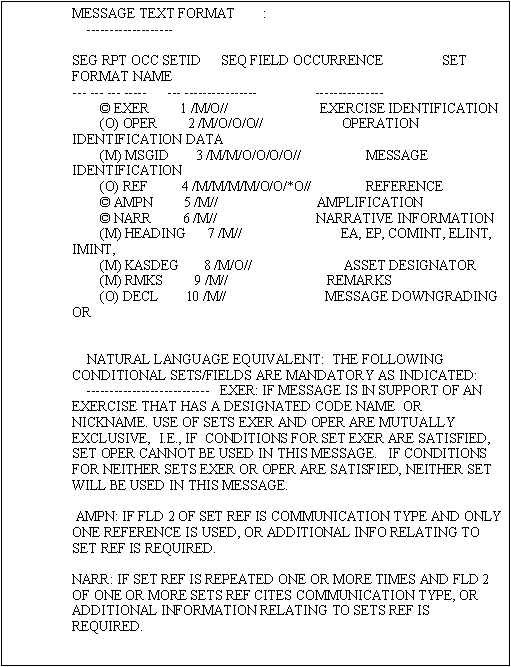

Figure D-2. Example of an MAER


Figure D-2. Example of an MAER (continued)


Figure D-2. Example of an MAER (concluded)

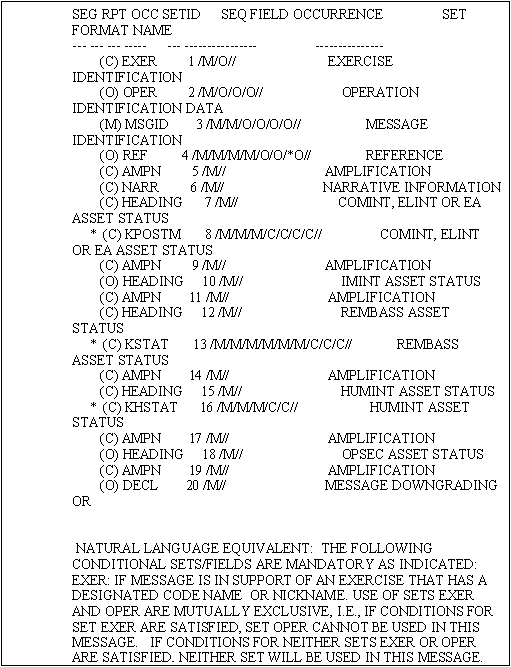

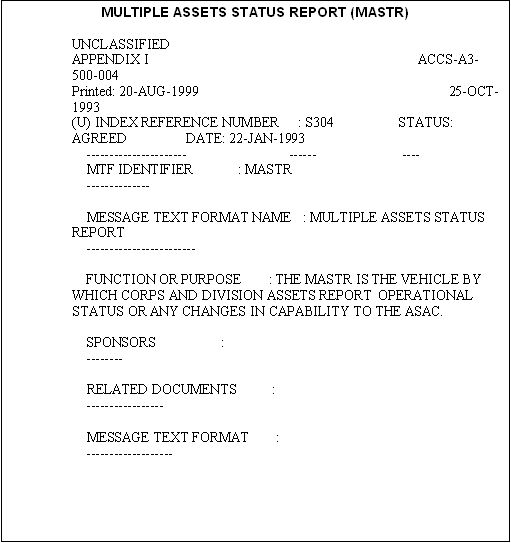

Figure D-3. Example of an MASTR


Figure D-3. Example of an MASTR (concluded)
