Tactical Quiet Generators

Changing requirements and maintainability problems with the MIL STDs led to a need for generators with greater mobility, improved reliability/maintainability, enhanced survivability (e.g., Electro - Magnetic Pulse (EMP)), reduced infrared and acoustic signatures and lower acquisition and operation and support (O&S) costs.

Thus in 1988 and 1989 the PM developed and released purchase descriptions for a new family of generators -- the Tactical Quiet Generators (TQG)s. Libby Corporation won the contract to develop the 5-60kW generators, and Fermont Division the 3kW TQG. In December 1993 the 5-60kW sets first entered service at Fort Bragg, NC in the 82nd Airborne Division, and fielding has continued ever since. Because the contractor was unable to meet the overly stringent performance requirements, the 3kW contract was terminated in February 1995. A replacement program began in February, 1996.

The Tactical Quiet Generators (TQGs) are the latest generation of military generators for use by the Armed Forces. They were developed in response to the changing military threats, new strategies, and fiscal constraints which dictated improved battlefield survivability, enhanced deployment/maintainability and reduced operating and support costs. These military generators use predominantly commercial components, and provide a "Quantum Leap" in performance for the Standard Family of DoD Generators.

The TQGs are skid or trailer mounted generator sets, are "single-fuel" compliant (operate on diesel/JP fuels), have radically improved survivability, mobility, reliability and maintainability (see the benefits chart). Noise has been reduced to 70 dbA or less, quiet enough to reduce detection ranges from over a mile to less than 400 meters. The sets are undetectable from the front and sides by ground or airborne FLIR. Weight and size has been reduced by 20%, improving mobility and deployment. Significant improvements (16-19%) were made in maintainability (MTBF) and serviceability (PMCS) -- reducing both cost and manpower support costs. Finally, reliability has improved by over 100%. Moreover, they have reduced overall life cycle costs through reduced acquisition costs, lower fuel consumption and reduce O&S costs. Actual sample data collection from fielded sets indicates an average Operational Readiness (OR) rate of 96-99% (depending on size). In Haiti, even under extreme operating and environmental conditions the new TQGs achieved an 89% readiness rate -- orders of magnitude better than the old MIL STDs.

Battlefield survivability has been markedly improved by reducing noise by 80%, virtually eliminating IR signatures, and by hardening them against Electromagnetic Pulse (EMP) effects. Mobility has been enhanced by reducing weight and size, and maintainability/support has been improved by doubling reliability which reduces Operations and Support (O&S) costs.

Additional funding placed in the Army power generation budget over the FY99-01 timeframe has helped to stem the continual aging of the fleet. However, considerably more funding will be necessary to reverse the aging of the fleet and accelerate the fielding completion.

As of mid-2001, winterization kits for the 5-60kW Tactical Quiet Generator (TQG) Family was under development. These kits will be available to units that require power in climates -25 deg F or below. Units will requisition individual kits by NSN and (kW) size. NSN assignment expected 4th QTR FY 99. Kit availability was expected for the 1st QTR of FY00.

Fielding of the 5 through 60kW generators began in December 1993. TQGs have been purchased and fielded by the Army, Air Force, Marine Corps, and several Allied Nations.

Type Nomenclature Model # Length Width Height Applications
3kW TQG DED, 60 Hz MEP-831A 34.8 in. 27.8 in. 26.5 in. Weapon Systems
Missile Systems
Causeway Systems
C4I Systems
DED, 400Hz MEP-832A
5kW TQG 60 Hz TQG 802A 50.4 in. 31.8 in. 36.2 in. Weapon Systems
Missile Systems
Causeway Systems
C4I Systems
400 Hz TQG 812A
10kW TQG 60 Hz TQG 803A 61.7 in. 31.8 in. 36.2 in. Weapon Systems
Missile Systems
Laundry Units
C4I Systems
Refrigeration Systems
400 Hz TQG 813A

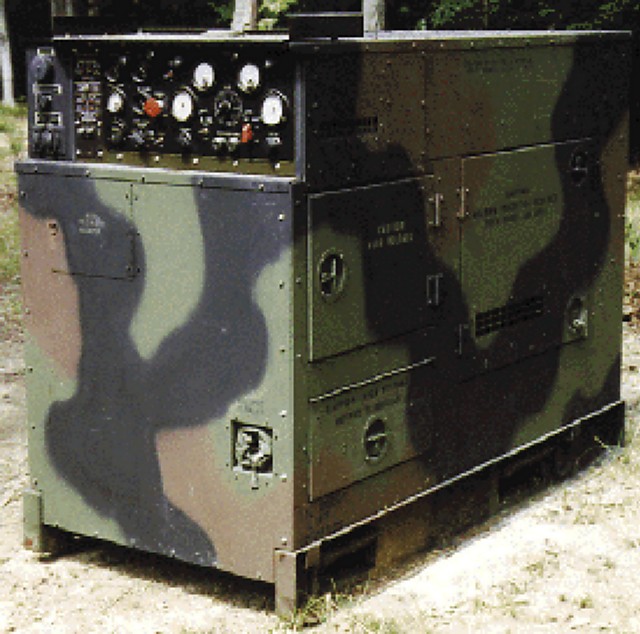

15kW TQG 60 Hz TQG 804A 69.3 in. 35.3 in. 54.1 in. Weapon Systems
Missile Systems
Well Kit, Printing Plants
Topographic Support Systems
C4I Systems
Hospital Maintenance
400 Hz TQG 814A

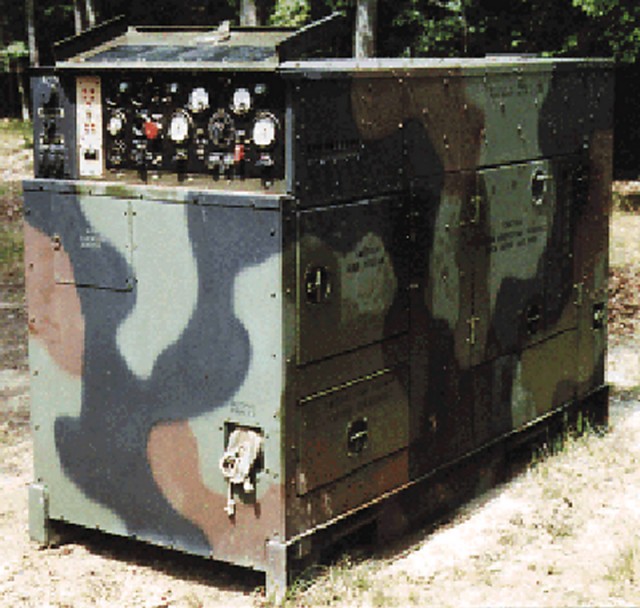

30kW TQG 60 Hz TQG 805A 79.3 in. 35.3 in. 54.1 in. Weapon Systems
Missile Systems
Bakery Plant
ADP Support Systems
Water Purification
C4I Systems
Aviation Shop Sets
400 Hz TQG 815A
60kW TQG 60 Hz TQG 806A 86.3 in. 35.3 in 58.2 in. Weapon Systems
Missile Systems
Earth Satellite Terminals
Field Hospitals/Schools
Aviation Ground Support
400 Hz TQG 816A
