DRAFT

NAVY TRAINING SYSTEM PLAN

FOR THE

MARK-105 MOD 4

MAGNETIC MINESWEEPING SYSTEM

N85-NTSP-P-30-9902/D

APRIL 1999



















EXECUTIVE SUMMARY

This Navy Training System Plan (NTSP) addresses the continuing development and forthcoming introduction of the MARK-105 MOD 4 Magnetic Minesweeping System into the Navy inventory.

The MARK-105 MOD 4 Magnetic Minesweeping System, hereafter referred to as the MK-105 MOD 4, is an upgrade of the MK-105 MOD 2 Magnetic Minesweeping System that is currently used in the Fleet. The system is a remotely controlled, helicopter towed platform used in Airborne Mine Countermeasures. It is designed to provide a reliable and safe method of detonating influence mines. MK-105 MOD 4 System operations can be conducted from aviation-type ships [Amphibious Assault Ship Landing Helicopter Assault (LHA), Amphibious Assault Ship Landing Helicopter Dock (LHD), Mine Countermeasure Support (MCS), Landing Platform Dock (LPD); Amphibious Transport Dock Ship (LSD), and Aircraft Carrier (CV)], ramps, docks, piers, and prepared beaches.

Engineering Change Proposals 105-81 and 105-82 are incorporated when the MOD 2 system goes through Scheduled Depot Level Maintenance, changing its designation from a MK-105 MOD 2 Magnetic Minesweeping System to a MK-105 MOD 4 Magnetic Minesweeping System.

There will be three levels of maintenance for the MK-105 MOD 4, as outlined in the Naval Aviation Maintenance Program, OPNAVINST 4790.2G. Navy personnel from the aviation ratings with Navy Enlisted Classification 8391 will perform organizational and intermediate level maintenance. The manufacturer will perform depot level maintenance. Manpower requirements will remain unchanged by the introduction of the MK-105 MOD 4.

The Performance Support System maintenance and training concept will be incorporated for the MK-105 MOD 4 transition. Airborne Mine Countermeasures squadrons and Aircraft Intermediate Maintenance Departments will be equipped with stand-alone computer systems housing both Interactive Electronic Technical Manuals (IETM) and Computer-Based Training (CBT). The IETM will include appropriate technical information and supply support data to complete maintenance actions on the MK-105 MOD 4. The CBT courses integrated within the Performance Support System will provide the training required for the MK-105 MOD 4 weapon system.

TABLE OF CONTENTS

Page

Executive Summary i

List of Acronyms iii

Preface vi

PART I - TECHNICAL PROGRAM DATA

A. Nomenclature-Title-Program I-1

B. Security Classification I-1

C. Manpower, Personnel, and Training Principals I-1

D. System Description I-2

E. Developmental Test and Operational Test I-2

F. Aircraft and/or Equipment/System/Subsystem Replaced I-2

G. Description of New Development I-2

H. Concepts I-5

I. On-Board (In-Service) Training I-13

J. Logistics Support I-14

K. Schedules I-15

    1. Government Furnished Equipment and Contractor Furnished Equipment

Training Requirements I-16

M. Related NTSPs and Other Applicable Documents I-16

PART II - BILLET AND PERSONNEL REQUIREMENTS II-1

PART III - TRAINING REQUIREMENTS III-1

PART IV - TRAINING LOGISTICS SUPPORT REQUIREMENTS IV-1

PART V - MPT MILESTONES V-1

PART VI - DECISION ITEMS/ACTION REQUIRED VI-1

PART VII - POINTS OF CONTACT VII-1

LIST OF ACRONYMS

AC

Alternating Current

AIMD

Aircraft Intermediate Maintenance Department

AMCM

Airborne Mine Countermeasures

AMIST

Aviation Maintenance In-Service Training

AMTCS

Aviation Maintenance Training Continuum System

AOB

Average On Board



CBT

Computer-Based Training

CIN

Course Identification Number

CINCLANT

Commander In Chief, U.S. Atlantic Fleet

CNET

Chief of Naval Education and Training

CNO

Chief of Naval Operations

COMHELTACWINGLANT

Commander, Helicopter Tactical Wing, U.S. Atlantic Fleet

CSS

Coastal System Station

CV

Aircraft Carrier



DT

Developmental Test



ECP

Engineering Change Proposal

EDO

EDO Corporation, Marine and Aircraft Systems

(Manufacturer and Technical Development Activity)



FMS

Foreign Military Sales

FRAMP

Fleet Replacement Aviation Maintenance Personnel

FRS

Fleet Readiness Squadron

FY

Fiscal Year



IETM

Interactive Electronic Technical Manual

ILS

Integrated Logistics Support

ILSP

Integrated Logistics Support Plan

IPB

Illustrated Parts Breakdown



LHA

Amphibious Assault Ship Landing Helicopter Assault

LHD

Amphibious Assault Ship Landing Helicopter Dock

LPD

Landing Platform Dock

LPH

Amphibious Assault Ship

LSA

Logistics Support Analysis

LSD

Amphibious Transport Dock Ship



MCS

Mine Countermeasure Support

MIW

Mine Warfare

MP

Maintenance Plan

MPT

Manpower, Personnel, and Training

MSD

Material Support Date

MTIP

Maintenance Training Improvement Program



NA

Not Applicable

NAMP

Naval Aviation Maintenance Program

NAMTRAGRU

Naval Air Maintenance Training Group

NAMTRAGRU DET

Naval Air Maintenance Training Group Detachment

NAS

Naval Air Station

NATEC

Naval Air Technical Data and Engineering Service Command

NAVICP

Naval Inventory Control Point

NEC

Navy Enlisted Classification

NTSP

Navy Training System Plan



OPO

Office of the Chief of Naval Operations Principal Official

OT

Operational Test



PEO

Program Executive Officer

PMS

Program Manager, Sea

PQS

Personnel Qualification Standards

PSS

Performance Support System



RFOU

Ready For Operational Use

RFT

Ready For Training

RHIB

Rigid Hull Inflatable Boat

RMR

Return Material for Repair

ROH

Regular Overhaul



SDLM

Scheduled Depot Level Maintenance

SRA

Shop Replaceable Assembly



TBD

To Be Determined

TD

Training Device

TTE

Technical Training Equipment



WRA

Weapon Replaceable Assembly



PREFACE

This is the first iteration of the Draft Navy Training System Plan (NTSP) for the MK-105 MOD 4 Magnetic Minesweeping System. This NTSP has been developed to comply with guidelines set forth in the Navy Training Requirements Documentation Manual, OPNAV Publication P-751-1-9-97.

N85-NTSP-P-30-9902/D

April 1999

PART I - TECHNICAL PROGRAM DATA

A. NOMENCLATURE-TITLE-PROGRAM

1. Nomenclature-Title-Acronym. MK-105 MOD 4 Magnetic Minesweeping System.

2. Program Element. 73SO, LI 424800.

B. SECURITY CLASSIFICATION

1. System Characteristics Unclassified

2. Capabilities Detailed data on the capabilities and limitations of the MK-105 MOD 4 Magnetic Minesweeping System are classified. Information of this nature may be obtained by contacting the Program Executive Officer (PEO) for Mine Warfare (MIW) PMS210.

3. Functions Unclassified

C. MANPOWER, PERSONNEL, AND TRAINING PRINCIPALS

OPNAV Principal Official (OPO) Program Sponsor CNO (N852)

OPO Resource Sponsor CNO (N859)

Developing Agency PEO (MIW) (PMS210)

Training Agency CINCLANTFLT

CNET

Training Support Agency PEO (MIW) (PMS210)

Manpower and Personnel Mission Sponsor CNO (N12)

NAVPERSCOM (NPC-4, NPC 404)

Director of Naval Training CNO (N7)

D. SYSTEM DESCRIPTION

1. Operational Uses. The MK-105 MOD 4 Magnetic Minesweeping System, hereafter referred to as the MK-105 MOD 4, is a remotely controlled, helicopter towed, hydrofoil mounted Airborne Mine Countermeasures (AMCM) System designed to provide a reliable and safe method of detonating magnetic influence mines. System functions are controlled from the helicopter. MK-105 MOD 4 System operations can be conducted from aviation-type ships [Amphibious Assault Ship Landing Helicopter Assault (LHA), Amphibious Assault Ship Landing Helicopter Dock (LHD), Mine Countermeasure Support (MCS), Landing Platform Dock (LPD); Amphibious Transport Dock Ship (LSD), and Aircraft Carrier (CV)], ramps, docks, piers, and prepared beaches.

2. Foreign Military Sales. There are currently no plans for Foreign Military Sales (FMS) of the MK-105 MOD 4.

E. DEVELOPMENTAL TEST AND OPERATIONAL TEST. Developmental Test (DT) and Operational Test (OT) was not required on the MK-105 MOD 4. The MK-105 MOD 4 was the result of two Engineering Change Proposals (ECPs). A Performance and Suitability Evaluation was successfully completed on the prototype by the manufacturer [EDO Corporation World Wide Web: http://www.edocorp.com/)] and Coastal System Station (CSS), Panama City, Florida, in June 1995. A Factory / First Article Test will be completed by EDO Corporation and CSS prior to production go-ahead.

F. AIRCRAFT AND/OR EQUIPMENT/SYSTEM/SUBSYSTEM REPLACED. The MK-105 MOD 4 will replace the MK-105 MOD 2 Magnetic Minesweeping System currently in use.

G. DESCRIPTION OF NEW DEVELOPMENT

1. Functional Description. The MK-105 MOD 4 is an upgrade of the MK-105 MOD 2 Magnetic Minesweeping System. The system is a remotely controlled, helicopter-towed platform used in AMCM. It is designed to provide a reliable and safe method of detonating influence mines. Figure I-1 depicts the MK-105 MOD 4 Seaborne Equipment Platform. The MK-105 MOD 4 functions are controlled from the helicopter. A Turbo Generator mounted on the Seaborne Platform provides the output power required for mission minesweeping. The turbo generator consists of a gas turbine engine, speed reduction gearbox, and alternating current (AC) generator. The AC Generator output is routed to an alternator rectifier subsystem. Electrical current from the alternator-rectifier subsystem flows through a sweep cable array that trails from the hydrofoil platform with seawater completing the electrical circuit. The electrical current produces a magnetic field in the water that detonates magnetic influence mines. To ensure maximum sweep effectiveness and flexibility, the system is designed to produce either a constant or a pulsed current output that is controlled by the Control Programmer located in the helicopter. When an Acoustic Minesweeping device (MK-104) is attached to the magnetic sweep array, the resultant magnetic and acoustic influence field outputs will actuate magnetic and combination magnetic-acoustic influence mines.

2. Physical Description. Physical dimensions and characteristics of the MK-105 MOD 4 System: (See Figure I-1, Table I-1 and Table I-2).

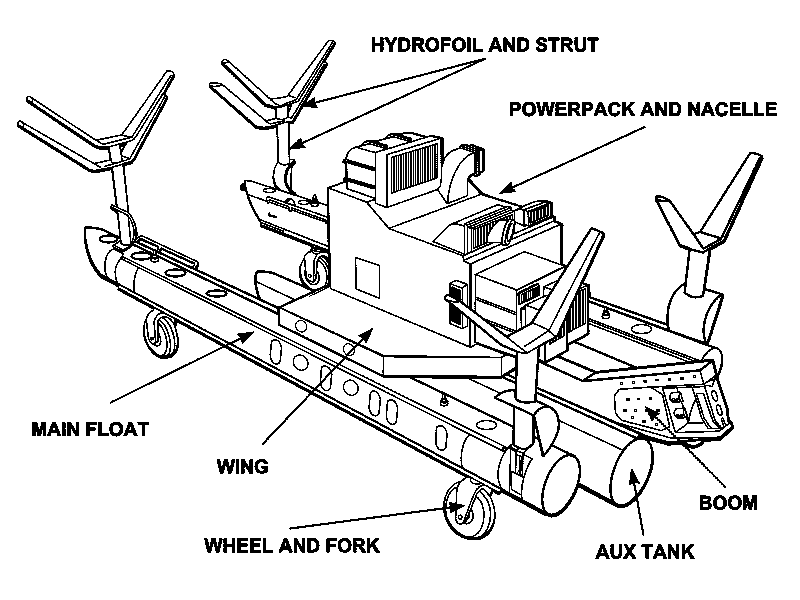

FIGURE I-1. MK-105 MOD 4 SEABORNE EQUIPMENT PLATFORM



TABLE I-1: MK-105 MOD 4 CHARACTERISTICS

DESCRIPTION

CHARACTERISTICS

Foilborne Length

26' 10-5/8"

Ground Configuration Length

28' 9-1/4"

Foilborne Width

21' 1-1/4"

Ground Configuration Width

16' 10"

Foilborne Height (Less Retrieval Rig)

15' 2-1/8"

Ground Configuration Height
(Less Retrieval Rig)

12' 1-1/2"

Net Weight

8360 pounds

Fuel Capacity

1292 pounds (190 gallons)

Usable Fuel

1115 pounds (164 gallons)

Gross Weight

9750 pounds

Max Operational Speed

25 knots

Max Operational Sea State

4

Max Power

350 kilowatts

Max Current

3500 amps



TABLE I-2: MAJOR COMPONENT CHARACTERISTICS FOR THE

MK-105 MOD 4 MAGNETIC MINESWEEPING SYSTEM

NOMENCLATURE

HEIGHT
(INCHES)

WIDTH
(INCHES)

DEPTH
(INCHES)

WEIGHT
(POUNDS)

Main Float Assembly on Wheels

60

30

294

810

Auxiliary Float Assembly

29

26

198

280

Wing Assembly

21

134

112

750

Hydrofoil, Upper

50

89

18

150

Hydrofoil, Lower, Forward

34

88

12

104

Hydrofoil, Lower, Aft

34

88

14

180

Retrieval Rig Installed

124

131

38

350

Retrieval Rig Stowed

12

131

124

350

Airborne Control Programmer

27

43

18

75

Platform Controller

25

18

27

113

Sweep Boom

43

30

129

745

Nacelle and Ducts

73

80

73

428

Aft Bulkhead and Generator Enclosure

47

72

17

146

Power Pack

43

65

97

2436

Gas Turbine Engine

28

22

57

403

AC Generator

19

17

31

475

Speed Reduction Gearbox

24

29

20

244

Tow and Electrical Cables

Length 450 Feet Diameter 2.0 inches



700

Cable Assembly, Magnetic Sweep

System weight 2850 pounds

S-Cable

Length 450 feet, Diameter 3.7 inches

Electrodes

Length 150 feet, Diameter 3.0 inches

Pigtails

2 each

1 each

Length 6 feet, Diameter 2.4 inches, Weight 47.5 pounds

Length 8 feet, Diameter 2.4 inches, Weight 63.0 pounds



3. New Development Introduction. The MK-105 MOD 4 is the result of two modifications to the existing MK 105 MOD 2. ECPs 105-81 and 105-82 are incorporated when the MK-105 MOD 2 goes through Scheduled Depot Level Maintenance (SDLM) changing its designation from the MK-105 MOD 2 Magnetic Minesweeping System to the MK-105 MOD 4 Magnetic Minesweeping System.

4. Significant Interfaces. There will be no significant interfaces with or impacts on other systems, subsystems, or equipment while replacing the MK-105 MOD 2 with the MK-105 MOD 4.

5. New Features, Configurations, or Material. The MK-105 MOD 4 improved features include two additional floats for improved seaworthiness and stability, increased fuel capacity for longer missions, and a larger engine and AC generator to increase the effectiveness of the sweep cable magnetic field against magnetic mines.

H. CONCEPTS

1. Operational Concept. The MK-105 MOD 4 is launched or recovered from various surface ships, (LHA, LPH, LPD, MCS, CV, etc) ramps, docks, and improved beaches utilizing ground and Rigid Hull Inflatable Boat (RHIB) support personnel. The MK-105 MOD 4 is towed and remotely operated from an AMCM configured MH-53E helicopter manned by two pilots and four crewmembers. Tow of the MK-105 MOD 4 can be transferred between two AMCM configured helicopters to increase time on station. System tow can also be transferred from the helicopter to suitably equipped ships to enhance retrieval flexibility.

2. Maintenance Concept. The maintenance concept for the MK-105 MOD 4 is based on the three levels of maintenance per the Naval Aviation Maintenance Program, OPNAVINST 4790.2G.

a. Organizational. Organizational maintenance actions are normally performed by an operating unit on a day-to-day basis in support of its own operations. These actions are generally classified as inspections, servicing, handling, and on-equipment corrective maintenance. Personnel from the aviation maintenance ratings with Navy Enlisted Classification (NEC) code 8391 perform organizational level maintenance.

WORK CENTER

RATING

NEC

16A

AD, AMH, AMS

8391

16B

AE, AT

8391

(1) Preventive Maintenance. Preventive Maintenance includes scheduled maintenance consisting of pre-operational and post-operational inspections, operational readiness testing, and corrosion control. Corrosion control is the major preventive maintenance effort.

(2) Corrective Maintenance. Corrective Maintenance is limited to minor flight line repairs including replacement of faulty consumables, troubleshooting, and removal and installation of Weapons Replaceable Assemblies (WRAs). Faulty WRAs will be sent to the Aircraft Intermediate Maintenance Department (AIMD) for repair.

b. Intermediate. AE and AT personnel with NEC 8391 from Work Center 74C maintain the MK-105 MOD 4. Intermediate level corrective maintenance consists of isolating and verifying faulty WRAs and replacing faulty Shop Replaceable Assemblies (SRAs). Isolation and verification of faulty WRAs is performed using the Controller Programmer Test Set, 17-15ALM-156-1 and the Controller Test Set, 17-15ALM-157-1 currently onboard in support of the MK-105 MOD 2 Magnetic Minesweeping System. Defective SRAs will be troubleshot using normal shop practices. SRAs beyond the capability of AIMD will be sent to the Depot for maintenance.

WORK CENTER

RATING

NEC

74C

AE, AT

8391

c. Depot. Current planning is for government and designated civilian contractor facilities to perform depot level maintenance. Systems and components will be returned to the depot level under the Return Material for Repair (RMR) program.

d. Interim Maintenance. The contractor will not provide interim maintenance. Currently, fleet maintenance personnel are trained on the MK-105 MOD 2 by Naval Air Maintenance Training Group Detachment (NAMTRAGRU DET). The contractor will provide initial MK-105 MOD 4 training to fleet personnel. Upon completion of this training, existing maintenance personnel will be able to perform all required maintenance on the MK-105 MOD 4.

e. Life-Cycle Maintenance Plan. Regular Overhaul (ROH) for the MK-105 MOD 4 will be provided by a 48-month SDLM cycle conducted at the depot maintenance facility.

3. Manning Concept. The MK-105 MOD 4 will replace the MK-105 MOD 2 Magnetic Minesweeping System; therefore no changes are required to existing billet structures or to available skill levels. Organizational and intermediate level maintenance functions are normally performed by personnel in the Aviation Machinist's Mate (AD), Aviation Electrician's Mate (AE), Aviation Structural Mechanic (Structures and Hydraulics) (AMS/AMH), and Aviation Electronics Technician (AT) ratings. Tactical Ground Support functions are performed by personnel in various ratings.

4. Training Concept. The Performance Support System (PSS) (Figure I-2) maintenance and training concept will be incorporated for the MK-105 MOD 4 transition. AMCM squadrons and AIMDs are equipped with stand-alone computer systems housing both Interactive Electronic Technical Manuals (IETMs) and Computer-Based Training (CBT). Each AMCM squadron is outfitted with four PSS systems, and each AIMD with three. The MK-105 MOD 4 transition software will be installed into these existing systems upon site activation. The IETMs will include appropriate technical information and supply support data to complete maintenance actions. The CBT courses integrated within the PSS will provide the training required for the MK-105 MOD 4. The training program will consist of ten courses. Seven courses pertain to MK-105 MOD 4 organizational level maintenance and three courses pertain to MK-105 MOD 4 intermediate level maintenance. These courses are rating and work center specific. Each course contains CBT lessons targeting specific actions required to operate, launch, and maintain the MK-105 MOD 4.

Instructional material for the organizational and intermediate level CBT is currently under development. Materials include the CBT lessons, instructor guides, and student guides. These materials, in conjunction with a delivered operational MK-105 MOD 4 and required support equipment, will be used to provide fleet training.

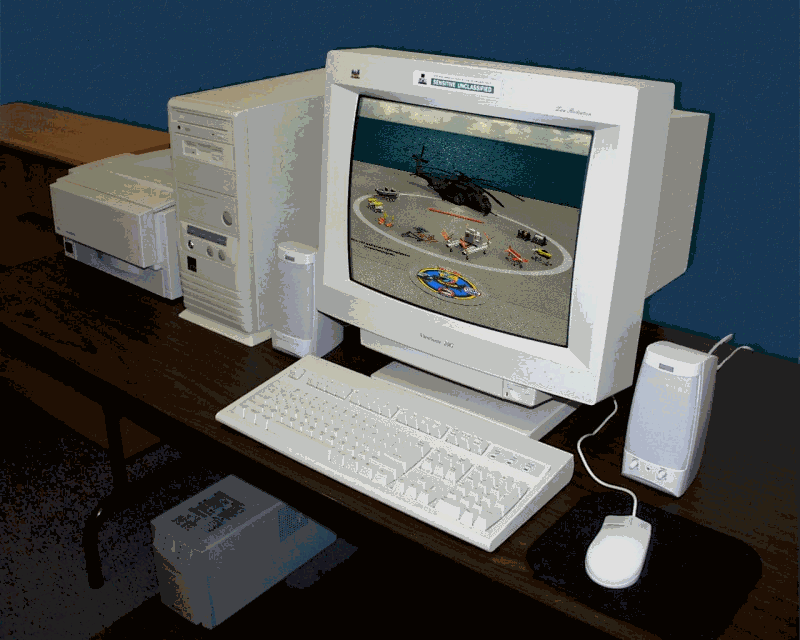

Figure I-2. Performance Support System

    1. Initial Training. Current plans call for initial training for both organizational and intermediate level maintenance to be conducted through contractor support. Upon site activation, contractor support personnel will provide six weeks of training utilizing the CBT courses within the PSS and hands-on training utilizing an operational MK-105 MOD 4 and associated support equipment.

Title

MK-105 MOD 4 Initial (Introduction) Organizational Level Maintenance Course

Description

First degree organization level maintenance training on the MK-105 MOD 4 Magnetic Minesweeping System for instructors and cadre maintenance personnel.

Location

AMCM Activity

Length

2 days (estimated)

RFT date

FY00

TTE/TD

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites

AD, AE, AMH, AMS, and AT with NEC 8391

Title

MK-105 MOD 4 Structures and Hydraulic Systems
Organizational Level Maintenance Course

Description

Provides instructor and cadre maintenance personnel with the skills, knowledge, and techniques required to perform organization level structures and hydraulic systems operation and maintenance on the MK-105 MOD 4 Magnetic Minesweeping System.

Location

AMCM Activity

Length

4 days (estimated)

RFT date

FY00

TTE/TD

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites

AMS or AMH with NEC 8391
MK-105 MOD 4 Initial Organizational Level Maintenance Course

Title

MK-105 MOD 4 Electrical Systems Organizational Level Maintenance Course

Description

Provides instructor and cadre maintenance personnel with the skills, knowledge, and techniques required to perform organization level electrical systems operation and maintenance on the MK-105 MOD 4 Magnetic Minesweeping System.

Location

AMCM Activity

Length

4 days (estimated)

RFT date

FY00

TTE/TD

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites

AE and AT with NEC 8391
MK-105 MOD 4 Initial Organizational Level Maintenance Course

Title

MK-105 MOD 4 Power Plant Systems Organizational Level Maintenance Course

Description ..........

Provides instructor and cadre maintenance personnel with the skills, knowledge, and techniques required to perform organizational level power plant systems operation and maintenance on the MK-105 MOD 4 Magnetic Minesweeping System.

Location ..............

AMCM Activity

Length .................

4 days (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AD with NEC 8391
MK-105 MOD 4 Initial Organizational Level Maintenance Course

Title

MK-105 MOD 4 Launch and Recovery Course

Description ..........

Provides instructor and cadre maintenance personnel with the skills, knowledge, and techniques required to perform launch and recovery of the MK-105 MOD 4 Magnetic Minesweeping System.

Location ..............

AMCM Activity

Length .................

2 days (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AD, AE, AMH, AMS, and AT with NEC 8391
MK-105 MOD 4 Initial Organizational Level Maintenance Course





Title

MK-105 MOD 4 Sled Captain Course

Description ..........

Provides instructor and cadre maintenance personnel with the skills, knowledge, and techniques required to perform sled captain duties and responsibilities on the MK-105 MOD 4 Magnetic Minesweeping System.

Location ..............

AMCM Activity

Length .................

3 days (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AD, AE, AMH, AMS, and AT with NEC 8391
MK-105 MOD 4 Initial Organizational Level Maintenance Course



Title

MK-105 MOD 4 Aircraft Rig / Derig Course

Description ..........

Provides personnel with the skills, knowledge, and techniques required to properly install and uninstall the MK-105 MOD 4 Magnetic Minesweeping System related mission equipment for the MH-53E aircraft.

Location ..............

AMCM Activity

Length .................

1 day (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AD, AE, AMH, AMS, and AT with NEC 8391



Title

MK-105 MOD 4 Hydraulic Components Intermediate Level Maintenance Course

Description ..........

Provides personnel with the skills, knowledge, and techniques required to perform intermediate level test and maintenance procedures on hydraulic components for the MK-105 MOD 4 Magnetic Minesweeping System.

Location ..............

Applicable AIMD Activity

Length .................

2 days (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AMH with NEC 8391



Title

MK-105 MOD 4 Electrical Components Intermediate Level Maintenance Course

Description ..........

Provides personnel with the skills, knowledge, and techniques required to perform intermediate level test and maintenance procedures on electrical components for the MK-105 MOD 4 Magnetic Minesweeping System.

Location ..............

Applicable AIMD Activity

Length .................

4 days (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AE or AT with NEC 8391



Title

MK-105 MOD 4 Engine and Fuel Electrical Components Intermediate Level Maintenance Course

Description ..........

Provides personnel with the skills, knowledge, and techniques required to perform intermediate level test and maintenance procedures on engine and fuel electrical components for the MK-105 MOD 4 Magnetic Minesweeping System.

Location ..............

Applicable AIMD Activity

Length .................

4 days (estimated)

RFT date .............

FY00

TTE/TD ..............

Note: Due to no dedicated MK-105 MOD 4 training devices, course length is directly dependent on the availability of MK-105 MOD 4 operational assets to be used for hands-on training in conjunction with CBT.

Prerequisites ........

AE or AT with NEC 8391

b. Follow-on Training. Follow-on training for organizational and intermediate levels of maintenance will be accomplished by using an operational MK-105 MOD 4, along with the PSS, which combines IETMs and CBT. The courses listed in initial training are provided within the PSS. Training Petty Officers and/or subject matter experts within each applicable work center will administer the follow-on training. Short training lesson segments will also be integrated within the IETMs. This will complement the overall training effort by providing targeted refresher or "Just-In-Time" training to personnel on critical maintenance procedures. The PSS will be located within applicable work centers and provide personnel with direct access to both maintenance instructions and training whenever required. The PSS is also a portable computer system that can be packed up in furnished isopods and transported during squadron deployments.

c. Student Profiles

SKILL IDENTIFIER

PREREQUISITE

SKILL AND KNOWLEDGE REQUIREMENTS

AD 8391

  • C-601-2011, Aviation Machinist's Mate Common Core Class A1
  • C-601-2012, Aviation Machinist's Mate Helicopter Fundamentals Strand Class A1

AE 8391

  • C-100-2020, Avionics Common Core Class A1
  • C-602-2039, Aviation Electrician's Mate O Level Strand Class A1

AMH, AMS 8391

  • C-603-0175, Aviation Structural Mechanic (Structures and Hydraulics) Common Core Class A1
  • C-603-0176, Aviation Structural Mechanic (Structures and Hydraulics) Organizational Intermediate Level Maintenance Strand Class A1

AT 8391

  • C-100-2020, Avionics Common Core Class A1
  • C-100-2018, Avionics Technician O Level Class A1

d. Training Pipelines. No new training pipelines or tracks are required.

I. ON-BOARD (IN-SERVICE) TRAINING. MK-105 MOD 4 CBT will be incorporated into the PSS at each applicable AMCM squadron and AIMD. Existing MK-105 MOD 2 Personnel Qualification Standards (PQS) and Maintenance Training Improvement Program (MTIP) requirements will be reviewed and modified to reflect the MK-105 MOD 4 system by Commander, Helicopter Tactical Wing, U.S. Atlantic Fleet (COMHELTACWINGLANT), Naval Air Station (NAS) Oceana Air Det Norfolk, Virginia.

1. Proficiency or Other Training Organic to the New Development. Proficiency training for the MK-105 MOD 4 will be provided through managed on-the-job training at each applicable command. On-board training will be consistent with qualitative assessment by MTIP.

a. Maintenance Training Improvement Program. The Maintenance Training Improvement Program (MTIP) is used to establish an effective and efficient training system responsive to fleet training requirements. MTIP is a training management tool that, through diagnostic testing, identifies individual training deficiencies at the organizational and intermediate levels of maintenance. MTIP is the comprehensive testing of one's knowledge. It consists of a bank of test questions managed through automated data processing. The Deputy Chief of Staff for Training assisted in development of MTIP by providing those question banks (software) already developed by the Navy. MTIP was implemented per OPNAVINST 4790.2 series. MTIP allows increased effectiveness in the application of training resources through identification of skills and knowledge deficiencies at the activity, work center, or individual technician level. Refresher training is concentrated where needed to improve identified skill and knowledge shortfalls. (MTIP will be replaced by Aviation Maintenance In-Service Training (AMIST) in FY00.

b. Aviation Maintenance In-Service Training. Aviation Maintenance In-Service Training (AMIST) is intended to support the Fleet training requirements now satisfied by MTIP, and in that sense is the planned replacement. However, it is structured very differently, and will function as an integral part of the new Aviation Maintenance Training Continuum System (AMTCS) that will replace the existing aviation maintenance training structure. AMIST will provide standardized instruction to bridge the training gaps between initial and career training. With implementation of AMIST, technicians will be provided the training required to maintain a level of proficiency necessary to effectively perform the required tasks to reflect career progression. AMIST will begin when funding becomes available in FY00.

c. Aviation Maintenance Training Continuum System. AMTCS will redesign the aviation training process (training continuum), and introduce CBT throughout the Navy technical training process. The application and adoption of recent advances in computer hardware and software technology will enable CBT, with its basic elements of Computer Managed Instruction, Computer Aided Instruction, and Interactive Courseware, to be integrated into the training continuum and provide essential support for standardizing technical training.

2. Personnel Qualification Standards. Existing MK-105 MOD 2 Personnel Qualification Standards (PQS) requirements will be reviewed and modified to reflect the MK-105 MOD 4 system by COMHELTACWINGLANT.

3. Other On-Board or Inservice Training Packages. None.

J. LOGISTICS SUPPORT

1. Manufacturer and Contract Numbers

CONTRACT NUMBER



MANUFACTURER



ADDRESS

N00024-96-C-6332

EDO Corporation, Marine and Aircraft Systems (CAGE/FSCM Code 82340)

1500 New Horizons Boulevard, North Amityville, NY 11701-1130 http://www.edocorp.com/

2. Program Documentation. Technical Systems Integration, Inc. is tasked with providing the required Integrated Logistics Support Plan (ILSP) and Maintenance Plan (MP) for the MK-105 MOD 4. The draft ILSP was submitted in September 1998 with the final due in April 1999. A completed draft MP will be submitted in June 1999 with the final due in July 1999. An Operational Logistic Support Summary (OLSS) will not be developed.

3. Technical Data Plan. Appropriate technical information and supply support data to complete necessary organizational and intermediate level maintenance actions on the MK-105 MOD 4 will be developed as IETMs and be included in the PSS. The PSS is a computer system that includes appropriate maintenance actions IETMs and CBT required to maintain a specific weapons system to the level specified. The MK-105 MOD 4 PSS is being prepared to support both organizational and intermediate levels of maintenance. The PSS will be located within applicable work centers and provide personnel with direct access to maintenance instructions and quality training. The final PSS will incorporate changes as a result of a verification with Fleet representatives. Reference element IV.B.3 within this NTSP for applicable IETMs.

4. Test Sets, Tools, and Test Equipment. The following MK-105 MOD 2 Test Sets will be modified for use on the MK-105 MOD 4:

    • Controller Test Set AN/ALM-157 (P/N 80670-1)
    • Control Programmer Test Set AN/ALM-156 (P/N 80671-1)
    • Generator Set Test Set AN/ALM-158 (P/N 80672-1)
    • Platform Electronics Test Set AN/ALM-159 (P/N 80673-1

5. Repair Parts. Repair Parts are listed in the MK-105 MOD 4 MP currently being developed by EDO Corporation with an expected delivery date of June 1999. Material Support Date (MSD) is projected for September 2002. Navy support date is To Be Determined (TBD).

6. Human Systems Integration. Not applicable (NA)

K. SCHEDULES

1. Schedule of Events

a. Installation and Delivery Schedules. No installation required. A specific delivery schedule to the fleet has yet to be determined. The activities to receive the MK-105 MOD 4 are as follows:

    • HM-14
    • HM-15
    • CSS, Panama City, Florida

b. Ready For Operational Use Schedule. Upon delivery and after an acceptance inspection, the MK-105 MOD 4 is ready for Operational Use.

c. Time Required to Install at Operational Sites. NA

d. Foreign Military Sales and Other Source Delivery Schedule. NA

e. Training Device and Delivery Schedule. No dedicated training equipment or devices are planned at this time. The operational MK-105 MOD 4, along with the PSS, will serve as the training equipment. The PSS will be prepared to include IETMs and CBT to support organizational and intermediate levels of maintenance. Short training lesson segments will also be integrated within the IETMs.

L. GOVERNMENT FURNISHED EQUIPMENT AND CONTRACTOR FURNISHED EQUIPMENT TRAINING REQUIREMENTS. NA

M. RELATED NTSPs AND OTHER APPLICABLE DOCUMENTS

DOCUMENT

OR NTSP TITLE

DOCUMENT

OR NTSP NUMBER

PDA

CODE

STATUS

Integrated Logistics Support Plan

EDO Report Number 15476

PMS210

Draft Sep 98

Logistics Support Analysis (301)

EDO Report Number 15477

PMS210

Draft Jan 99

Logistics Support Analysis (401)

EDO Report Number 15478

PMS210

Draft expected May 99

MK-105 MOD 4 Maintenance Plan

EDO Report Number 15473

PMS210

Draft expected Jun 99



NEWSLETTER
Join the GlobalSecurity.org mailing list
